The Trinity Audio Solutions M Series is the perfect subwoofer for the bass head who values clean, tight bass that doesn't sacrifice performance or clarity. The M Series Subwoofers feature high quality cast aluminum high excursion baskets with an optimized air flow design, triple stacked high density ferrite magnets, SPL rated composite paper cones, soft compliance triple layer stretch foam surrounds and a progressive roll spider pack. This combination of features allow a level of performance never seen in this price range.

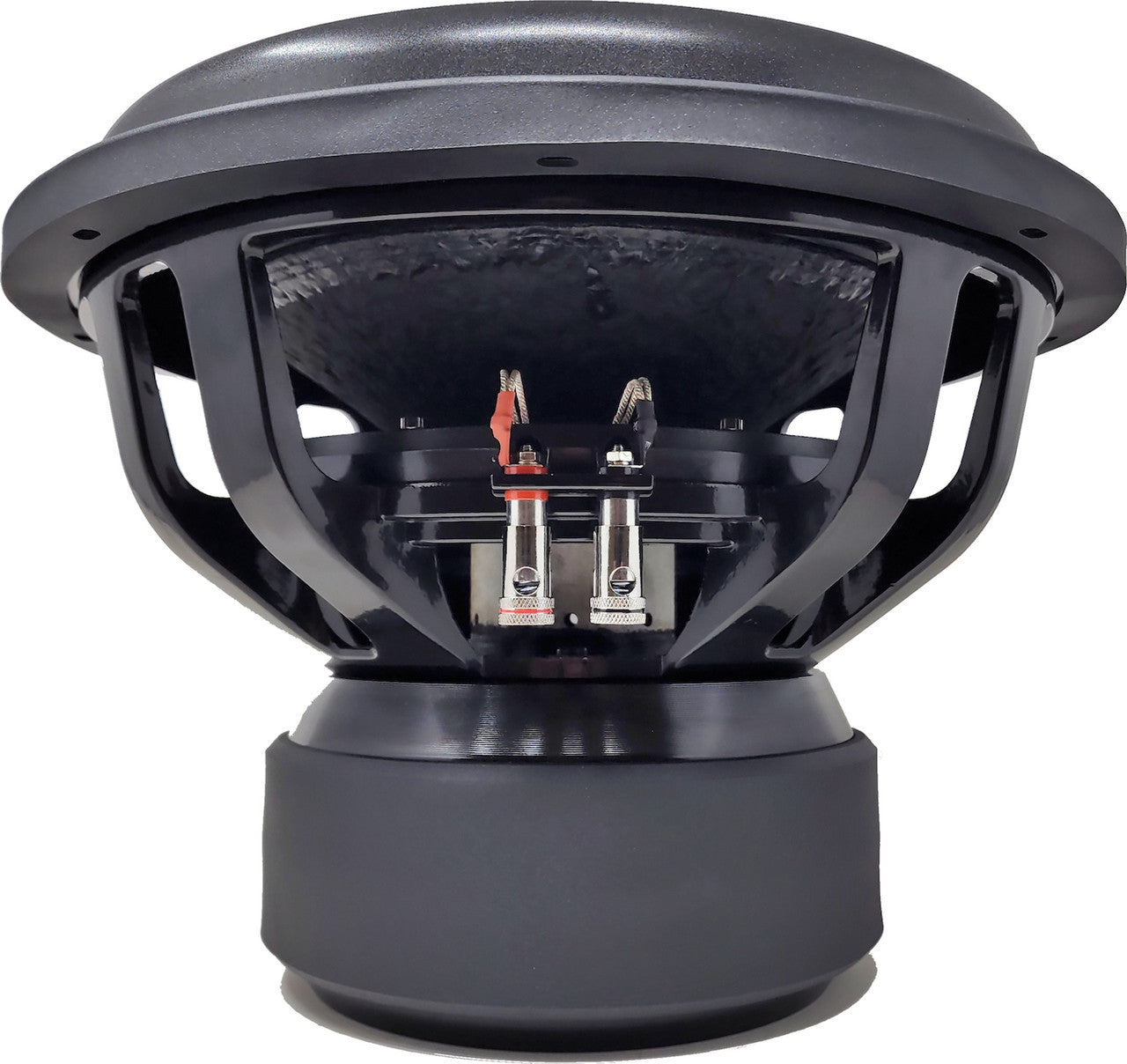

The M Series Subwoofer is available in 12” and 15” modes, with dual 1 ohm or dual 2 ohm voice coils. These subwoofers can handle a plenty of power and increased play times thanks to its rigid structure and Cool Flow flared vent backplate motor for increased heat dissipation.
| Model | TAS-M15D1 | TAS-M15D2 |
| Sensitivity | 92.3 dB | 89.4 dB |
| Norminal Impedance | Dual 1 Ohm | Dual 2 ohm |
| DC Resistance |
1.9 ohm |
3.8 ohm |
|
Voice Coil Dim |
3" | 3" |
| Power Handling | 2000 Watts | 2000 Watts |
| Peak Dynamic Power | 6000 Watts | 6000 Watts |
| XMAX one way |
1" |
1" |
| Xmech one way | 1.5" |
1.5" |
| VAS |
50.4L |
48.4L |
| FS | 28.3 Hz | 27.2 Hz |
| QES | 0.45 | .4 |
| QMS | 6.13 | 6.44 |
| QTS | 0.42 | 0.38 |
| Motor Assembly | 650 oz | 650 oz |
| Displacement | .36 cu.ft | .36 cu.ft |
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Description
The Trinity Audio Solutions M Series is the perfect subwoofer for the bass head who values clean, tight bass that doesn't sacrifice performance or clarity. The M Series Subwoofers feature high quality cast aluminum high excursion baskets with an optimized air flow design, triple stacked high density ferrite magnets, SPL rated composite paper cones, soft compliance triple layer stretch foam surrounds and a progressive roll spider pack. This combination of features allow a level of performance never seen in this price range.
The M Series Subwoofer is available in 12” and 15” modes, with dual 1 ohm or dual 2 ohm voice coils. These subwoofers can handle a plenty of power and increased play times thanks to its rigid structure and Cool Flow flared vent backplate motor for increased heat dissipation.
| Model | TAS-M15D1 | TAS-M15D2 |
| Sensitivity | 92.3 dB | 89.4 dB |
| Norminal Impedance | Dual 1 Ohm | Dual 2 ohm |
| DC Resistance |
1.9 ohm |
3.8 ohm |
|
Voice Coil Dim |
3" | 3" |
| Power Handling | 2000 Watts | 2000 Watts |
| Peak Dynamic Power | 6000 Watts | 6000 Watts |
| XMAX one way |
1" |
1" |
| Xmech one way | 1.5" |
1.5" |
| VAS |
50.4L |
48.4L |
| FS | 28.3 Hz | 27.2 Hz |
| QES | 0.45 | .4 |
| QMS | 6.13 | 6.44 |
| QTS | 0.42 | 0.38 |
| Motor Assembly | 650 oz | 650 oz |
| Displacement | .36 cu.ft | .36 cu.ft |
Shipping
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
