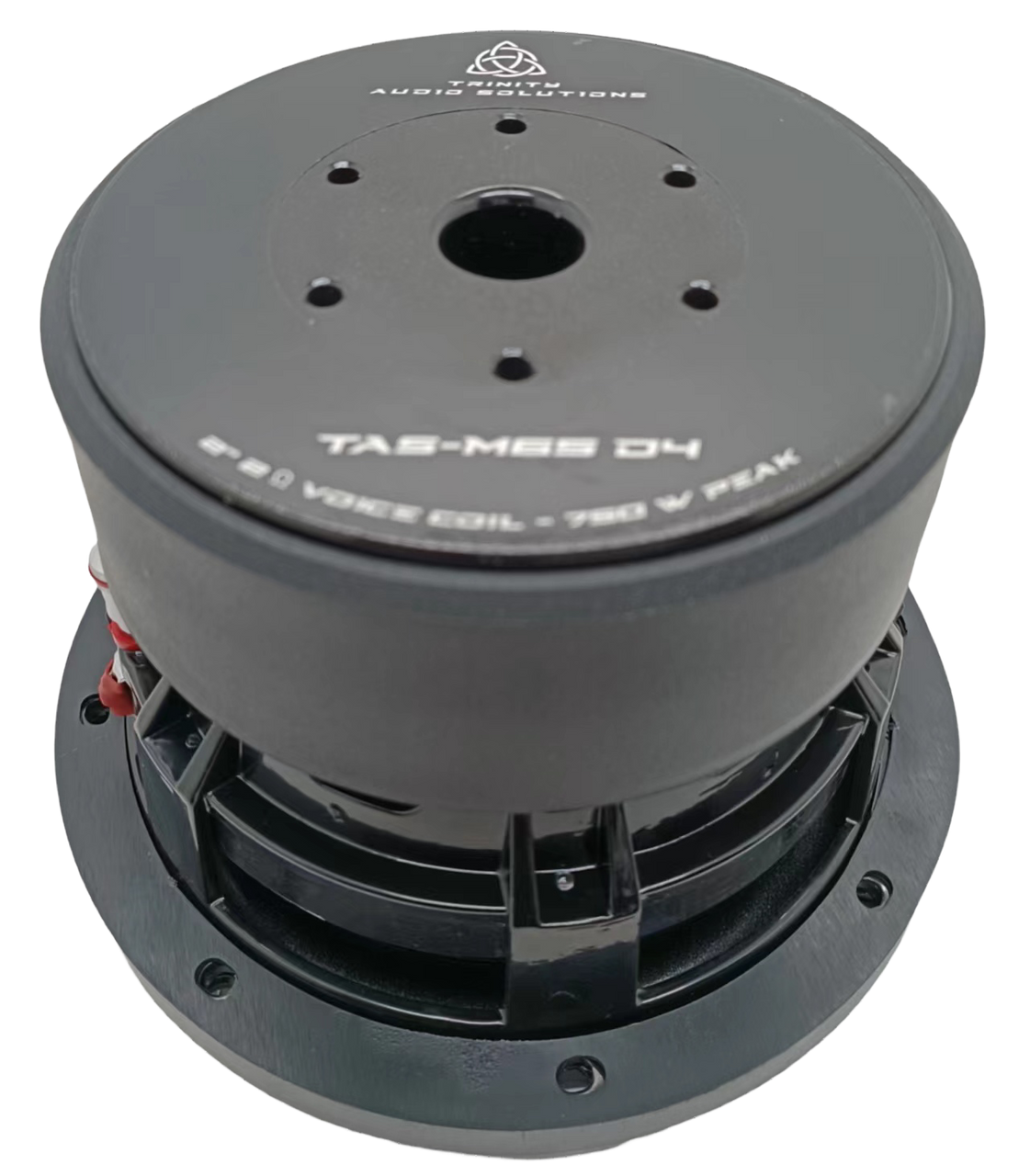

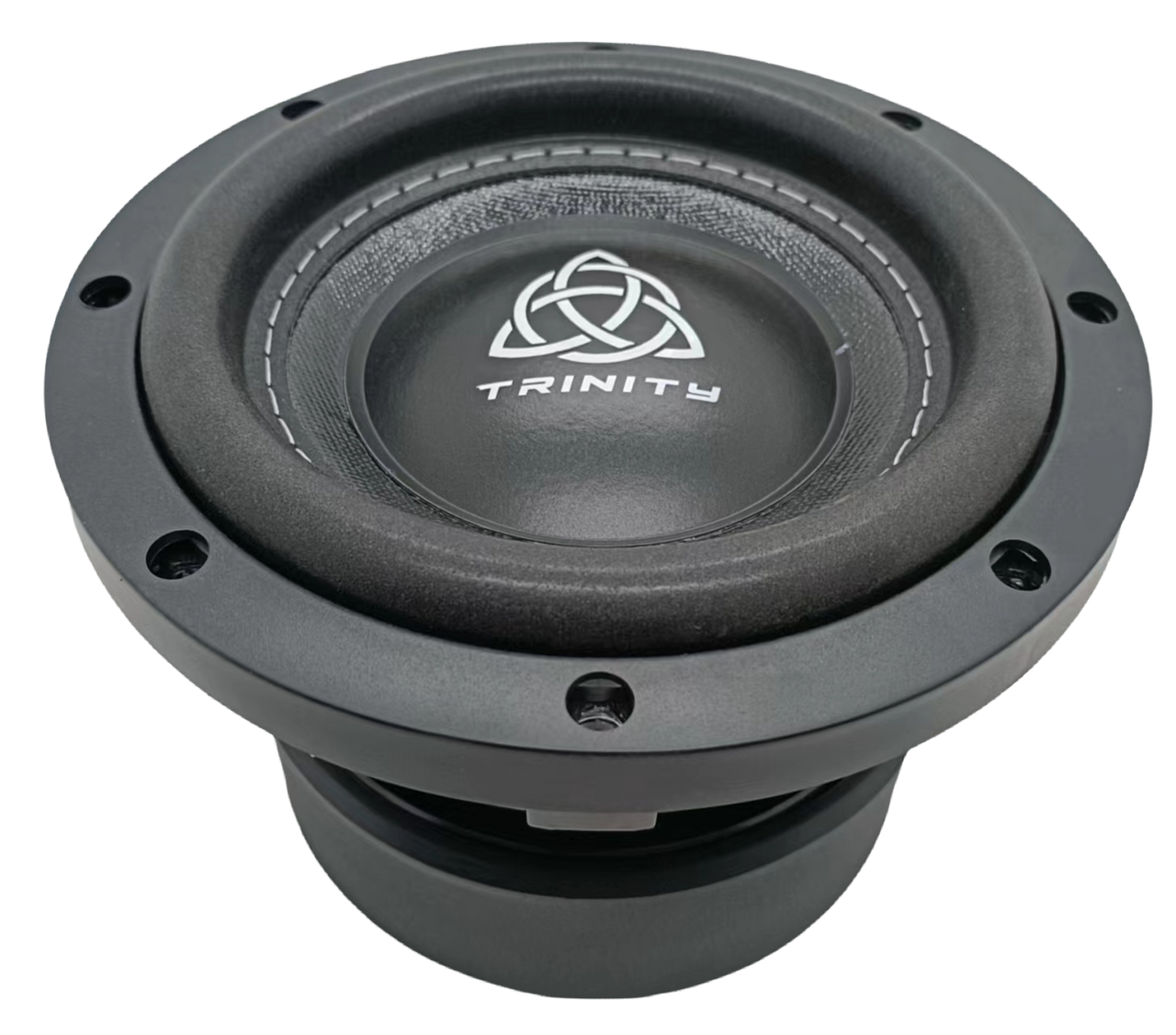

The Trinity Audio Solutions M Series is the perfect subwoofer for the bass head who values clean, tight bass that doesn't sacrifice performance or clarity. The M Series Subwoofers feature high quality cast aluminum high excursion baskets with an optimized air flow design, triple stacked high density ferrite magnets, SPL rated composite paper cones, soft compliance triple layer stretch foam surrounds and a progressive roll spider pack. This combination of features allow a level of performance never seen in this price range.
The M Series Subwoofer is now available in 6.5", 8", 12”, 15”, and 18" models! These subwoofers can handle a plenty of power and increased play times thanks to its rigid structure and Cool Flow flared vent backplate motor for increased heat dissipation.
Model |
TAS-M65D2 |
TAS-M65D4 |
Sensitivity |
89.1 dB |
87.2 dB |
Norminal Impedance |
Dual 2 Ohm |
Dual 4 ohm |
DC Resistance |
1.9 ohm
|
3.8 ohm |
Voice Coil Dim
|
2" |
2" |
Power Handling |
300 Watts |
300 Watts |
Peak Dynamic Power |
750 Watts |
750 Watts |
XMAX one way |
0.4"
|
0.4" |
Xmech one way |
0.65" |
0.65"
|
VAS |
2.2L
|
2.3L |
FS |
55 Hz |
56 Hz |
QES |
0.6 |
.065 |
QMS |
6.05 |
5.69 |
QTS |
0.54 |
0.56 |
Motor Assembly |
160 oz |
160 oz |
Displacement |
.04 cu.ft |
.04 cu.ft |
