PRV AUDIO WGP14-25 GOLD CR 1" EXIT WAVEGUIDE
DESCRIPTION
- Product Overview
Features

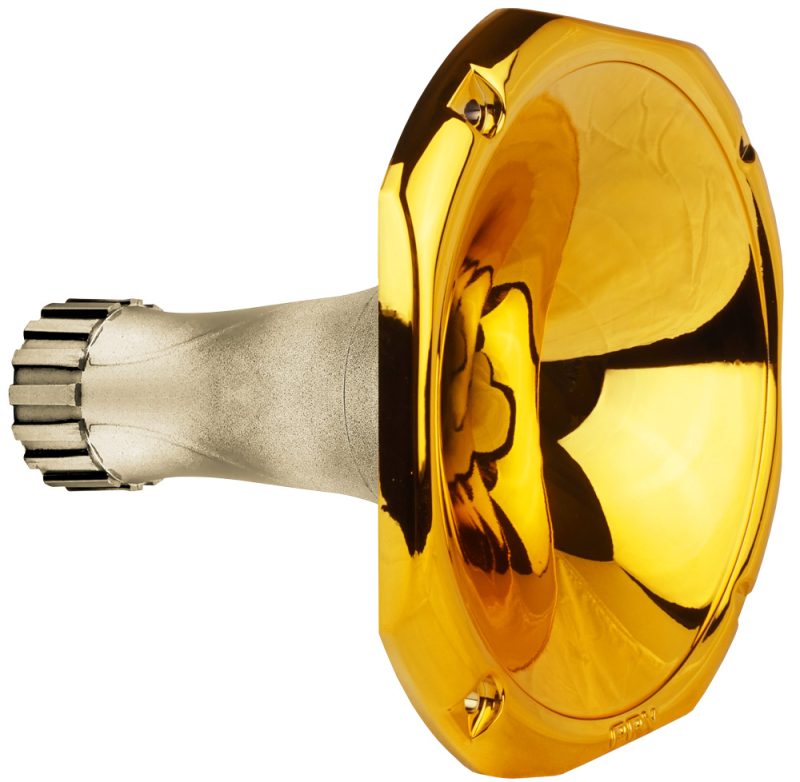

Add a little color to your sound, in a good way, with PRV Audio’s WGP14-25 gold finished exponential horn. At under 6″ of depth this horn makes installation easy in tight spaces.
A standard 1-3/8″-18 TPI Screw on mount is compatible with most 1″ compression drivers. The WGP14-25 Gold CR is constructed from non-resonant ABS plastic making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 600 Hz.
Highlights
- Under 6″ of mounting depth for installation in tight spaces
- 1″ Exit throat
- Non-resonant reinforced plastic construction
- Minimum recommended frequency of 600 Hz
- UV resistant Chrome Finish
Meet the Gold Chrome family:
WGP14-25 Gold CR, and WGP14-25 Gold-S are 1″ Exit Screw-On HORN that fits any of our 1″ Exit Screw-on compression drivers
WGP14-50 Gold CR : Gold Chrome finish all around
WGP14-50 Gold Black CR : Black glossy chrome finish inside with gold Chrome Lip
WGP22-50 Gold : Gold Chrome finish all around
WGP14-50 and WGP22-50 series are 2” Exit Bolt-on HORNS that fits any of our 2″ Exit Bolt-On compression drivers
Technical Details
| Throat Diameter | 1” (25.4 mm) |
| Mounting Type | Screw-on |
| Thread dimensions | 1-3/8″ |
| Nominal Coverage | |
| Horizontal | 45° |
| Vertical | 45° |
| Flare type | Exponential |
| Material | Plastic (ABS) |
| Finish / Coating | Gold |
| Dimensions | |
| Height | 6.08″ (154.5 mm) |
| Width | 6.08″ (154.5 mm) |
| Depth | 6.02″ (153 mm) |
| Mount Depth | 5.62″ (143 mm) |
| Baffle Cutout | |
| Diameter | 5.51″ (140 mm) |
| Net weight | 0.24 lb (0.11 kg) |
