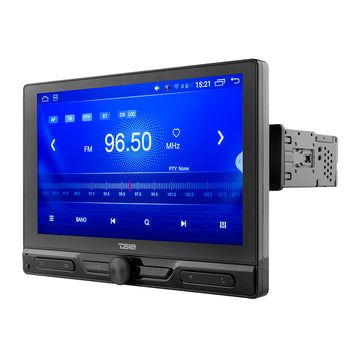

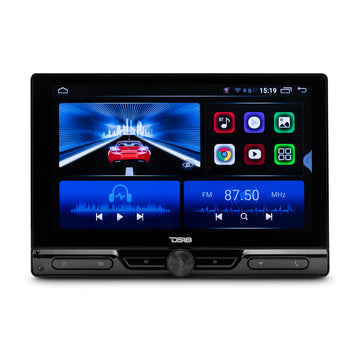

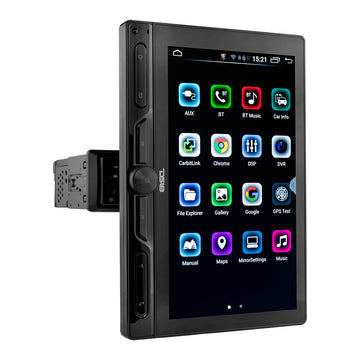

DS18’s DDX10.5ADX Mech-Less Receiver takes everything our customers loved about the DDX6.9ML Double Din Multimedia Receiver but upgraded the detachable screen from 6.9” to an incredible full rotatable 10.5” IPS screen and made it Single-DIN for Perfect Fit Modular Mounting!
The Flawless Touch Screen Control supported by all DS18’s Receivers returns for seamless maneuvering through the numerous features available in this upgraded model.
This receiver will include everything you need to bring your multimedia dreams including Mirror Link, Wi-Fi, Bluetooth, AUX, x3 USB, SD, phone controls, and all your AM / FM stations along with 4K streaming.
Connecting your head unit to your mobile hotspot makes accessing the downloadable apps available to this receiver much easier and the built in SD Reader allows you to access 64GB of memory with DVR recording.
These receivers are mech-Less; this means that they don’t support the play of compact discs and only play music back from digital media players. That’s why we’ve included so many options for playing music back from your digital devices.
This receiver has a built in Fully Adjustable DSP (Digital Signal Processor) and 8 Channel 6 Volt output allows you to tune signals from various inputs various inputs in conjunction with your Equalizer and get your speakers to play the way they were designed to: without distortion and extremely LOUD!
The built in Digital Video Recorder built for the cameras installed in this receiver guarantees your safety and authority on the road.

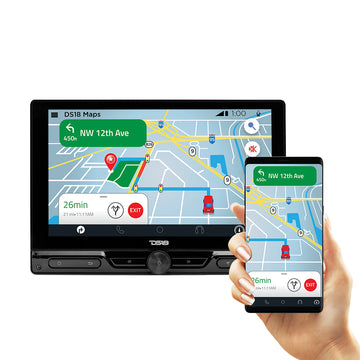

Set up Mirror link to display all media from your phone on the device, but a mobile hotspot is required for GPS functions if you are not using mirror link.
This receiver does it all and has the power to support it: with 4CH x 18W RMS and 4CH x 54W MAX at 4 ohms this receiver has just enough power to charge most entry level speakers.
(PLEASE REMEMBER DO NOT WATCH MOVIES IN MOTION, WAIT UNTILL THE CAR IS PARKED)
Highlights
- 10.5” (Wide 16:9) Full HD (1280x720 pixels) Single-Din touchscreen to maximize your viewing and allow perfect fit modular mounting.
- Android 10 System with 4+64 GB of memory
- Full 14 Band EQ and Subwoofer LPF
- Built in , Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections 3 (1 front and 2 rear)
- HDMI Outputs for full size monitor use

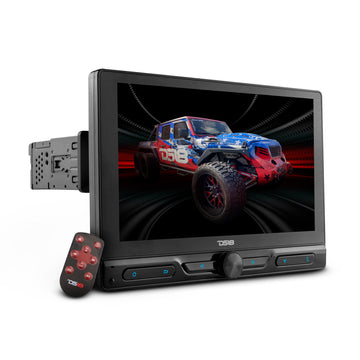

- Wireless remote control for easy operation.
- RCA inputs so you can view external sources video easily via source.
- Multi Colored Backlit Keys for easy use in dim settings
- MIC in options for easy phone operation and built in controls.
- Camera (front/rear) Inputs included so you can plug and play most types of back up cameras.
- Mech-Less
- Apple and Android compatible with mirror link.
- BT Mic included.
- Built in Navigation and antenna.
- 6v 8 channel Pre output.
- Steering Wheel controls compatible with most vehicles.
| SPECIFICATIONS | |
| GENERAL | |
| Rated power source | 14.4V DC (10.8V to 15V operation) |
| Maximum Current Consumption | 10 Amp |
| Dimensions (W x H x D) | Chassis: 178mm x 50mm x 115mm Bezel frame: 170mm x 46mm x 5mm Screen Frame: 266mm x 180mm Weight: 4.5 Lb |
| DISPLAY | |
| Screen Size / Aspect Ratio | 10,5 inch / Wide 16:9 |
| Pixels | 1280x720 |
| Display Type | IPS / Full HD / Capacitive Touch Screen |
| Temperature Operation | -20°C to +60°C (14°F to 140°F) |
| AUDIO | |
| Maximum Power Output | 50W X 4 Ch / 4 ohm |
| Continuous Power Output | 18W x 4 Ch / 4 ohm @ 14.4V |
| Pre-output Level | 6 Volts @ 14.4V |
| Equalizer | 14 bands totally adjustable from 20Hz to 20KHz on each band Factor Q: Adjustable from 0.4 to 12 Gain:+/- 15dB Presets: Standard / Popular / Rock / Classical / Jazz Custom: 3 User Memories |
| Crossover: | High Pass: Adjustable 20Hz to 20KHz Low Pass: Adjustable 20Hz to 20KHz Slope: Adjustable 6, 12, 24, 36, 48 dB/Oct |
| Audio Control | Volume / Balance / Fader / Gain / Delay |
| TUNER | |
| Frequency Range | FM: 87.5 ~ 107.9 KHz AM:530 ~ 1710 KHz |
| Presets Memory | 30 Stations (18 FM/12 AM) |
| Region | Selectable (Europe, USA, China, Japan, Eastern Europe, Latin América, Taiwan, Australia, South América, Iran, Middle East) |
| Sensitivity Adjustment | LOC (On/Off) / ST (On/Off) |
| USB / SD PLAYER | |
| Type / Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Format Files Supported | RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX |
| Resolution Supported | 1080P Video |
| Memory Size Reader | up to 32 Gb |
| Max Current Supply | 1.5 Amp (USB) |
| Number of USB Ports | 3 (1 x Front, 2 x Rear) |
| CONNECTIVITY | |
| Bluetooth Version / Services | V5.0 / Audio Streaming / Hands Free calls |
| Camera Input | RCA Analog Video up to HD 720p (Front/Rear) |
| Video Output | Dual RCA (1 Volt/75 ohm) |
| AV Aux Input | Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio |
| Microphone | 3.5mm Jack external MIC Input |
| Remote Control | Wired (3.5mm jack) Input |
| Internet: | Wi-Fi wireless connection |
| HDMI: | Yes (output) Selectable |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
Description
DS18’s DDX10.5ADX Mech-Less Receiver takes everything our customers loved about the DDX6.9ML Double Din Multimedia Receiver but upgraded the detachable screen from 6.9” to an incredible full rotatable 10.5” IPS screen and made it Single-DIN for Perfect Fit Modular Mounting!
The Flawless Touch Screen Control supported by all DS18’s Receivers returns for seamless maneuvering through the numerous features available in this upgraded model.
This receiver will include everything you need to bring your multimedia dreams including Mirror Link, Wi-Fi, Bluetooth, AUX, x3 USB, SD, phone controls, and all your AM / FM stations along with 4K streaming.
Connecting your head unit to your mobile hotspot makes accessing the downloadable apps available to this receiver much easier and the built in SD Reader allows you to access 64GB of memory with DVR recording.
These receivers are mech-Less; this means that they don’t support the play of compact discs and only play music back from digital media players. That’s why we’ve included so many options for playing music back from your digital devices.
This receiver has a built in Fully Adjustable DSP (Digital Signal Processor) and 8 Channel 6 Volt output allows you to tune signals from various inputs various inputs in conjunction with your Equalizer and get your speakers to play the way they were designed to: without distortion and extremely LOUD!
The built in Digital Video Recorder built for the cameras installed in this receiver guarantees your safety and authority on the road.
Set up Mirror link to display all media from your phone on the device, but a mobile hotspot is required for GPS functions if you are not using mirror link.
This receiver does it all and has the power to support it: with 4CH x 18W RMS and 4CH x 54W MAX at 4 ohms this receiver has just enough power to charge most entry level speakers.
(PLEASE REMEMBER DO NOT WATCH MOVIES IN MOTION, WAIT UNTILL THE CAR IS PARKED)
Highlights
- 10.5” (Wide 16:9) Full HD (1280x720 pixels) Single-Din touchscreen to maximize your viewing and allow perfect fit modular mounting.
- Android 10 System with 4+64 GB of memory
- Full 14 Band EQ and Subwoofer LPF
- Built in , Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections 3 (1 front and 2 rear)
- HDMI Outputs for full size monitor use
- Wireless remote control for easy operation.
- RCA inputs so you can view external sources video easily via source.
- Multi Colored Backlit Keys for easy use in dim settings
- MIC in options for easy phone operation and built in controls.
- Camera (front/rear) Inputs included so you can plug and play most types of back up cameras.
- Mech-Less
- Apple and Android compatible with mirror link.
- BT Mic included.
- Built in Navigation and antenna.
- 6v 8 channel Pre output.
- Steering Wheel controls compatible with most vehicles.
| SPECIFICATIONS | |
| GENERAL | |
| Rated power source | 14.4V DC (10.8V to 15V operation) |
| Maximum Current Consumption | 10 Amp |
| Dimensions (W x H x D) | Chassis: 178mm x 50mm x 115mm Bezel frame: 170mm x 46mm x 5mm Screen Frame: 266mm x 180mm Weight: 4.5 Lb |
| DISPLAY | |
| Screen Size / Aspect Ratio | 10,5 inch / Wide 16:9 |
| Pixels | 1280x720 |
| Display Type | IPS / Full HD / Capacitive Touch Screen |
| Temperature Operation | -20°C to +60°C (14°F to 140°F) |
| AUDIO | |
| Maximum Power Output | 50W X 4 Ch / 4 ohm |
| Continuous Power Output | 18W x 4 Ch / 4 ohm @ 14.4V |
| Pre-output Level | 6 Volts @ 14.4V |
| Equalizer | 14 bands totally adjustable from 20Hz to 20KHz on each band Factor Q: Adjustable from 0.4 to 12 Gain:+/- 15dB Presets: Standard / Popular / Rock / Classical / Jazz Custom: 3 User Memories |
| Crossover: | High Pass: Adjustable 20Hz to 20KHz Low Pass: Adjustable 20Hz to 20KHz Slope: Adjustable 6, 12, 24, 36, 48 dB/Oct |
| Audio Control | Volume / Balance / Fader / Gain / Delay |
| TUNER | |
| Frequency Range | FM: 87.5 ~ 107.9 KHz AM:530 ~ 1710 KHz |
| Presets Memory | 30 Stations (18 FM/12 AM) |
| Region | Selectable (Europe, USA, China, Japan, Eastern Europe, Latin América, Taiwan, Australia, South América, Iran, Middle East) |
| Sensitivity Adjustment | LOC (On/Off) / ST (On/Off) |
| USB / SD PLAYER | |
| Type / Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Format Files Supported | RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX |
| Resolution Supported | 1080P Video |
| Memory Size Reader | up to 32 Gb |
| Max Current Supply | 1.5 Amp (USB) |
| Number of USB Ports | 3 (1 x Front, 2 x Rear) |
| CONNECTIVITY | |
| Bluetooth Version / Services | V5.0 / Audio Streaming / Hands Free calls |
| Camera Input | RCA Analog Video up to HD 720p (Front/Rear) |
| Video Output | Dual RCA (1 Volt/75 ohm) |
| AV Aux Input | Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio |
| Microphone | 3.5mm Jack external MIC Input |
| Remote Control | Wired (3.5mm jack) Input |
| Internet: | Wi-Fi wireless connection |
| HDMI: | Yes (output) Selectable |
Shipping
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
