DS18 DDX10.5ML 10.5" Floating Swivel Modular Touchscreen Mechless Double-DIN Headunit with Bluetooth, Mirror Link and USB

  • $369.95
    Unit price per

Shipping calculated at checkout.

Apply For Financing


DS18’s DDX10.5ML Receiver takes everything our customers loved about the DDX6.9ML Double Din Multimedia Receiver but upgraded the screen from 6.9” to an incredible 10.5” inches!

The Flawless Touch Screen Control supported by all DS18’s Receivers returns for seamless maneuvering through the numerous features available in this upgraded model.

This receiver will include everything you need to bring your multimedia dreams including Wi-Fi, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations.

Connecting your head unit to your mobile hotspot makes accessing the available options to this receiver much easier.

These receivers are mech-less; this means that they don’t support the play of compact discs and only play music back from digital media players. That’s why we’ve included so many options for playing music back from your digital devices.

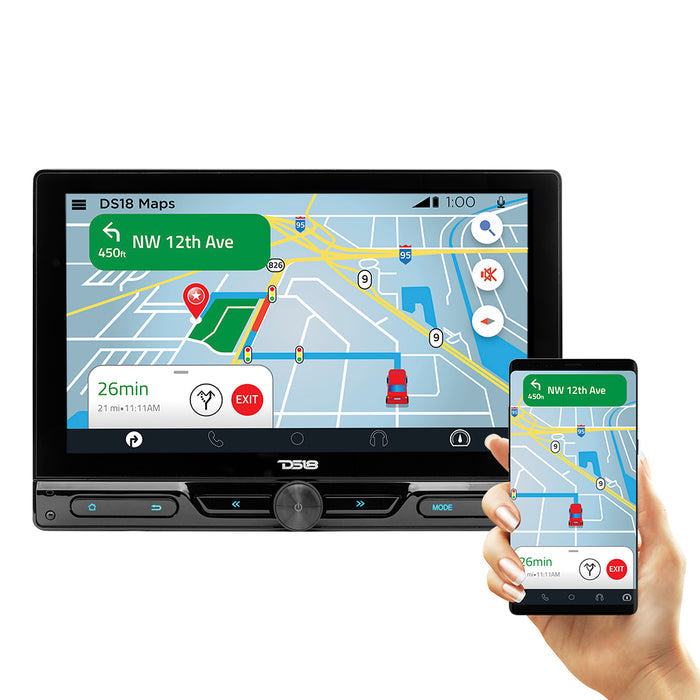

Set up Mirror link to display all media from your phone on the device.

This receiver does it all and has the power to support it: with 4CH x 15W RMS and, 4CH x 40W MAX at 4 ohms this receiver has just enough power to charge most entry level speakers.



  • 10.5” (Wide 16:9) Full HD (1280x720 pixels) Single-Din touchscreen to maximize your viewing and allow perfect fit modular mounting.

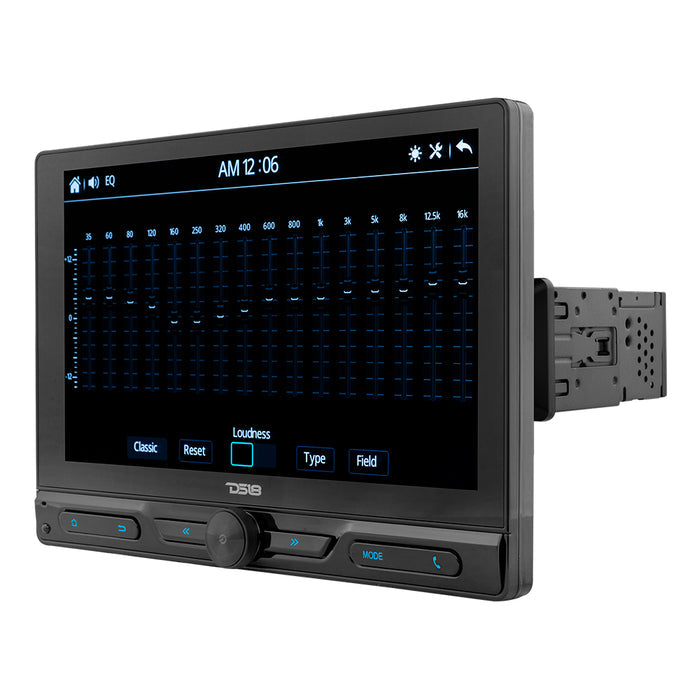

  • Full 16 Band EQ and Subwoofer LPF with 4.5v Pre-Output
  • Built in, Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 1 rear)

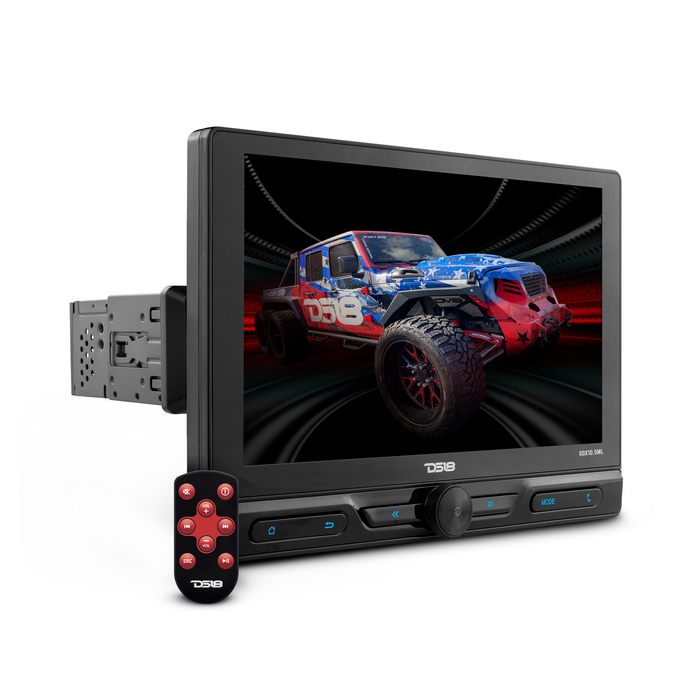

  • Wireless remote control for easy operation.
  • RCA inputs so you can view external sources video easily via source.
  • Multi Colored Backlit Keys for easy use in dim settings
  • MIC in options for easy phone operation and built in controls.
  • Camera Inputs (front/rear) included so you can plug and play most types of back up cameras.
  • Apple and Android compatible.

    Rated power source 14.4V DC (10.8V to 15V operation)
    Maximum Current Consumption 15 Amp
    Dimensions (W x H x D) Chassis: 178mm x 100mm x 138mm
    Bezel frame: 170mm x 96mm x 5mm    Screen Frame: 266mm x 180mm
    Weight: 5.5 Lb
    Screen Size / Aspect Ratio 10,5 inch / Wide 16:9
    Pixels 1280x720
    Display Type TFT / Full HD / Capacitive Touch Screen
    Temperature Operation -20°C to +60°C (14°F to 140°F)
    Maximum Power Output 40W x 4 Ch / 4 ohm
    Continuous Power Output 15W x 4 Ch / 4 ohm
    Pre-output Level 4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
    Equalizer 16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz)
    Gain +/- 12dB
    Audio Control Volume / Balance / Fader / Loudness
    Frequency Range FM: 87.5 ~ 107.9 KHz AM:530 ~ 1710 KHz
    Presets Memory 30 Stations (18 FM/12 AM)
    Region Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
    Sensitivity Adjustment LOC (On/Off) / ST (On/Off)
    Type / Class V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
    Format Files Supported RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
    Resolution Supported 1080P Video
    Memory Size Reader up to 64 Gb
    Max Current Supply 1.5 Amp (USB)
    Number of USB Ports 2 (1 x Front, 1 x Rear)
    Bluetooth Version / Services V5.1 / Audio Streaming / Hands Free calls
    Camera Input RCA Analog Video up to HD 720p (Front/Rear)
    Video Output Dual RCA (1 Volt/75 ohm)
    AV Aux Input Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
    Microphone 3.5mm Jack external MIC Input
    Remote Control Frontal IR Receptor / Wired (3.5mm jack) Input
