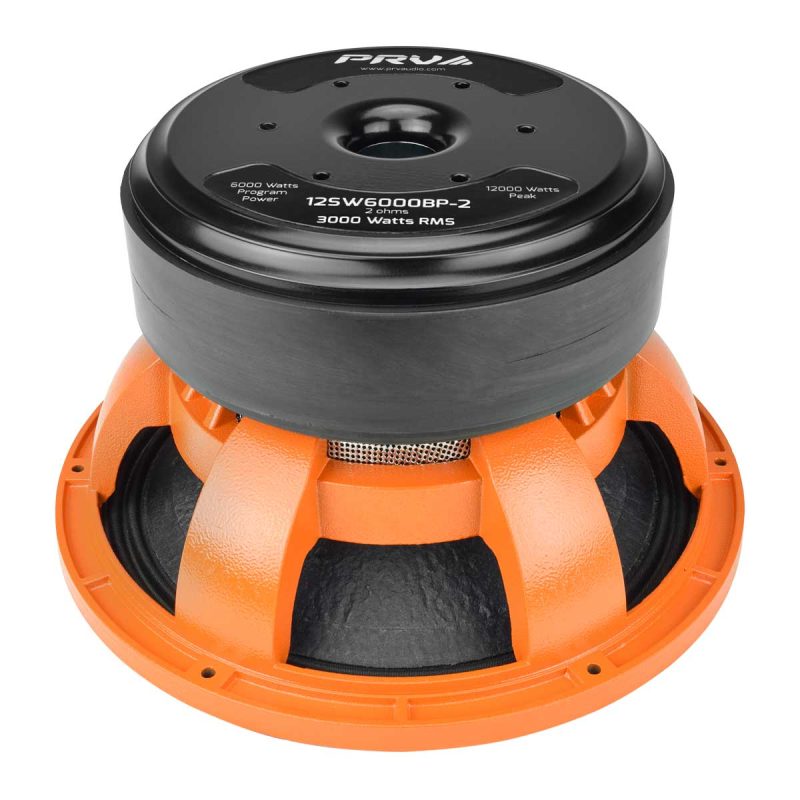

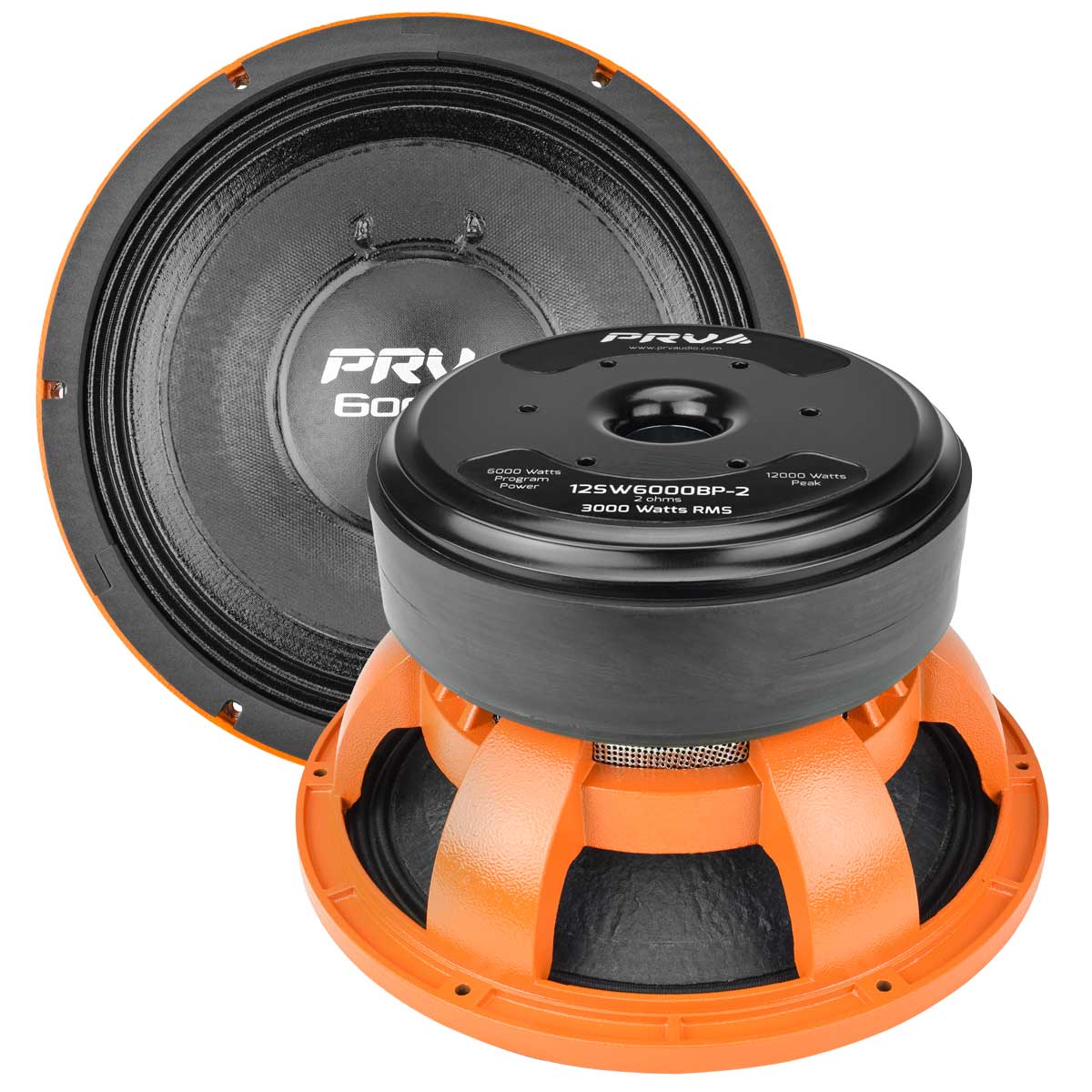

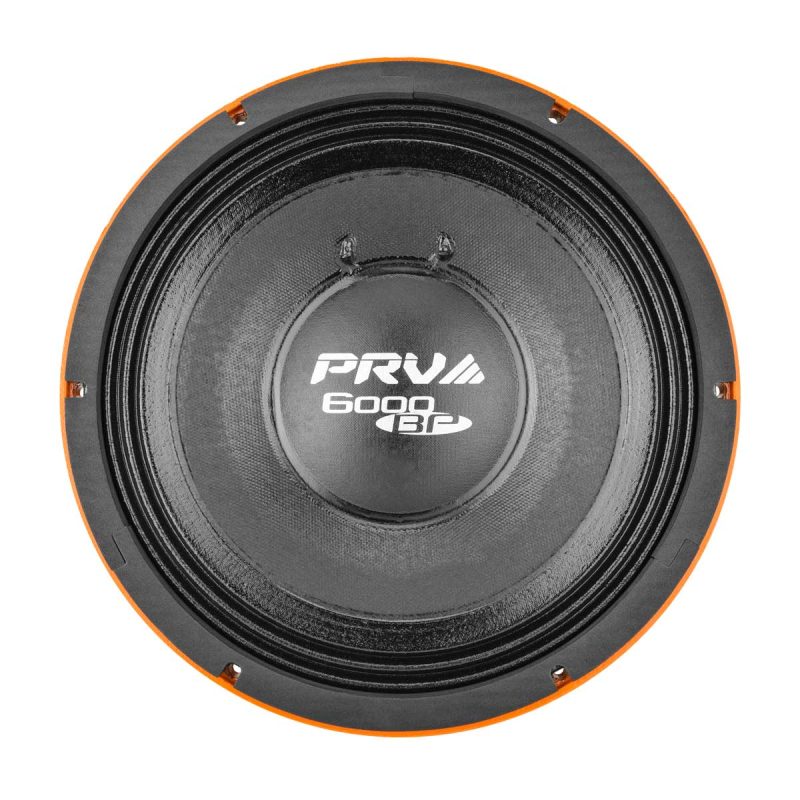

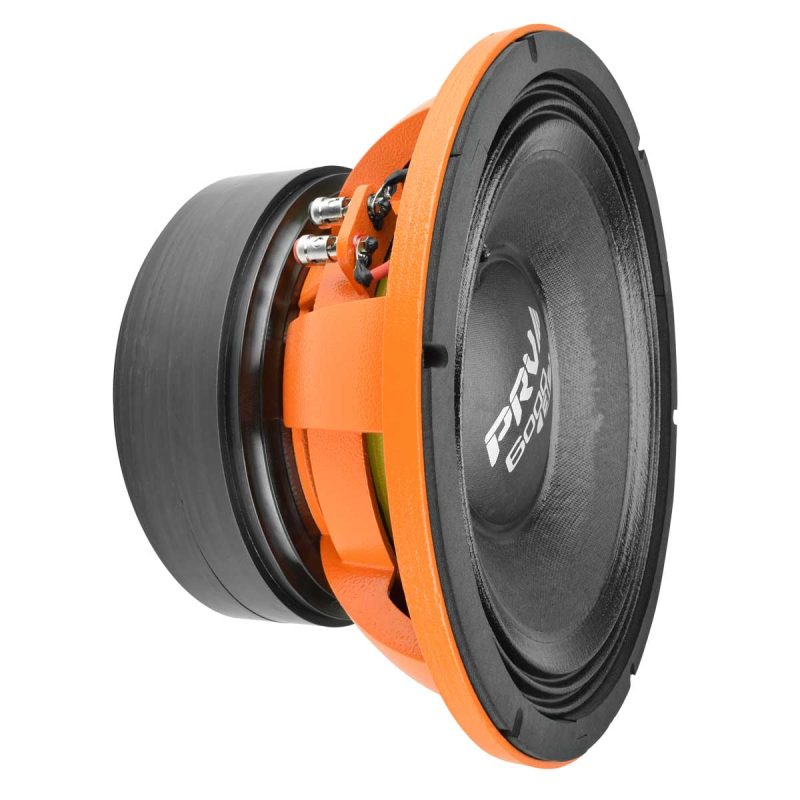

Copy of PRV Audio 12SW6000BP-2 12" SUBWOOFER LOUDSPEAKER
DESCRIPTION
- Product Overview
Product Overview
Features
Efficient woofer, designed to be used in systems that demand high performance in its low mid bass range, providing a clean sound with a lot of sound pressure.
12SW6000BP-2 is not your normal subwoofer, this is designed to produce low mid frequency in ported boxes in open air, such as stunt wall! The BP series stand for Brazilian Punch, a style of sound system that originated from the Brazil which is called “Pancadão” which in Portuguese means “Strong Beat”Building a stunt wall with 8 or more of this speaker with the recommended box and crossover filter will sure make you the talk of the car show! The high level of sound pressure will be felt from feet away.
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (305 mm) |
| Nominal impedance | 2 Ohms |
| Rated AES Power Handling (RMS) | 3000 Watts |
| Program Power | 6000 Watts |
| Sensitivity 2.83V at 1m | 92.5 dB |
|
Recommended High Pass Crossover* *For Full Power Handling |
70 Hz* BT24 *12db Per Octave Crossover |
|
Recommended Low Pass Crossover* *For Full Power Handling |
300 Hz* BT24 *12db Per Octave Crossover |
| Frequency Response at -10dB | 75 – 2500 Hz |
| Voice Coil Diameter | 4″ (65 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 28.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 13.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 9.2 l |
| Excursion (mathematical)*** | Xmax | 10.75 mm |
| Free Air Resonance | Fs | 81.79 Hz |
| Mechanical Factor | Qms | 5.44 |
| Electrical Factor | Qes | 0.51 |
| Total Factor | Qts | 0.47 |
| Cone Area | Sd | 531 cm² |
| Mechanical Mass | Mms | 161.9 g |
| Bl Factor | Bl | 15.57 Tm |
| Dc Resistance | Re | 1.5 Ohms |
| Inductance | Le | 0.38 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 155.0 g |
| Mechanical Compliance | Cms | 0.023 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 12.56” (319 mm) |
| Front Mount Baffle Cutout | 11.25” (285 mm) |
| Mounting Depth | 6.67” (126 mm) |
| Overall Depth | 7.36” (187 mm) |
| Net Weight | 45.2 Lbs (20.5 kg) |
| Shipping Weight | 47.4 Lbs (21.5 kg) |
| Carton Dimensions W x L x H | 14.17” x 14.17” x 8.27” (360 x 360 x 210 mm) |
