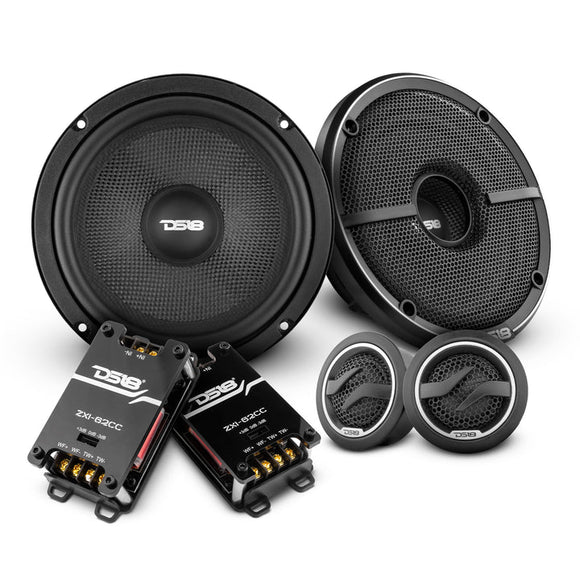

DS18 ELITE 6.5" 2- Way Component Speaker System with Kevlar Cone 240 Watts 4-Ohms

  • $139.95
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This component set includes a one-way 6.5" that takes 80w RMS and 240 Max watts. It has a 88 dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. Also included is a 30w RMS tweeter that can either be mounted on the grill assembly, or in another location of your choosing. The included DS18 passive crossover will get your frequency just right for the best sound available. These speakers are an amazing choice for your average every day to extreme audiophile!

Highlights

  • Highly durable and extremely loud design built for the average to extreme audio systems.
  • Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
  • Component design will bring a full range of frequencies to your ears and with great sound quality.

Download ZXI-62C Product Manual

General Specifications
Nominal Diameter 6.5” / 165mm
Nominal Impedance 4 Ohms
RMS Power Handing 80W
MAX Power Handing 240W
Sensitivity (1w/1m) 88dB
Frequency Response 40Hz - 20KHz
Recommended HI Pass Crossover 60Hz
Speaker Type 2-Way
Woofer Specifications:
Voice Coil Diameter 1” / 25.5mm
Voice Coil Former Material KSV
Winding Material EISV
Cone Material Glass fiber
Surround Material Rubber
Basket Material Steel
Magnet Material Barium Ferrite
Magnet Weight 14.4 oz / 410g
Grill Included Yes
Pair Yes
Tweeter Specifications:
Nominal Diameter 1.25" (31.7mm)
Voice Coil Diameter 1"(25.5mm)
Voice Coil Former Material ASV
Winding Material EISVM
Diaphragm Material SILK
Magnet Material Neodymium
Magnet Weight 0.46 oz / 13g
Pair Yes
Crossover Specifications & Features
Passive Crossover Ways 2 Ways
Frequency Crossover point 3.5Khz
Cut-Off Slope 12 dB/Oct
Tweeter Attenuation (+/- 3dB)
Capacitor Type NP
Coil Type KSV
Terminal Type Screw-On
Housing Material ABS / Acrylic
Adjustments Tw Attenuation
Extra Features Pt Tw protection
Pair Yes
Thiele & Small Parameters
Equivalent Volume 10.36L
Excursion (one way) 2.7mm
Free Air Resonance 64Hz
Mechanical Factor 9.5
Electrical Factor 0.85
Total Factor 0.78
