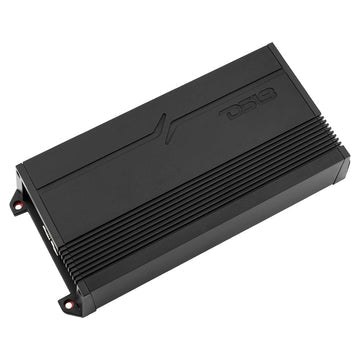

DS18 G1800.4D Full-Range Class D 4-Channel Car Audio Amplifier 1800 Watts

  • $239.95
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION

DESCRIPTION

The Gen-X series has always been a DS18 staple with the public and been in countless system builds over the many years it was released.

We have completely redesigned the GEN-X series from the ground up to meet and audio enthusiasts high standards and complete their goals for the system of their dreams with great power, reliability, and efficiency.

The G1800.4D has a power rating of 4 x 150 watts RMS at 4 ohms 4 x 230 watts RMS at 2 ohms, 2 x 430 watts at 4 ohm bridge, and 1800 watts MAX at the ohm load it was designed for, giving you pure and clean power on demand.

This amp has the power to drive your speakers but also not take up much space because of the new compact design and technology that will keep your amp playing cool and loud.

Highlights

  • Small and powerful design so you can power your subs with great efficiency and power without taking up much space
  • Integrated low pass and high pass filter to help you get the perfect response you are looking for.
  • High quality terminals that look great and will transfer your power and signal with no loss.


Key Features

  • Digital Class D 4 Channel Amplifier
  • MAX Wattage: 1800w Peak
  • RMS Wattage: 2 x 430 Watts RMS @ 4 ohm bridge, 4 x 230 Watts RMS @ 2 ohms, 4 x 150 Watts RMS @ 4 ohms
  • Frequency Response: 20-20KHz
  • Signal to Noise Ratio: >90dB
  • Efficiency at 4 ohms: 81%
  • Total Harmonic Distortion: 0.01%
  • Input Range: .25-6v
  • Selectable X-over: LPF, HPF. Flat
  • Phase: 0-180
  • Power and Ground Terminal: 4 GA
  • Minimum Impedance: 2 ohm


Great For:

  • Car Audio
  • Pro Audio
  • Motorcycles
  • Hi-Fi installation
  • Off-Road
  • DIY Projects

Specifications
POWER
Total Watts (Peak) 1800W
RMS Power @ 4 ohm 4 x 150W
RMS Power @ 2 ohm 4 x 230W
RMS Power @ 4 ohm Bridge 2 x 430W
AUDIO
Frequency Response 20Hz-20KHz
Signal to Noise Ratio >90dB
Efficiency @ 4ohm 81%
Damping Factor 78
Input Impedance 22K
Channel Separation 70dB
Total Harmonic Distortion (THD) 0.01%
Low Level Input Range 0.25-6V
High Level Input NO
Selectable X-Over LPF/FLAT/HPF
X-Over Filter Range 50Hz-250Hz
Bass Boost Range N/A
Bass Boost Frequency N/A
Infrasonic Filter N/A
Phase Selector NO
FEATURES
Amplifier Class Digital (D)
Amplifier Type 4CH Full Range
Number of Channels 4CH
Minimum Impedance 2 ohm St / 4 ohm Bridge
Led Indicator Power / Protection / Clip
Power Input Terminal Size 4 ga
Fuse Size 2 X 40A
Remote Level Control NO
Cooling Fan NO
Voltmeter  NO
Thermal Protection YES
Over-Load Protection YES
DC Output Protection YES
Short Circuit Output Protection YES
Voltage Input Protection YES
Clipping Protection  YES
Body Color / Finish Matte black
MEASUREMENT
Overall Length 10.43" / 265mm
Overall Wide 4.72" / 120mm
Overall Height 1.96" / 50mm
Heatsink Length  8.58" / 218mm
Gross Single Unit Weight 1.6KG
