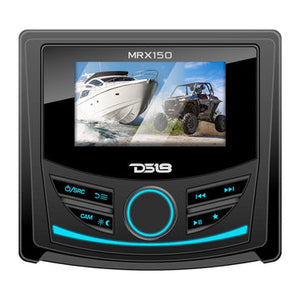

DS18 MRX150 Marine and Powersports Headunit 3" Color TFT screen , 2 Zones, 4 volts Output, BT, RDS 4 X 50 Watts
DESCRIPTION
- Product Overview
Your Marine and Powersports vehicle will never be the same when you install DS18’s new MRX150!
The MRX150 is the perfect way to take control of the audio reproduced by your Marine and Powersports Audio System!
Tons of invaluable features have been added to this head unit’s repertoire so users can play all of their favorite songs whenever they want: AM/FM/WB Tuner with 37 different presets (18FM / 12AM / 7 WB), Bluetooth v5.0 for superior audio streaming, USB Port, and AUX.
The MRX150 is built to withstand the elements with support from it’s Gorilla Glass Screen with OCA Full Bonding. The incorporation of these parts helped boost the MRX150 to an impressive Waterproof Rating of IPx6, protecting it against high pressure water streams from any angle. The MRX150 is also protected against damage caused from UV rays and corrosion from salt.
The MRX150 also uses a 2-Band equalizer for complete control over two parts of your frequency spectrum (Bass and Treble). Take even more control over the audio in your vehicle by sectioning off your audio into 2 Zones with Independent Level and Tone Control.
At 2 ohms this unit offers 4CH x 25W Continuous Power Output and 4CH x 50W Max Power Output which is generally enough to power all entry level speakers. The PRE-AMP outputs will deliver a maximum of 4 volts for all 7 channels so your amplifiers get the clearest sound available. Protect your investment with the reliable built-in Voltmeter that measures your vehicles battery with pinpoint accuracy.
Order the MRX150 to take have complete control over your Marine Audio System today!
Highlights
- AM/FM/WB Tuner + RDS
- 37 Radio Presets (18FM / 12AM / 7WB)
- Bluetooth v5.0 for superior audio streaming
- USB Port for Music & 2.1 Amp Charger
- Audio AUX Input
- Video Camera Input
- Wired Remote Control Input
- Screen with Gorilla Glass and OCA Full Bonding
- 2 Zones with Independent Level and Tone Control
- 2 Band EQ (Bass and Treble)
- Subwoofer Output Adjustable (Level and LPF)
- All Channels 4 Volts Pre-Amp RCA Output (all Zones)
- Speaker Output Power up to 25W x 4CH Continuously and up to 50W x 4CH Musical
Great For
- Marine Audio
- Powersports Audio
- Boats
- ATVS
- UTVS
- SXS
- GOLF CART
| SPECIFICATIONS | |
| GENERAL | |
| Operating Voltage | 10.5 -16 Volts |
| Current Drain | 15 Ampere / (Max) |
| Low Voltage Warning Alert | YES (< 11V) |
| Waterproof Rating | IPX6 |
| UV/Salt Protection | YES |
| Buttons | Rubber + RGB Backlit (Blue Color) |
| DISPLAY | |
| Screen Panel | Gorilla Glass with OCA Full Bonding |
| Type | TFT LCD with IPS |
| Backlight | LED |
| AUDIO | |
| Power Output RMS | 4 x 18W @ 4ohm (14.4v) / 4 x 25W @ 2ohm (14.4v) |
| Max | 4 x 50W @ 2ohm (14.4v) |
| Min Load | 2 ohm Stable per Channel |
| Frequency Response | 20Hz to 20Khz |
| RCA Pre-Out Voltage | 4 Volts (14.4v) |
| Output Impedance | 500 ohm |
| Equalizer | 2 Bands (Bass 100Hz ± 10dB, Treble 10Khz ± 10dB) |
| Presets | YES (S-Bass / Vocal /Powerful / Clarity) |
| Subwoofer Control | Level (-10 to +10) |
| Audio Zones | 2 Zones (Zone 1: Front R+L, Rear R+L / Zone 2: R+L) |
| Independent Zone Control | YES (Level/Tone) |
| Audio Input | L+R RCA (Aux Input) |
| TUNER | |
| FM Frequency Range | 87.5 -107.9 MHz |
| AM Frequency Range | 530 -1710 KHz |
| Weather Band | 162.40 -162.55 MHz |
| NOAA Weather Band | YES Compatible |
| Tuner Presets | 18 FM / 12 AM / 6 WB |
| Radio Data System | YES (AF / TA / NEWS) Selectable |
| IF | 10.7MHz (FM), 450KHz (AM) |
| Sensitivity | 4μV (FM), 36dBuV (AM) |
| Signal to Noise Ratio | >30dB(FM) |
| Stereo Separation | >25dB |
| CONNECTIVITY | |
| Bluetooth Version | 5.0 + EDR |
| Audio Streaming | A2DP |
| USB Compatibility | v2.0 |
| USB Capacity | 64 Gb Max |
| USB Charge Capacity | 2.1 Amp |
| Audio Files Compatibility | MP3, WMA |
| Remote Control | Wired 3.5mm Jack Input (Compatible with MXRC) |
