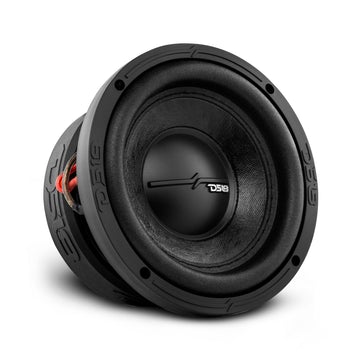

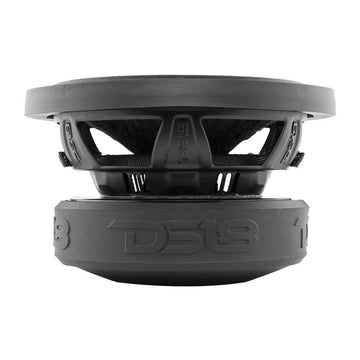

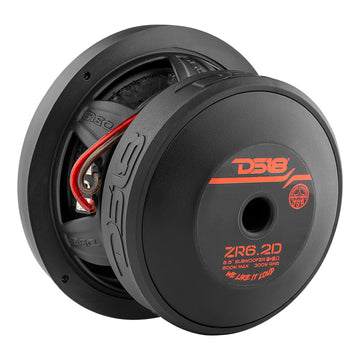

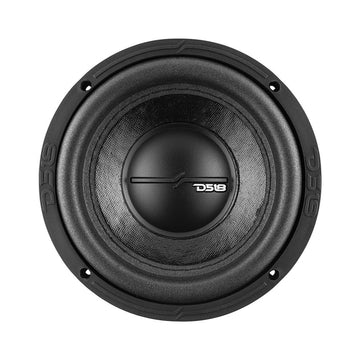

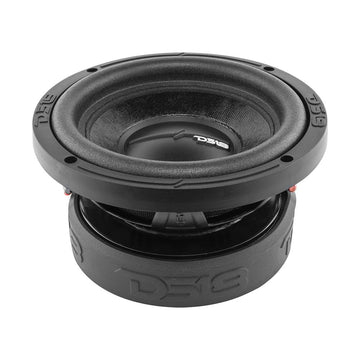

DS18 ZR6.2D 6.5" Car Subwoofer with 600 Watts DVC- 2ohm
- Product Overview
The ZR subline is a great entry level subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
This 6 inch model comes in both dual 2 and dual 4 ohm configurations giving you many options to match your amplifiers optimal impedance. This model comes with a 1.5 inch voice coil that handles 300w RMS and 600w max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle.
- Large foam surround giving great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 300w RMS and 600w max through a high strength 1.5 inch aluminum voice coil.
- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dustcap.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.
Download ZR6.2D Product Manual
Nominal Diameter 6.5” Nominal Impedance 2+2 Ohms RMS Power Handling 300W MAX Power Handling 600W Sensitivity (1w/1m) 82 dB Frequency Response 38Hz - 200 Hz Recommended Lo Pass Crossover 160 Hz MOTOR Voice Coil Diameter 1.5” / 38.8mm VC Former Material Aluminum Winding Material Copper Cone Material Non Pressed Paper Dust Cap Material PPI Surround Material Foam Basket Material Steel Basket Color/Finish Matte Black Magnet Material Ferrite Magnet Weight 50 oz Displacement Volume 0.02 ft3 THIELE & SMALL PARAMETERS Equivalent Volume 2.65 L Excursion (one way) 15mm Free Air Resonance 65Hz Mechanical Factor 3.412 Electrical Factor 0.769 Total Factor 0.627 Moving Mass 55.41g Compliance 91.07µ m/N BL Factor 5.37 Voice Coil Inductance 324.3m mH Cone Area 143 Cm2 DC Resistance 1.8 + 1.8 ohm Efficiency Bandwidth Product 84.5 MEASUREMENTS Overall Diameter 6.75” / 171.6mm Overall Depth 4.23” / 107.4mm Front Mount Baffle Cutout 5.54” / 140.8mm Mounting Depth 3.49” / 88.8mm Motor Diameter 5.23" / 133mm
