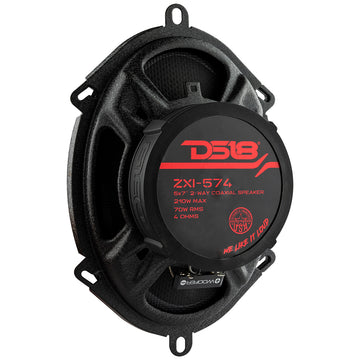

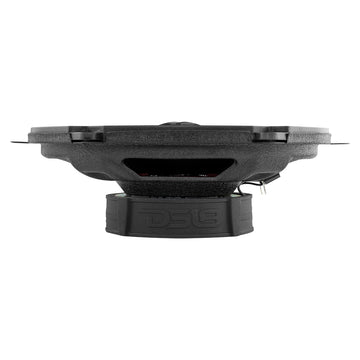

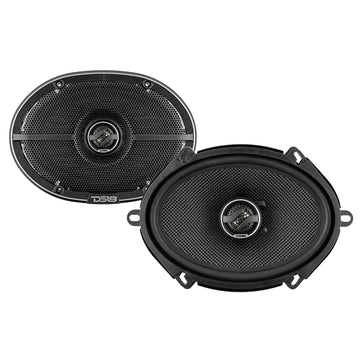

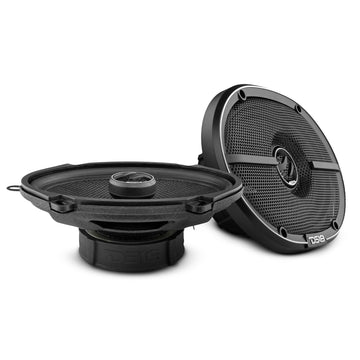

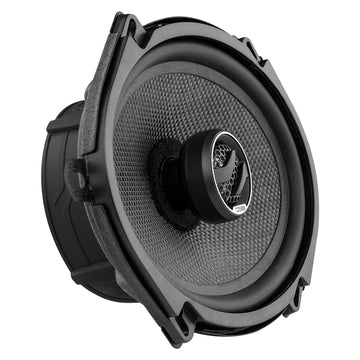

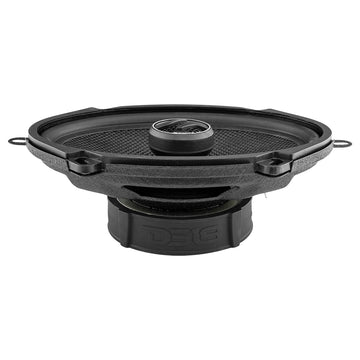

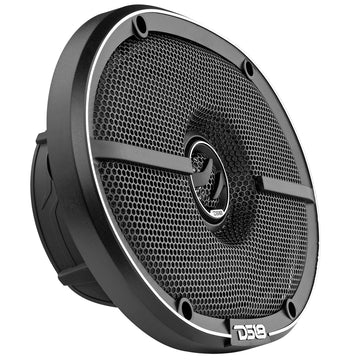

DS18 ZXI-574 Kevlar 5x7" 2-Way Coaxial Car Speaker 210 Watts 4-Ohm

  • $99.95
    Unit price per

Shipping calculated at checkout.



DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This 2 - way 5x7" takes 70w RMS and 210w Max watts and with a 91dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average every day to extreme audiophile!


  • Highly durable and extremely loud design built for the average to extreme audio systems.
  • Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
  • 2 - way design will bring a full range of frequencies to your ears and with great sound quality.2-way coaxial speakers with kevlar cone2-way coaxial speakers with kevlar cone2-way coaxial speakers with kevlar cone2-way coaxial speakers with kevlar cone
    Nominal Diameter 5x7”
    Nominal Impedance 4 ohms
    RMS Power Handling 70 Watts
    MAX Power Handling 210 Watts
    Sensitivity (1w/1m) 91dB
    Frequency Response 40Hz-20KHz
    Recommended HI Pass Crossover 60Hz
    Speaker Type 2-Way
    Voice Coil Diameter 1” / 25.5mm
    Voice Coil Former Material KSV
    Winding Material EISV
    Cone Material Glass fiber
    Surround Material Rubber
    Basket Material Steel
    Magnet Material Barium Ferrite
    Magnet Weight 14.46 oz / 410g
    Nominal Diameter 1" / 25.4mm
    Voice Coil Diameter 0.8"/ ø20.4mm
    Voice Coil Former Material KSV
    Winding Material EISVM
    Diaphragm Material PEI
    Magnet Material Neodymium
    Magnet Weight 0.3 oz / 8.5g
    Equivalent Volume 8.6L
    Excursion (one way) 2.7mm
    Free Air Resonance 68Hz
    Mechanical Factor 7.04
    Electrical Factor 1.28
    Total Factor 1.08
    Mechanical Mass 16.1g
    Mechanical Compliance 258.7mm/N
    BL Factor 4.6
    Voice Coil Inductance 228mH
    Cone Area 153.5cm2
    DC Resistance 3.5 ohm
    Mechanical Mass w/o air 14g
    Overall Diameter 5.55x7.60” / 141x193mm
    Overall Depth 3.07" / 78mm
    Front Mount Baffle Cutout 4.92x7.07”/ 125x179.5mm
    Mouting Depth 2.22” / 56.5mm
    Motor Diameter 3.70” / 94mm
