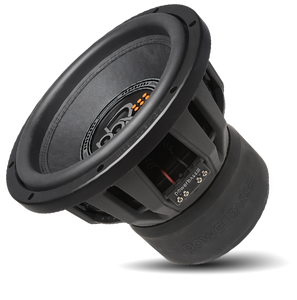

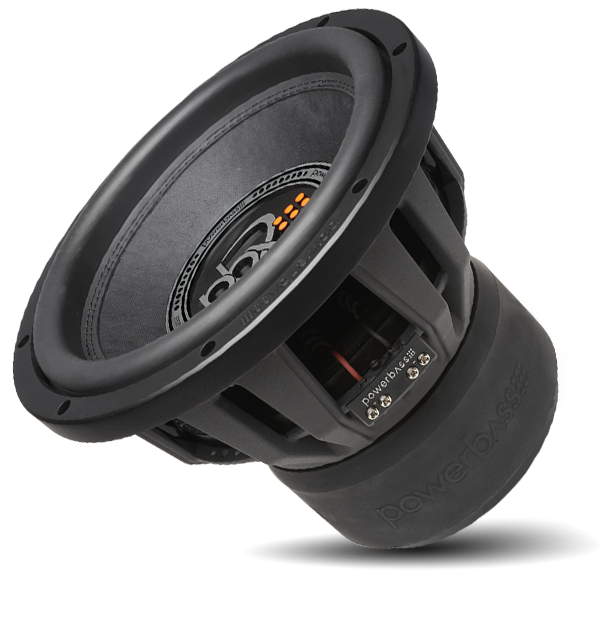

3XL-1220D 12" Subwoofer
- New PBX logo dust cap
- 12" Dual 2-Ohm Subwoofer
- 1000 watt RMS/2000 Watts Max
- DDC Pressed Paper Cone
- High Roll Nitrile Butadine Rubber (NBR) Surrond
- 3” Vented HD BASV Voice Coil Former
- Perimeter Aero-Vent Voice Coil Cooling Vents
- Non Resonance DDC Coated Cast Aluminum Basket
- XTRA XTRA XTRA Large Triple Stacked Motor Structure
- Square Spring Loaded Nickel Plated Push Terminals
- Optimally Designed for Ported Enclosures
Specifications
- Nominal Impedance: Dual 2-ohm
- BL: 18.99
- Voice Coil Size: 3 in
- Material: Pressed and Treated Paper Cone
- Magnet Size: 228.46 oz
- Sensitivity (1W / 1M): 88 dB
- Motor Structure: 228.46 oz
- Cutout Diameter: 11.06 in (282mm)
- Mounting Depth: 9 in
- Xmax: 19 mm
- Spl: 84.32 dB
- No: 0.163%
- Qts: 0.599
- Qes: 0.716
- Qms: 5.533
- Mms: 292.92 g
- Cms: 70 uM/N
- Vas: 27.96 Ltr
- SD: 530.9 sqCM
- Fs: 35.1 Hz
- Test Impedance: 4-ohms
- VC Impedance: 2-ohm +2-ohm
- Size: 12 in
- Sensitivity: 88 dB
- Frequency Response: 25 Hz - 450 Hz
- Voice Coil Size: 3 in
- Power Handling (RMS/Peak): 1000 / 2000 watts
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Have questions before you order?
If you need help confirming fitment, power needs, or the right supporting gear for your build,
contact Droppin HZ and we’ll help point you in the right direction.
Description
3XL-1220D 12" Subwoofer
- New PBX logo dust cap
- 12" Dual 2-Ohm Subwoofer
- 1000 watt RMS/2000 Watts Max
- DDC Pressed Paper Cone
- High Roll Nitrile Butadine Rubber (NBR) Surrond
- 3” Vented HD BASV Voice Coil Former
- Perimeter Aero-Vent Voice Coil Cooling Vents
- Non Resonance DDC Coated Cast Aluminum Basket
- XTRA XTRA XTRA Large Triple Stacked Motor Structure
- Square Spring Loaded Nickel Plated Push Terminals
- Optimally Designed for Ported Enclosures
Specifications
- Nominal Impedance: Dual 2-ohm
- BL: 18.99
- Voice Coil Size: 3 in
- Material: Pressed and Treated Paper Cone
- Magnet Size: 228.46 oz
- Sensitivity (1W / 1M): 88 dB
- Motor Structure: 228.46 oz
- Cutout Diameter: 11.06 in (282mm)
- Mounting Depth: 9 in
- Xmax: 19 mm
- Spl: 84.32 dB
- No: 0.163%
- Qts: 0.599
- Qes: 0.716
- Qms: 5.533
- Mms: 292.92 g
- Cms: 70 uM/N
- Vas: 27.96 Ltr
- SD: 530.9 sqCM
- Fs: 35.1 Hz
- Test Impedance: 4-ohms
- VC Impedance: 2-ohm +2-ohm
- Size: 12 in
- Sensitivity: 88 dB
- Frequency Response: 25 Hz - 450 Hz
- Voice Coil Size: 3 in
- Power Handling (RMS/Peak): 1000 / 2000 watts
