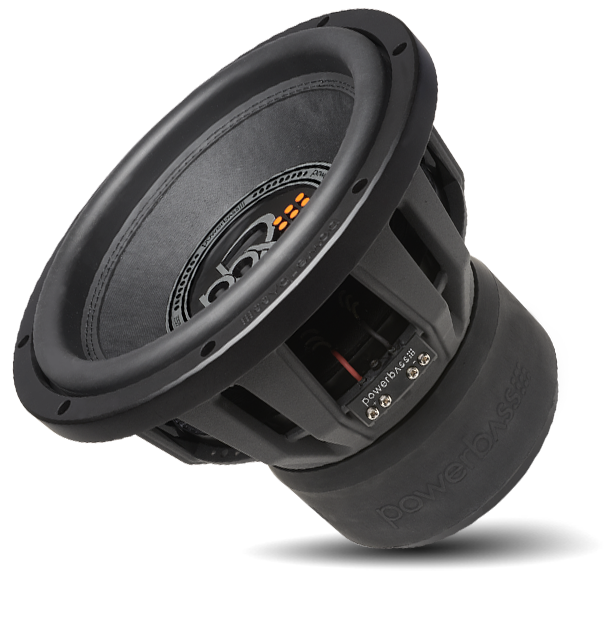

Powerbass 3XL-1210D 12" Subwoofer Dual 1 ohm 1000w RMS
DESCRIPTION
3XL-1210D 12" Subwoofer
- New PBX logo dust cap
- 12" Dual 1-Ohm Subwoofer
- 1000 watt RMS/2000 Watts Max
- DDC Pressed Paper Cone
- High Roll Nitrile Butadine Rubber (NBR) Surrond
- 3” Vented HD BASV Voice Coil Former
- Perimeter Aero-Vent Voice Coil Cooling Vents
- Non Resonance DDC Coated Cast Aluminum Basket
- XTRA XTRA XTRA Large Triple Stacked Motor Structure
- Square Spring Loaded Nickel Plated Push Terminals
- Optimally Designed for Ported Enclosures
Specifications
- Nominal Impedance: Dual 1-ohm
- BL: 14.06
- Subwoofer Frequency Range: 25 Hz - 450 Hz
- Voice Coil Size: 3 in
- Material: Pressed and Coated Pulp Paper
- Magnet Size: 228.46 oz
- Sensitivity (1W / 1M): 89 dB
- Motor Structure: 228.46 oz
- Cutout Diameter: 11.06 in (282mm)
- Mounting Depth: 9.1 in
- Xmax: 19 mm
- Spl: 89 dB
- No: 0.175%
- Qts: 0.577
- Qes: 0.639
- Qms: 5.932
- Mms: 308.79 g
- Cms: 65 uM/N
- Vas: 26.00 Ltr
- SD: 530.9 sqCM
- Fs: 35.5 Hz
- Test Impedance: 1.83-ohms
- VC Impedance: 1-ohm + 1-ohm
- Size: 12 in
- Sensitivity: 89 dB
- Frequency Response: 25 Hz - 450 Hz
- Voice Coil Size: 3 in
- Power Handling (RMS/Peak): 1000 / 2000 watts
