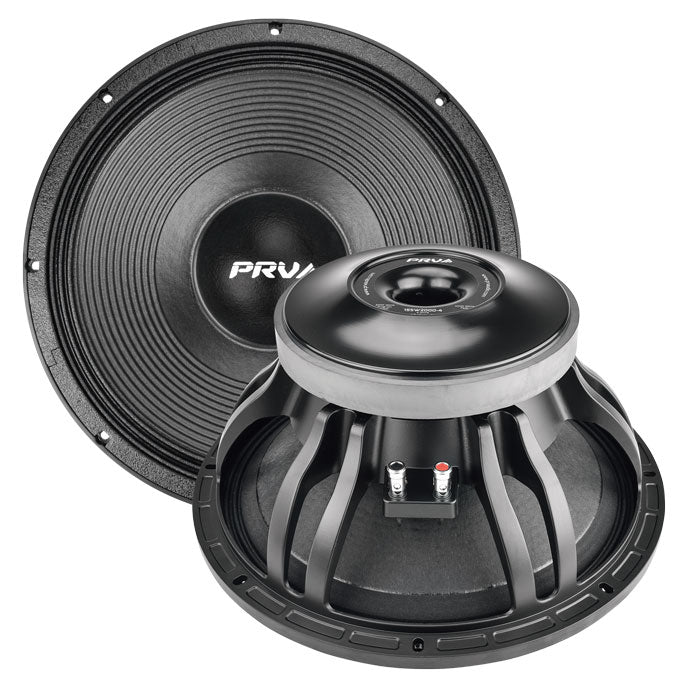

The 15SW2000-4 pro audio subwoofer features a special 4″ split copper wire voice coil wound on a fiberglass former using proprietary high temperature adhesives. It features an optimized ceramic ferrite magnet assembly that will guarantee very good Low dynamic range with a very low distortion figure. This professional low frequency driver is especially recommended for compact vented enclosures, in which it will deliver solid, deep bass output.


  • 4″ split copper voice coil wound on fiberglass former for hi-temp performance, 4 ohms
  • Ventilated voice coil gap reduces power compression
  • 12.5 mm Xmax, 36 mm peak-to-peak excursion before damage
  • 1000 watts continuous program power rating makes high acoustical output
  • High BL factor and Xmax for outstanding Low output
  • Weather-resistant paper cone and dust cap

The 15SW2000-4 loudspeaker has a specially designed forced air ventilation system to ensure proper cooling for long hard play. Our specially designed rigid cast aluminum frame features side forced cooling system openings which allows airflow to cool the voice coil to handle up to 1000 watts RMS without issue. Spring-loaded push terminals make installation a snap while offering a secure connection to your speaker wires.

The cone, constructed of thick paper for a natural response, includes glass fiber reinforcement and uses a ribbed design offering additional structural support. The woven surround offer precise movement along its impressive 12.5 mm XMAX. The upgraded and advanced voice coil and cone material along with its ability to reproduce extremely low frequencies will ensure this is your subwoofer of choice to replace your existing drivers.

Supporting the cone is a double silicone spider with optimized compliance and triple roll treated cloth surround, both designed for high excursion applications to handle short bursts of excessive power without damage.

To stand up to the use and abuse of the professional sound environment we designed a 4″ spit copper voice coil that is wound inside-outside on a fiberglass former and features a generous 31 mm winding length for extended Xmax and less distortion.

Technical Details


Nominal Diameter 15″ (310 mm)
Nominal impedance 4 Ohms
Rated AES Power Handling (RMS) 1000 Watts
Program Power 2000 Watts
Sensitivity 2.00V at 1m 96 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
60 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 45 – 2,300 Hz
Voice Coil Diameter 4″ (100 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 31.0 mm
Former Material Glass Fiber
Magnetic Gap Depth 12.0 mm
Frame Material Die Cast Aluminum



Equivalent Volume Vas 61.53 l
Excursion (mathematical)*** Xmax 12.5 mm
Free Air Resonance Fs 52.9 Hz
Mechanical Factor Qms 16.54
Electrical Factor Qes 0.57
Total Factor Qts 0.55
Cone Area Sd 908 cm²
Mechanical Mass Mms 169.1 g
Bl Factor Bl 23.19 Tm
Dc Resistance Re 5.5 Ohms
Inductance Le 1.51 mH at 1 kHz
Mechanical Mass Without Air Mmd 153.6 g
Mechanical Compliance Cms 0.053 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


Overall Diameter 15.47”(393 mm)
Front Mount Baffle Cutout 13.98” (355 mm)
Mounting Depth 7.11”(180.5 mm)
Overall Depth 7.68”(195 mm)
Net Weight 25.90 Lbs (11.75 kg)
Shipping Weight 28.66 Lbs (13.0 kg)
Carton Dimensions W x L x H 16.73”x 16.73” x 8.66”
(425 x 425 x 220mm)
