Features
Highlights
- Throat Diameter: 2″
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 110 Watts
- Program Power: 220 Watts

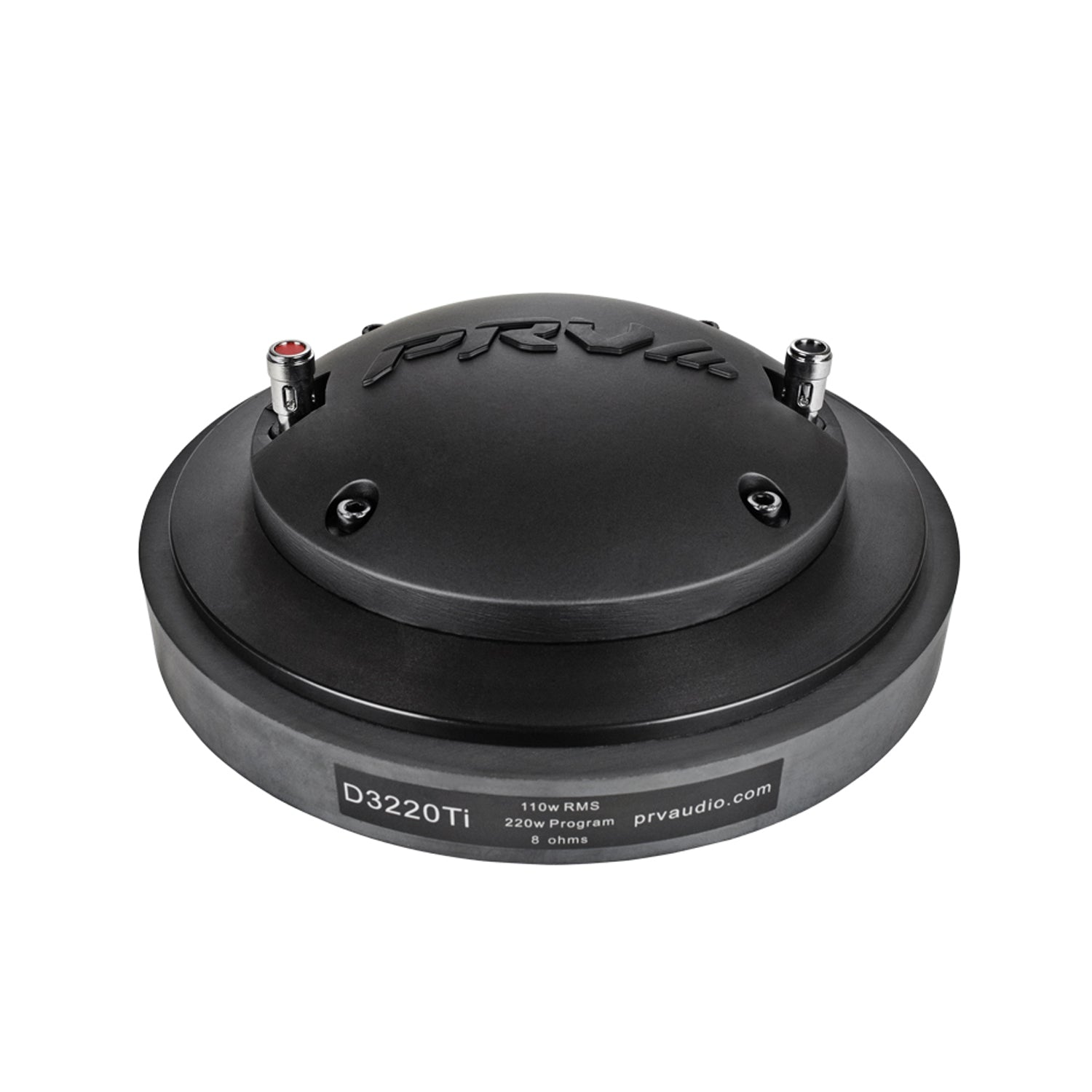

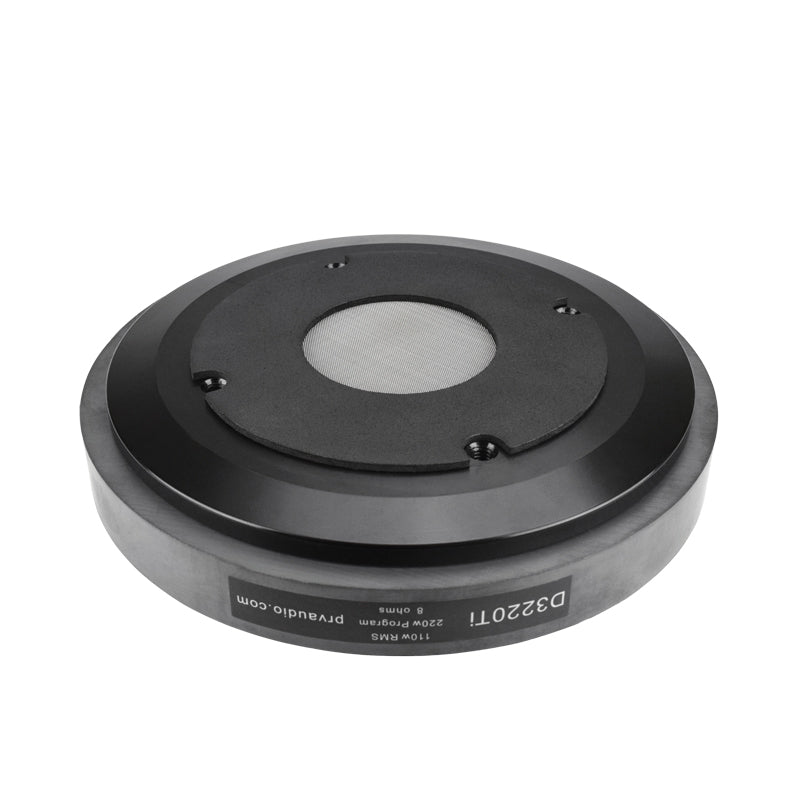

The D3220Ti is designed to ensure a quality sound and long lasting play in your large environment applications.
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 110 Watts |
| Program Power | 220Watts |
| Sensitivity 2.83V at 1m | 108 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1600 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,200 – 17,000 Hz |
| Voice Coil Diameter | 3”(76.2 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.80 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 6.69” (170 mm) |
| Overall Depth | 2.75” (70 mm) |
| Mounting Bolt Circle | M6 x 4 4” (101.6 mm) |
| Net Weight | 9.69 lbs (4.39 kg) |
| Shipping Weight | 10.11 lbs (4.58 kg) |
| Carton Dimensions W x L x H | 7.67” x 7.67” x 3.94” (195 x 195 x 100 mm) |
