PRV Audio TW700Ti-4 SLIM (PAIR) PRO AUDIO SUPER TWEETER
DESCRIPTION
- Product Overview
Product Overview
Features

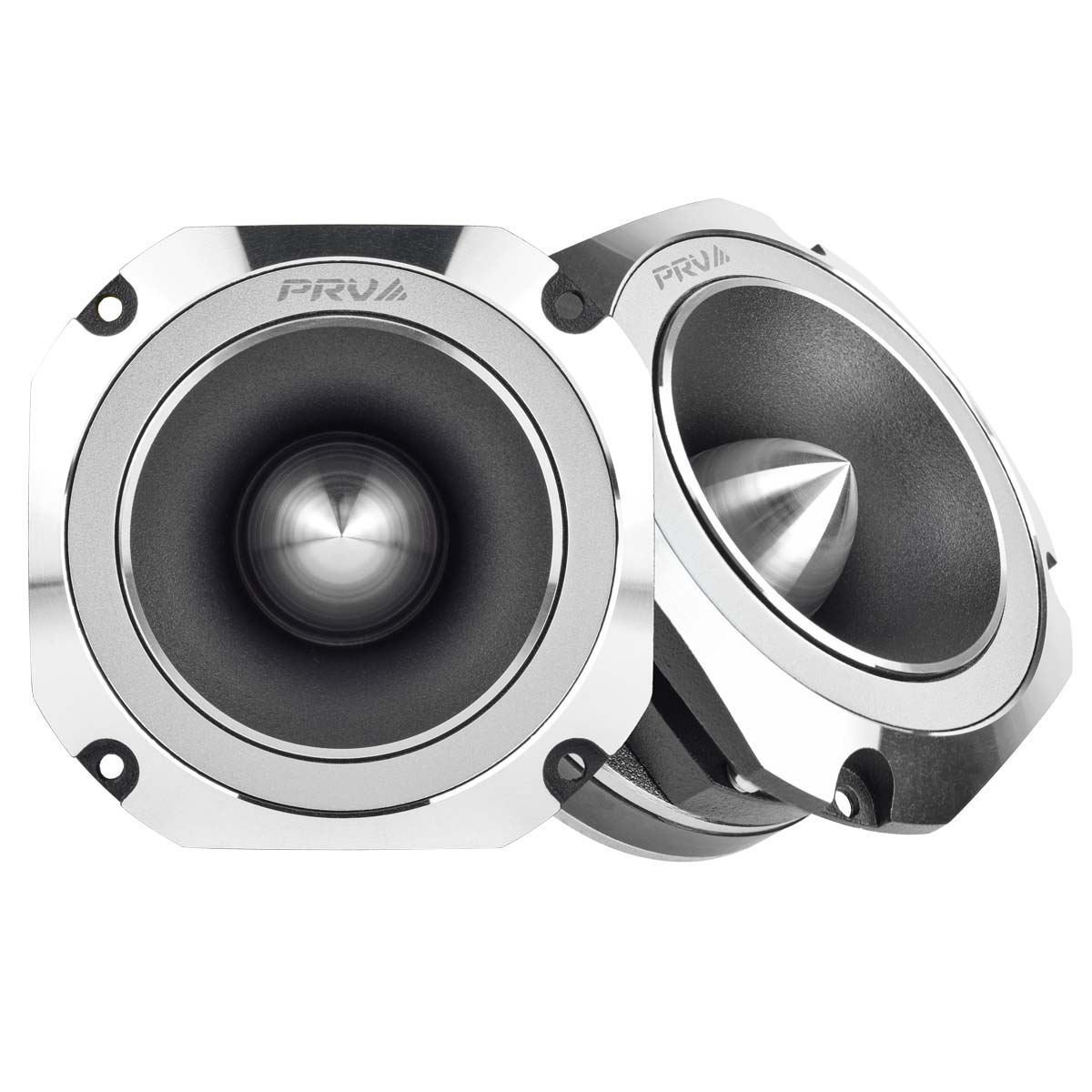

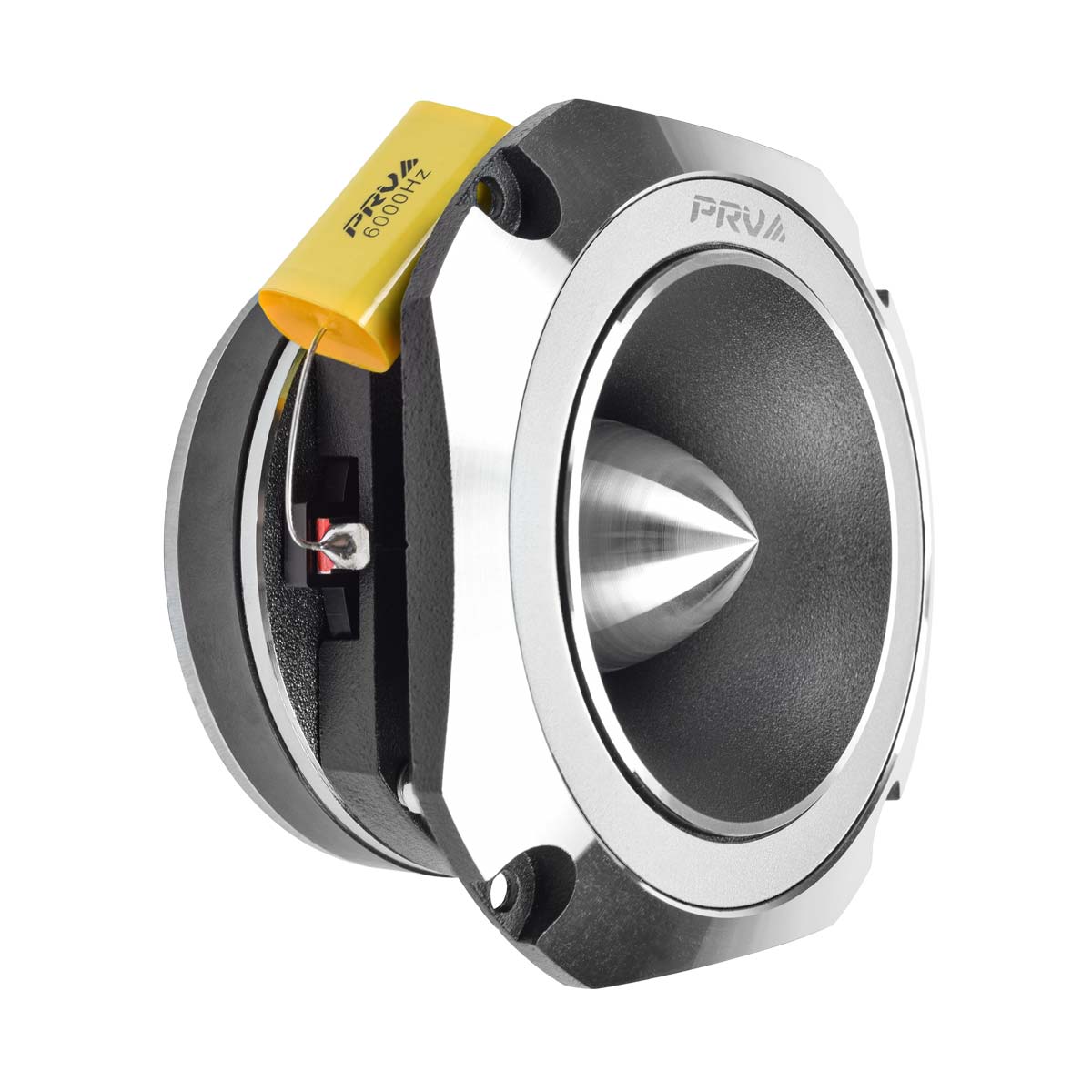

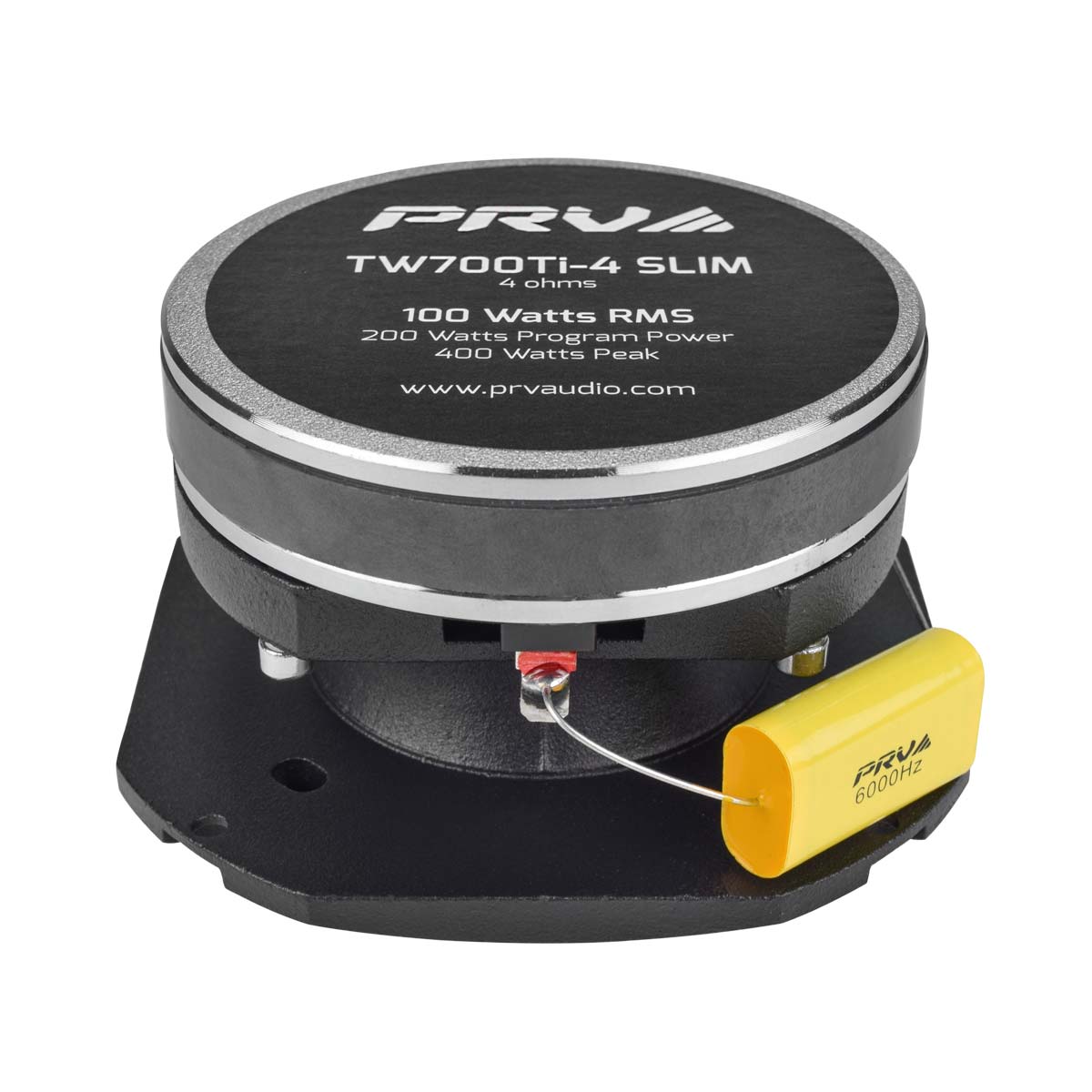

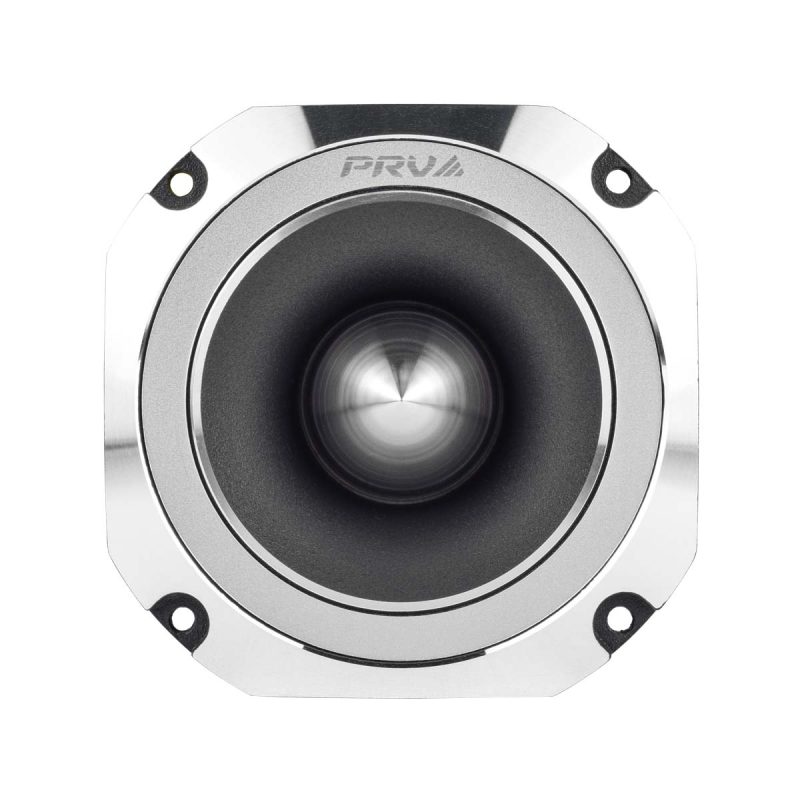

Add detail to any speaker with PRV Audio’s TW700Ti-4 SLIM titanium PRO Audio bullet super tweeter!

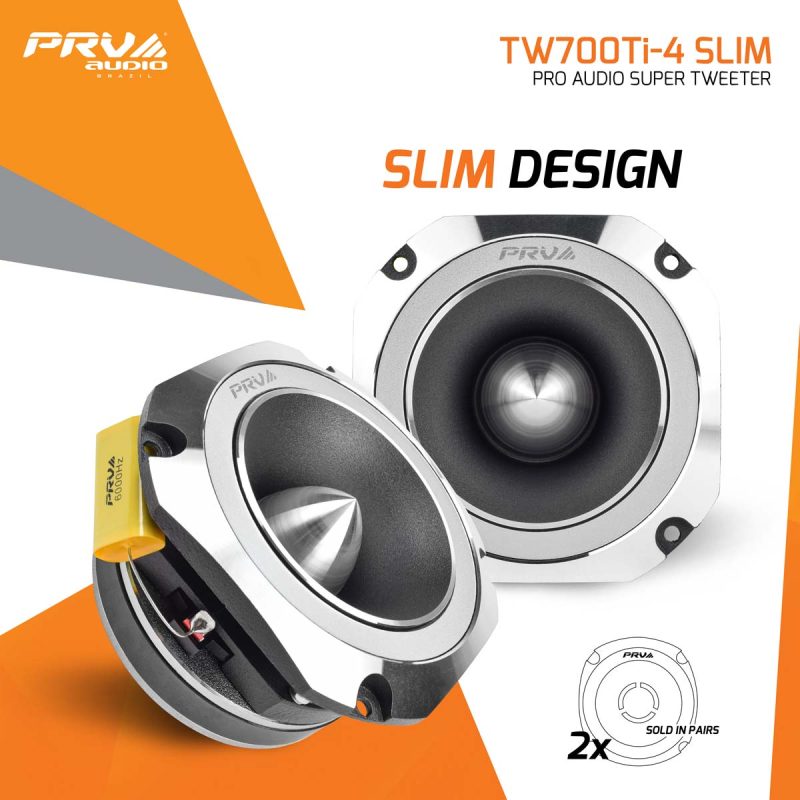

This tweeter is Slim version of our famous, powerful TW700ti. The new design features a Slim magnet and throat, making it the perfect Pro Audio On Wheels® tweeter for your car audio application.
4-inch square high compression PRO bullet tweeter features flat sides allow for close side by side mounting. With high frequency response up to 20,000 Hz and a sensitivity of 105 dB at 1W/1m, the TW700Ti-4 SLIM can keep up with your custom door speaker system.
High Frequency Bullet Tweeter, capable of adding brilliance and articulation to any professional loudspeaker system.
Highlights
- Type: Super Tweeter
- Nominal Impedance: 4Ω
- Rated AES Power Handling (RMS): 100 Watts
- Program Power: 200 Watts
- Voice Coil Diameter: 1.5″
Technical Details
GENERAL SPECIFICATIONS
| Nominal impedance | 4 Ohms |
| Rated AES Power Handling (RMS) | 100 Watts |
| Program Power | 200 Watts |
| Sensitivity 2.00V at 1m | 105 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 5000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 4,500 – 20,000 Hz |
| Voice Coil Diameter | 1.5” (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Aluminum |
| Flux Density | 1.50 T |
| Magnet Material | Ferrite |
EXTRA INFO

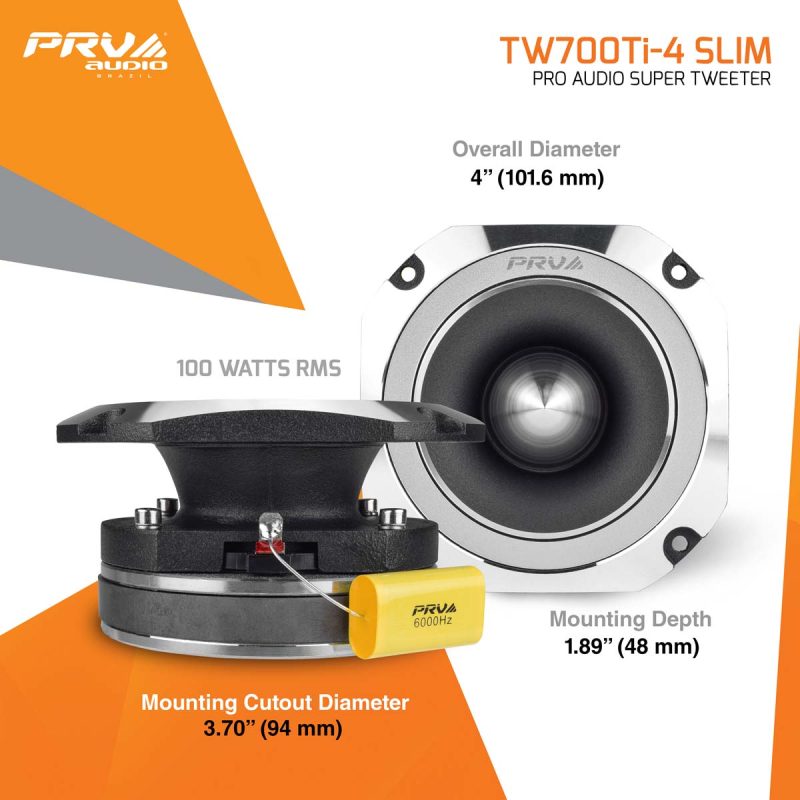

| Overall Depth | 2.28” (57.9 mm) |
| Mounting Depth | 1.89” (48.0 mm) |
| Overall Width | 4.0” (101.6 mm) |
| Overall Height | 4.0” (101.6 mm) |
| Cutout Diameter | 3.70” (94 mm) + Terminals |
| Net Weight | 2.19 lbs (0.99 kg) |
| Shipping Weight | 4.45 lbs (2.02 kg) |
| Carton Dimensions W x L x H | 9.64” x 4.72” x 2.56” (245 x 120 x 65 mm) |
