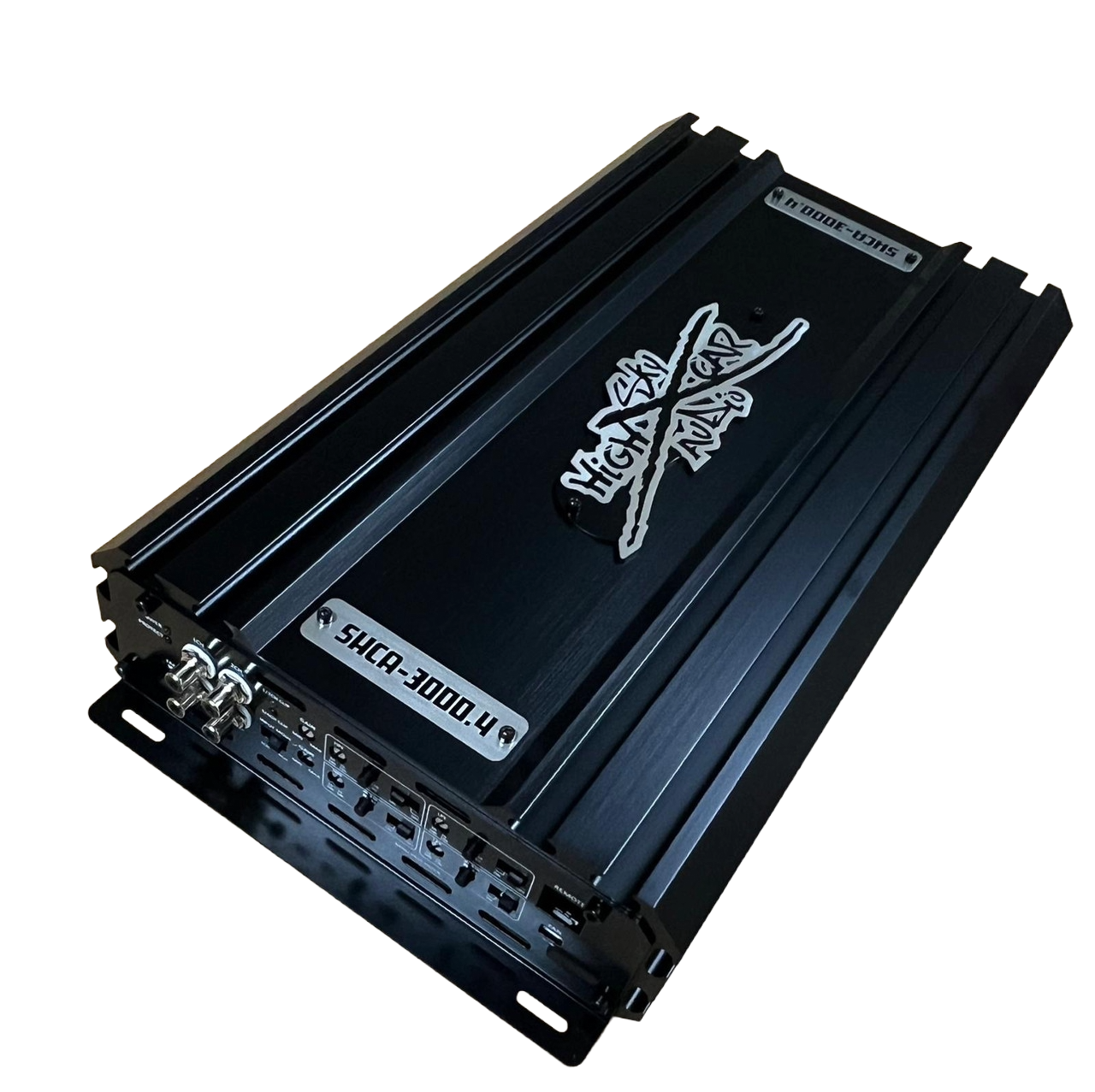

Sky High Car Audio SH-3000.4 – Precision Power. Full Flexibility.
The SH-3000.4 is built for high-output front stages, active three-way systems, or bridged mids that demand clean tuning control and serious power. With Korean engineering, modular cooling, customizable cosmetics, and full active capability, this 4-channel amplifier gives installers and competitors unmatched flexibility and control.
🔥 Key Features
- 2 OHM Stable Per Channel – Optimal performance and reliability in 4-channel mode.
- Bridgeable – Run 3-channel or 2-channel modes for powerful midbass or mids setups.
- Not 1 OHM Rated – Wiring below 2 OHM stereo or 4 OHM bridged is not supported or warrantied.
- Korean Built Class D Platform – Ultra fast-switching with balanced input circuitry.
- Individually QC Tested – Every amp is verified before it leaves the factory.
- 17.0vdc Max Operating Voltage – Rated at 13.2vdc @ 2 OHM per channel.
- Full Active Capable – High-resolution analog tuning across all channels.
- Acrylic Backplate + Internal Fan – Maintains airflow and thermal stability.
- Modular Cooling System – Three levels of expandable cooling options.
- 1-Year Manufacturer Warranty
📏 Dimensions
- Length: 15.75 inch
- Width: 9.92 inch
- Height: 3.13 inch
- Matches the SH-3500.1 for clean multi-amp symmetry.
🔧 Wiring Configurations
- 4-Channel Mode: Full-range stereo
- 3-Channel Mode: Channels 1/2 independent + channels 3/4 bridged
- 2-Channel Mode: Bridges channels 1/2 and 3/4
- RCA Input Options: Can be run from 2-channel or 4-channel signal
❄️ Efficiency & Airflow
- Efficient circuit layout reduces internal heat and stress.
- Acrylic backplate includes an internally mounted cooling fan.
- Built for long play sessions, demo events, and high-output active systems.
🎨 Customization That Stands Alone
Flippable Branding System

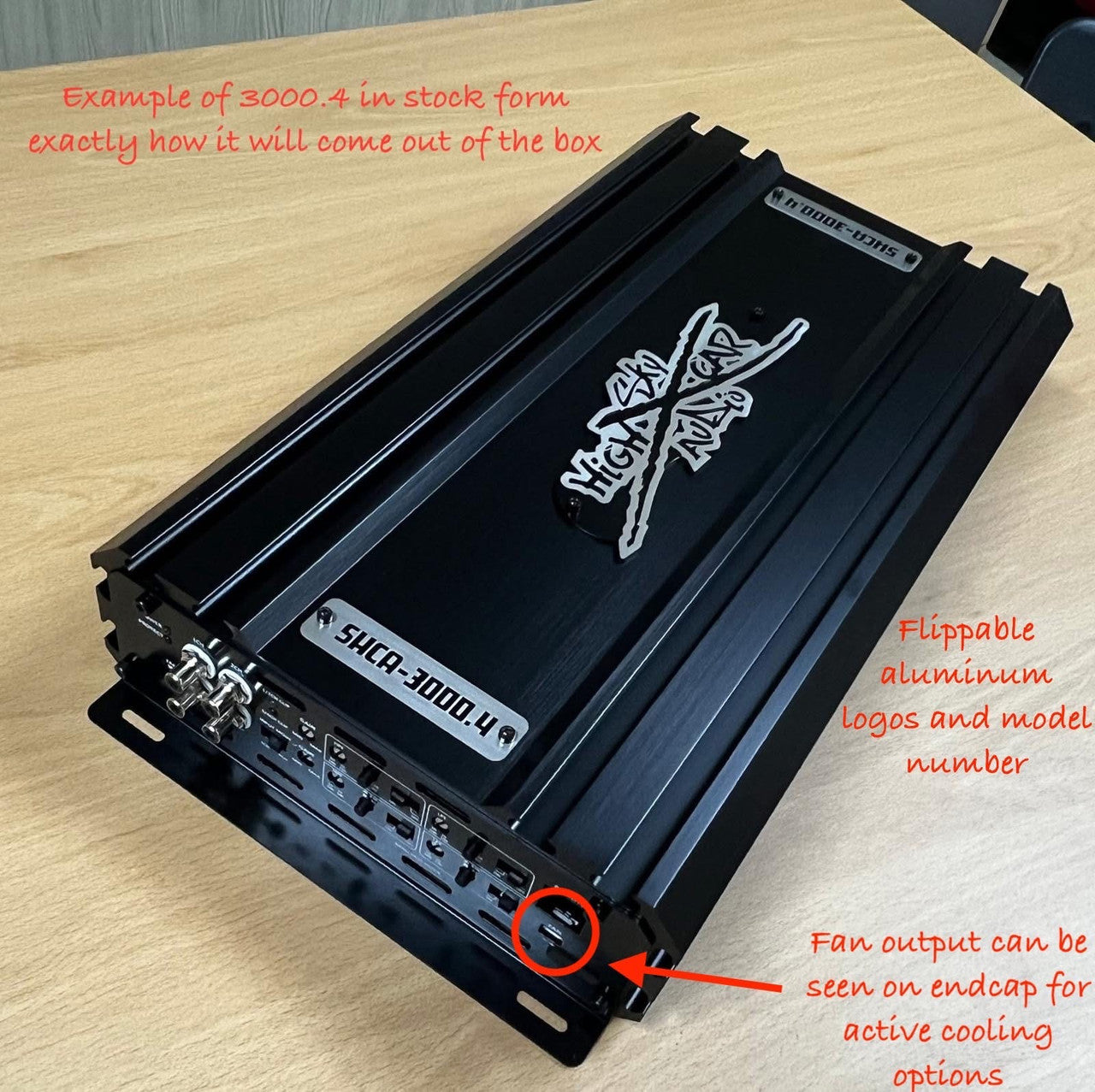

- Diamond-cut Sky High logo and model plates flip for perfect orientation.
Modular Center Panel (optional overlays sold separately)
- Forged carbon
- Mirror stainless
- Paint-matched aluminum
- Acrylic/plexi LED options
- No adhesives — bolt-on design swaps in seconds.
⚡ Power Input Flexibility
Input Expansion Kits (sold separately)
- Add additional 12V power delivery points for demanding builds.
- Available in cast aluminum, CNC aircraft aluminum, and copper.
Ring Terminal Adapters (sold separately)
- Ideal for tight installs and clean wiring layouts.
- High-conductivity bolt-on terminal design.
❄️ Cooling System Expandability
Passive Cooling Add-Ons (sold separately)
- Slide-in extruded aluminum heat sink overlays increase surface area up to 25%.
- Available raw or in five standard colors; custom coatings and chrome/copper/gold finishes available.
- Note: Non-anodized coatings reduce thermal efficiency.
Active Cooling Kits (sold separately)
- Push/pull fans mount to passive heat sink extensions.
- Plug into four onboard 12V fan outputs.
- Optional thermal bridges link airflow across multiple amps.
2026 Water Cooling Ready
- Future bolt-on water-cooled heat sink system will include pump, radiator, lines, and optional tank.
🔗 CAT6 Remote System Compatible
- Link up to 12 SHCA amplifiers.
- Control gain, subsonic, LPF, and phase from one interface.
- Monitor amplifier voltage and temperature.
- Fully compatible with the Sky High Smart Bass Knob.
🛠️ Mounting Options
- Stacking, vertical mounting, floating installs, and linked configurations with optional brackets.
- Bracket materials: Extruded aluminum, cast aluminum, billet aluminum (show grade).
- Slide-lock channels built directly into the heat sink for secure modular mounting.
- Optional footless endcaps for clean flush-wall installation.
🎚️ Detented Signal Tuning
- Tactical "click-lock" potentiometers for:
- • Low-Pass
- • High-Pass
- Provides tactile, repeatable tuning — no tools, no guessing.
The SH-3000.4 delivers high-resolution control, modular flexibility, and the power to scale your entire front stage. Precision-built and ready for any system.
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
