Developed for those who seek high performance and sound fidelity in automotive amplifiers.

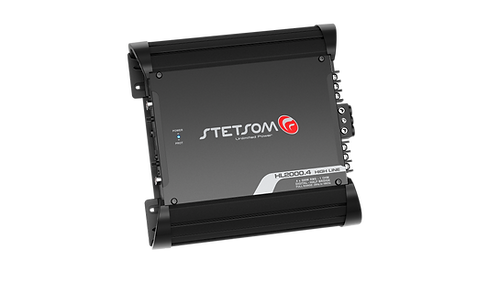

The HL2000.4 is a 2000W RMS product with 4 CHANNELS of 500W RMS at 2 Ohms and great installation versatility.
It features independent front and rear channels such as LEVEL to adjust the input signal level and Crossover, allowing you to choose between LOW-PASS, HIGH-PASS or FLAT (FULL-RANGE) operation.
TIPS HOW IT CAN BE INSTALLED:
16 super tweeters/drivers being 4 in parallel per channel.
2 channels in 1000W Bridge in 4 Ohms (Front, Rear).
3 channels being two independent of 500W and one in Bridge of 1000W.
And in Tri-mod mode with a 4-ohm speaker in bridge + 2 horns or 2 super twitters per channel.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | HL2000.4 – 2 OHMS |
|---|---|
| Number of Channels | 4 |
| RMS Power at 2 Ohm 12.6V | 4 x 500W RMS (STEREO) |
| RMS Power at 4 Ohm 12.6V | 4 x 290W RMS (STEREO) |
| RMS Power at 2 Ohm 13.8V | 4 x 580W RMS (STEREO) |
| RMS Power at 4 Ohm 13.8V | 4 x 364W RMS (STEREO) |
| Power @ 12.6V Bridge 4 Ohms | 2 x 1000W RMS |
| Power @ 13.8V Bridge 4 Ohms | 2 x 1160W RMS |
| Supply Voltage | 9V ~ 15V DC |
| Frequency Response | 19Hz ~ 26KHz |
| Crossover Low Pass | 90Hz |
| Crossover High Pass | 90Hz |
| Signal to Noise | >90 dB |
| Harmonic Distortion | >0,3 % THD |
| Input Sensitivity | 200mV |
| Input Impedance | 15K OHMS |
| Impedance Output | STEREO: 2 OHMS / BRIDGE: 4 OHMS |
| Consumption with Signal Musical | 96A |
| Consumption with Signal Bass | 192A |
| Dimensions (H x W x D) mm | 77.5 x 235 x 240.5 mm |
| Weight Kg | 2,7 Kg |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
Description
Developed for those who seek high performance and sound fidelity in automotive amplifiers.
The HL2000.4 is a 2000W RMS product with 4 CHANNELS of 500W RMS at 2 Ohms and great installation versatility.
It features independent front and rear channels such as LEVEL to adjust the input signal level and Crossover, allowing you to choose between LOW-PASS, HIGH-PASS or FLAT (FULL-RANGE) operation.
TIPS HOW IT CAN BE INSTALLED:
16 super tweeters/drivers being 4 in parallel per channel.
2 channels in 1000W Bridge in 4 Ohms (Front, Rear).
3 channels being two independent of 500W and one in Bridge of 1000W.
And in Tri-mod mode with a 4-ohm speaker in bridge + 2 horns or 2 super twitters per channel.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | HL2000.4 – 2 OHMS |
|---|---|
| Number of Channels | 4 |
| RMS Power at 2 Ohm 12.6V | 4 x 500W RMS (STEREO) |
| RMS Power at 4 Ohm 12.6V | 4 x 290W RMS (STEREO) |
| RMS Power at 2 Ohm 13.8V | 4 x 580W RMS (STEREO) |
| RMS Power at 4 Ohm 13.8V | 4 x 364W RMS (STEREO) |
| Power @ 12.6V Bridge 4 Ohms | 2 x 1000W RMS |
| Power @ 13.8V Bridge 4 Ohms | 2 x 1160W RMS |
| Supply Voltage | 9V ~ 15V DC |
| Frequency Response | 19Hz ~ 26KHz |
| Crossover Low Pass | 90Hz |
| Crossover High Pass | 90Hz |
| Signal to Noise | >90 dB |
| Harmonic Distortion | >0,3 % THD |
| Input Sensitivity | 200mV |
| Input Impedance | 15K OHMS |
| Impedance Output | STEREO: 2 OHMS / BRIDGE: 4 OHMS |
| Consumption with Signal Musical | 96A |
| Consumption with Signal Bass | 192A |
| Dimensions (H x W x D) mm | 77.5 x 235 x 240.5 mm |
| Weight Kg | 2,7 Kg |
