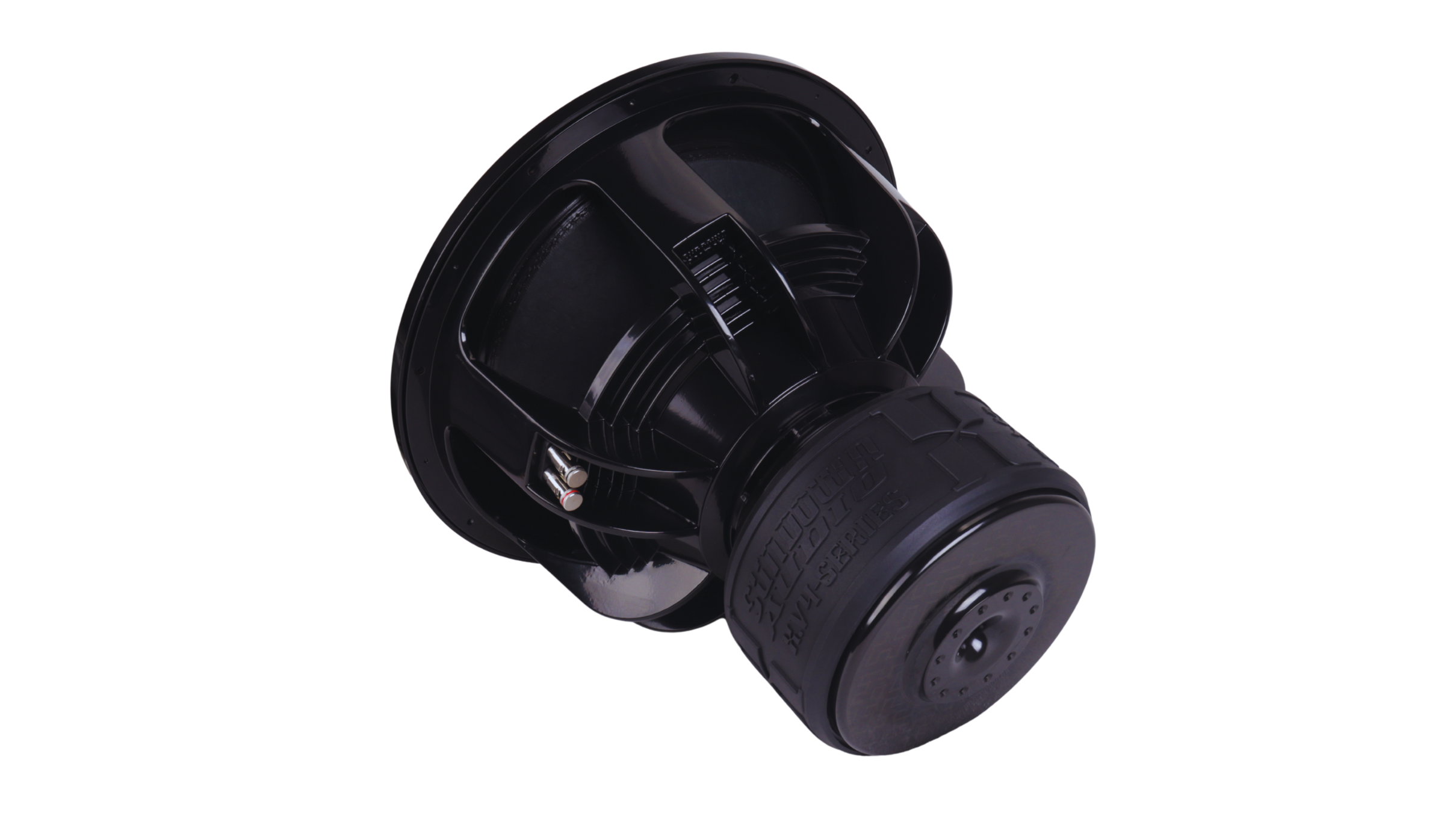

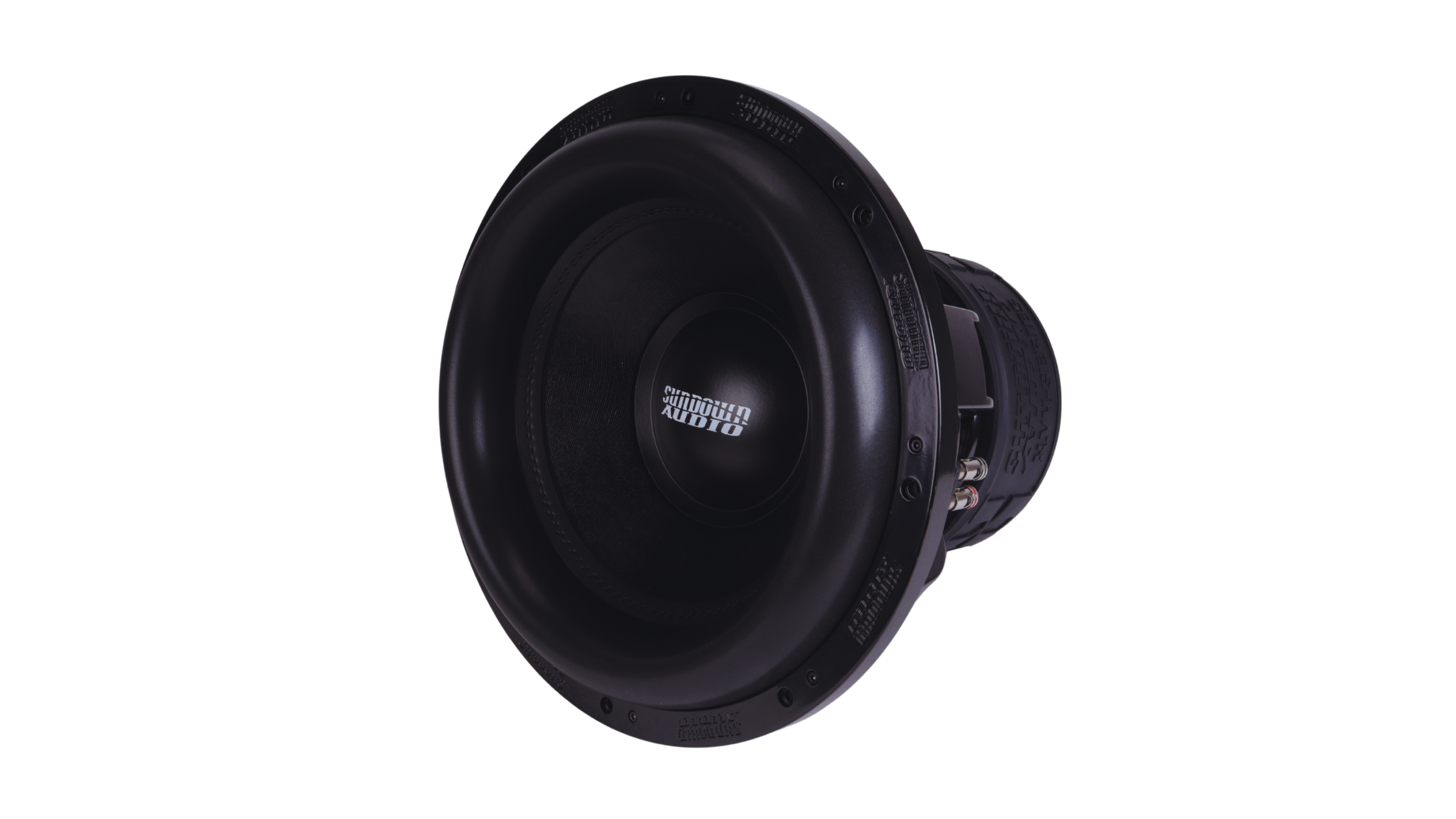

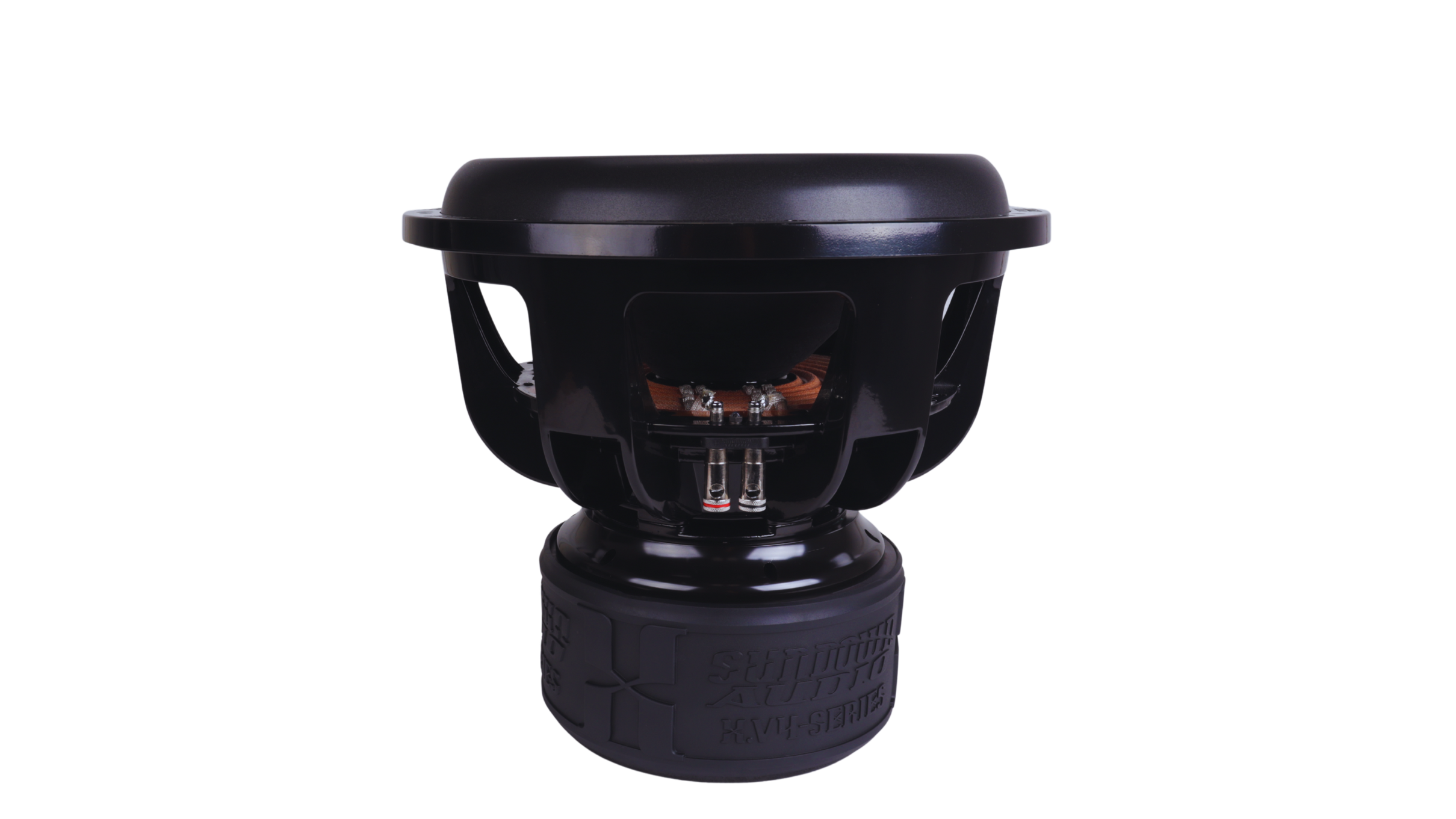

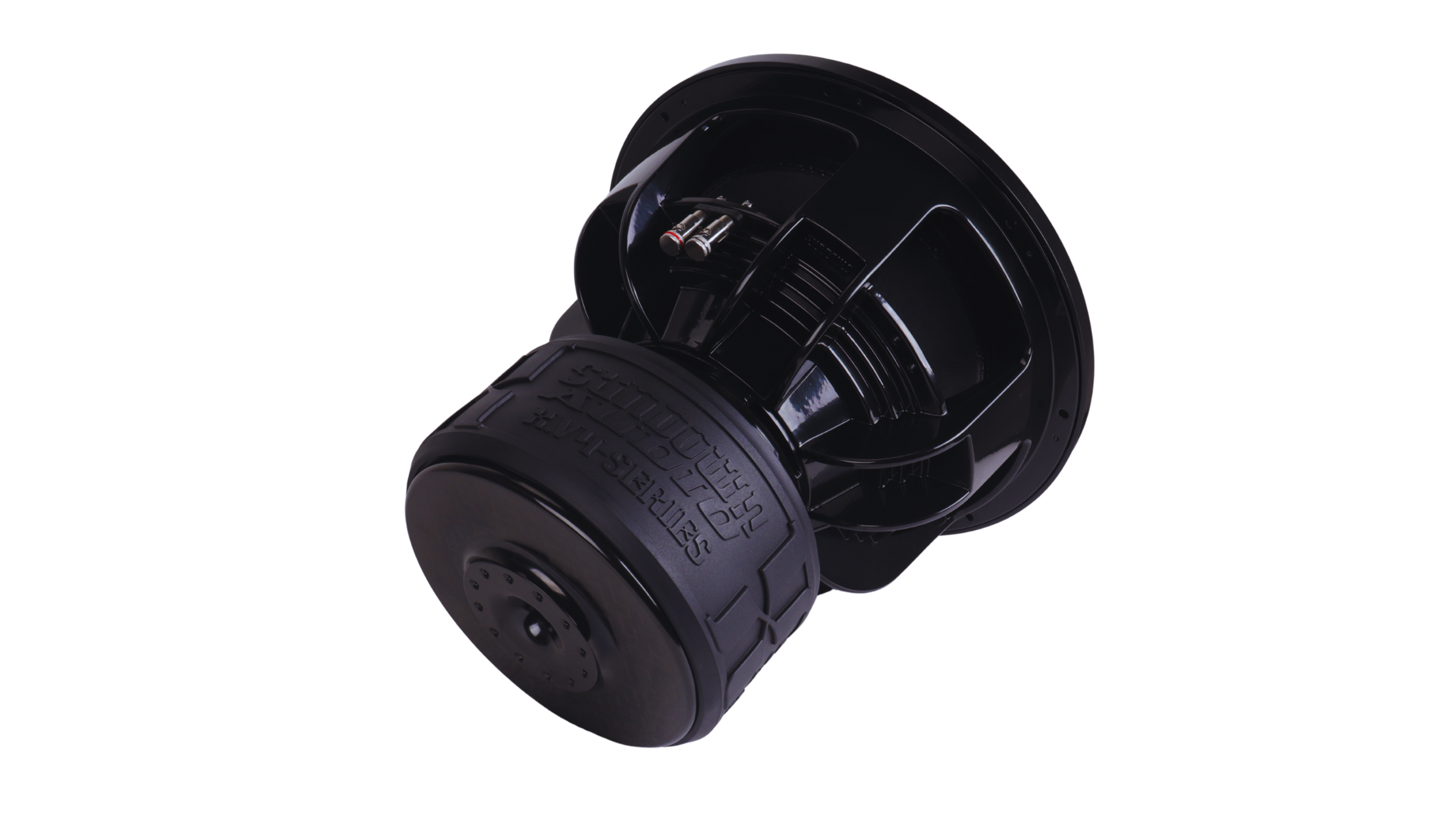

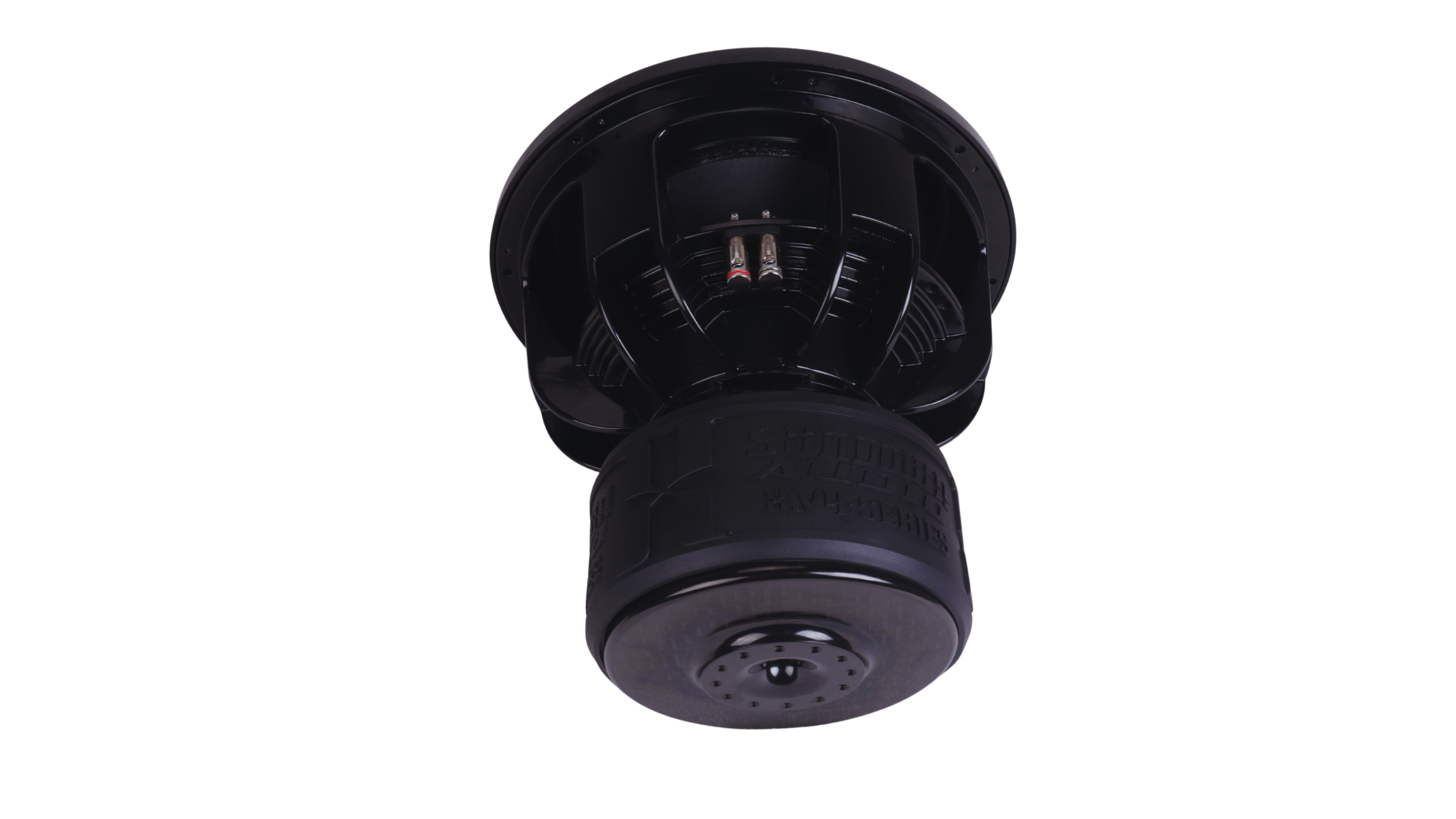

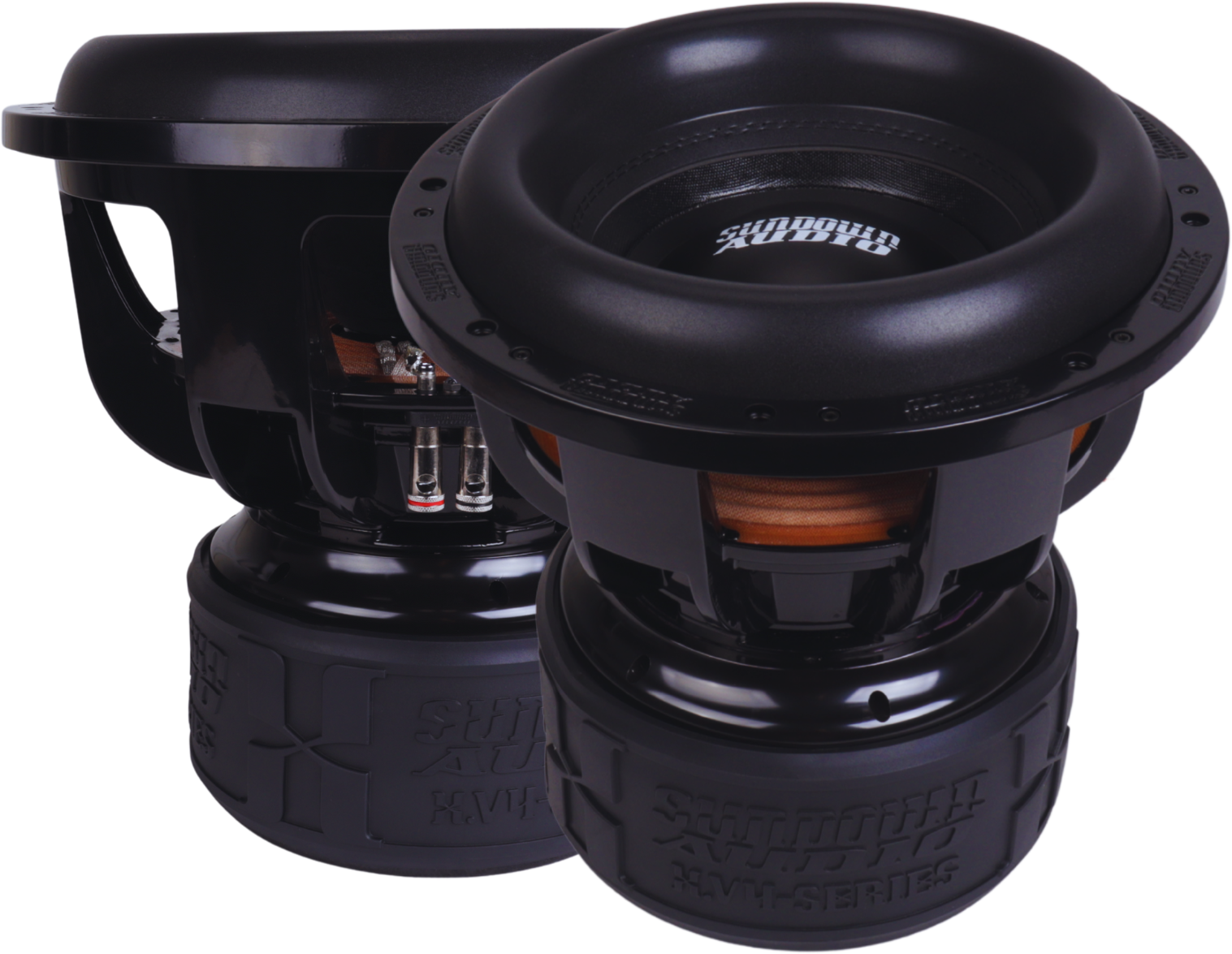

The Sundown Audio XV4 15-inch Subwoofer is designed for die-hard bassheads who crave deep, hard-hitting low frequencies with accuracy and control. Powered by Sundown’s advanced X v.4 coil design, this subwoofer handles an impressive 3000W RMS and 6000W peak power while maintaining crystal-clear performance under extreme pressure.
With a massive 72.58 square inch cone area and a durable 9.25-inch motor structure, the XV4 15-inch moves serious air, producing deeper lows and more powerful output than smaller drivers. Its 30mm Xmax ensures long, clean linear excursion, giving you chest-crushing bass with minimal distortion.
Engineered for ported enclosures, the XV4 performs best in a 4.25 cubic foot box tuned to 32 Hz — delivering the perfect blend of low-end extension, output, and sound quality. It’s also flexible enough to shine in advanced 4th order bandpass designs for builders who want even more SPL performance.
From daily drivers to full competition builds, the XV4 15-inch stands as one of the most capable and durable subwoofers in Sundown’s lineup.
Key Features
-
15-inch high-performance subwoofer with X v.4 coil technology
-
3000W RMS / 6000W Peak power handling
-
30mm Xmax for massive linear excursion and clean bass
-
Large 72.58 square inch cone area for superior air movement
-
9.25-inch motor structure for maximum strength and cooling
-
Recommended ported enclosure: 4.25 cu ft @ 32 Hz
-
Reinforced cone and suspension for high SPL output
-
Ideal for demo builds, competitive systems, and high-end daily use
Specifications
Power Ratings
-
RMS Power: 3000W
-
Peak Power: 6000W
Physical Dimensions
-
Displacement: 0.26 cu ft
-
Mounting Depth: 12.95 inches
-
Outside Diameter: 15.51 inches
-
Cutout Diameter: 13.93 inches
-
Motor Diameter: 9.25 inches
Enclosure Recommendations
-
Sealed: Not recommended
-
Ported: 4.25 cu ft @ 32 Hz
-
Recommended Port Area: 68 sq in
4th Order Bandpass
-
Sealed Side: 2.0 cu ft
-
Ported Side: 6.0 cu ft
-
Port Area: 120 sq in
-
Port Length: 8 inches
Performance Parameters
-
Xmax: 30mm
-
Sd: 72.58 sq in
-
Re: 3.2 OHM (D1) / 3.75 OHM (D2)
-
Fs: 29.91Hz (D1) / 29.51Hz (D2)
-
Qes: 0.55 (D1) / 0.49 (D2)
-
Qms: 4.87 (D1) / 4.08 (D2)
-
Qts: 0.49 (D1) / 0.44 (D2)
-
BL: 22.32 / 27.44
-
Mms: 457.51g / 538.24g
-
Cms: 61.87 / 54.02
-
Sensitivity: 85.29 dB (D1) / 85.1 dB (D2)
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Description
The Sundown Audio XV4 15-inch Subwoofer is designed for die-hard bassheads who crave deep, hard-hitting low frequencies with accuracy and control. Powered by Sundown’s advanced X v.4 coil design, this subwoofer handles an impressive 3000W RMS and 6000W peak power while maintaining crystal-clear performance under extreme pressure.
With a massive 72.58 square inch cone area and a durable 9.25-inch motor structure, the XV4 15-inch moves serious air, producing deeper lows and more powerful output than smaller drivers. Its 30mm Xmax ensures long, clean linear excursion, giving you chest-crushing bass with minimal distortion.
Engineered for ported enclosures, the XV4 performs best in a 4.25 cubic foot box tuned to 32 Hz — delivering the perfect blend of low-end extension, output, and sound quality. It’s also flexible enough to shine in advanced 4th order bandpass designs for builders who want even more SPL performance.
From daily drivers to full competition builds, the XV4 15-inch stands as one of the most capable and durable subwoofers in Sundown’s lineup.
Key Features
-
15-inch high-performance subwoofer with X v.4 coil technology
-
3000W RMS / 6000W Peak power handling
-
30mm Xmax for massive linear excursion and clean bass
-
Large 72.58 square inch cone area for superior air movement
-
9.25-inch motor structure for maximum strength and cooling
-
Recommended ported enclosure: 4.25 cu ft @ 32 Hz
-
Reinforced cone and suspension for high SPL output
-
Ideal for demo builds, competitive systems, and high-end daily use
Specifications
Power Ratings
-
RMS Power: 3000W
-
Peak Power: 6000W
Physical Dimensions
-
Displacement: 0.26 cu ft
-
Mounting Depth: 12.95 inches
-
Outside Diameter: 15.51 inches
-
Cutout Diameter: 13.93 inches
-
Motor Diameter: 9.25 inches
Enclosure Recommendations
-
Sealed: Not recommended
-
Ported: 4.25 cu ft @ 32 Hz
-
Recommended Port Area: 68 sq in
4th Order Bandpass
-
Sealed Side: 2.0 cu ft
-
Ported Side: 6.0 cu ft
-
Port Area: 120 sq in
-
Port Length: 8 inches
Performance Parameters
-
Xmax: 30mm
-
Sd: 72.58 sq in
-
Re: 3.2 OHM (D1) / 3.75 OHM (D2)
-
Fs: 29.91Hz (D1) / 29.51Hz (D2)
-
Qes: 0.55 (D1) / 0.49 (D2)
-
Qms: 4.87 (D1) / 4.08 (D2)
-
Qts: 0.49 (D1) / 0.44 (D2)
-
BL: 22.32 / 27.44
-
Mms: 457.51g / 538.24g
-
Cms: 61.87 / 54.02
-
Sensitivity: 85.29 dB (D1) / 85.1 dB (D2)
Shipping
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
