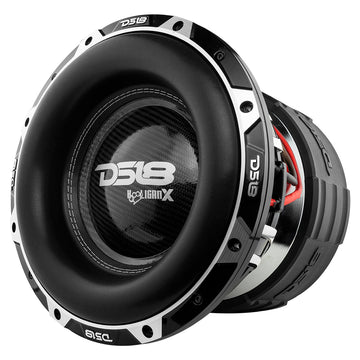

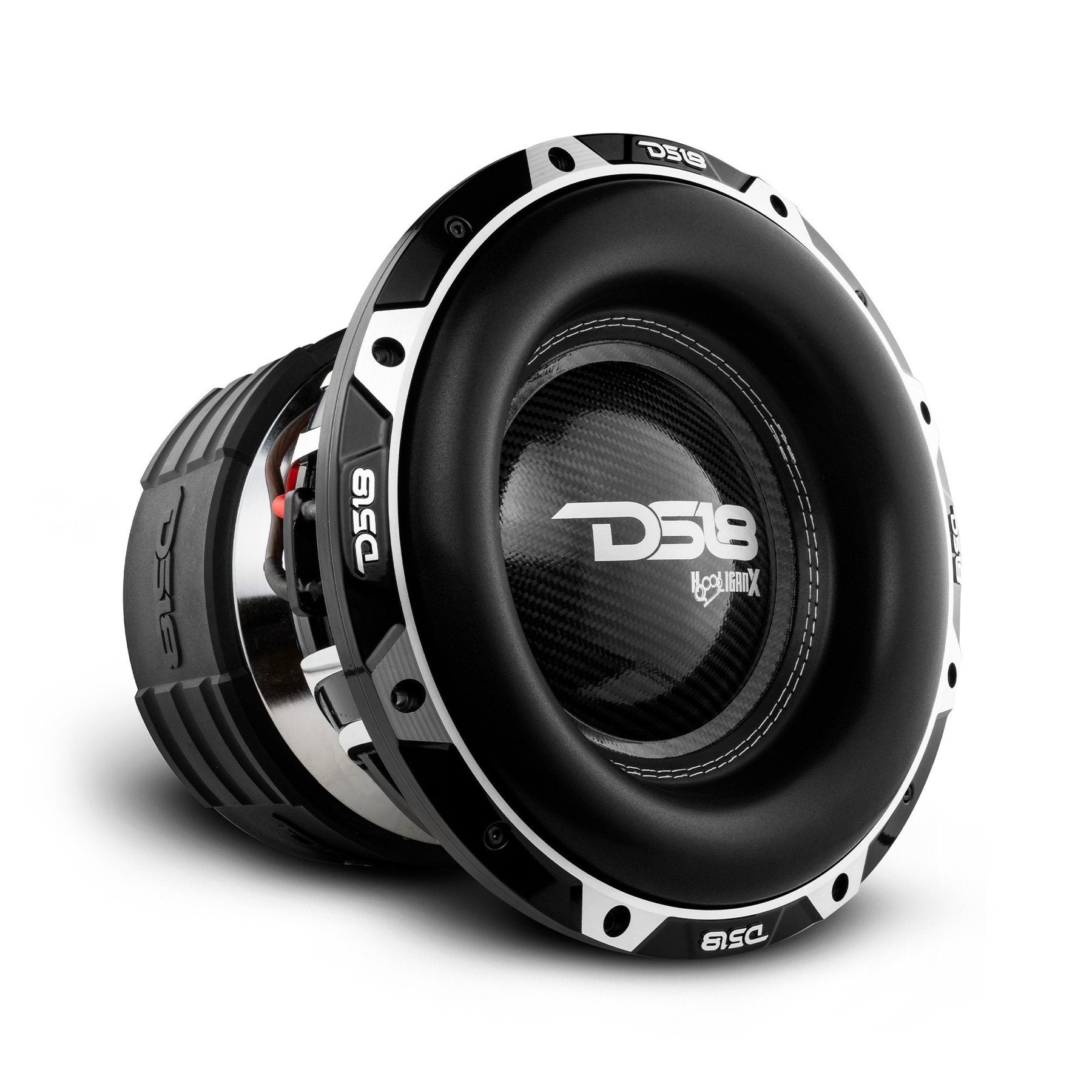

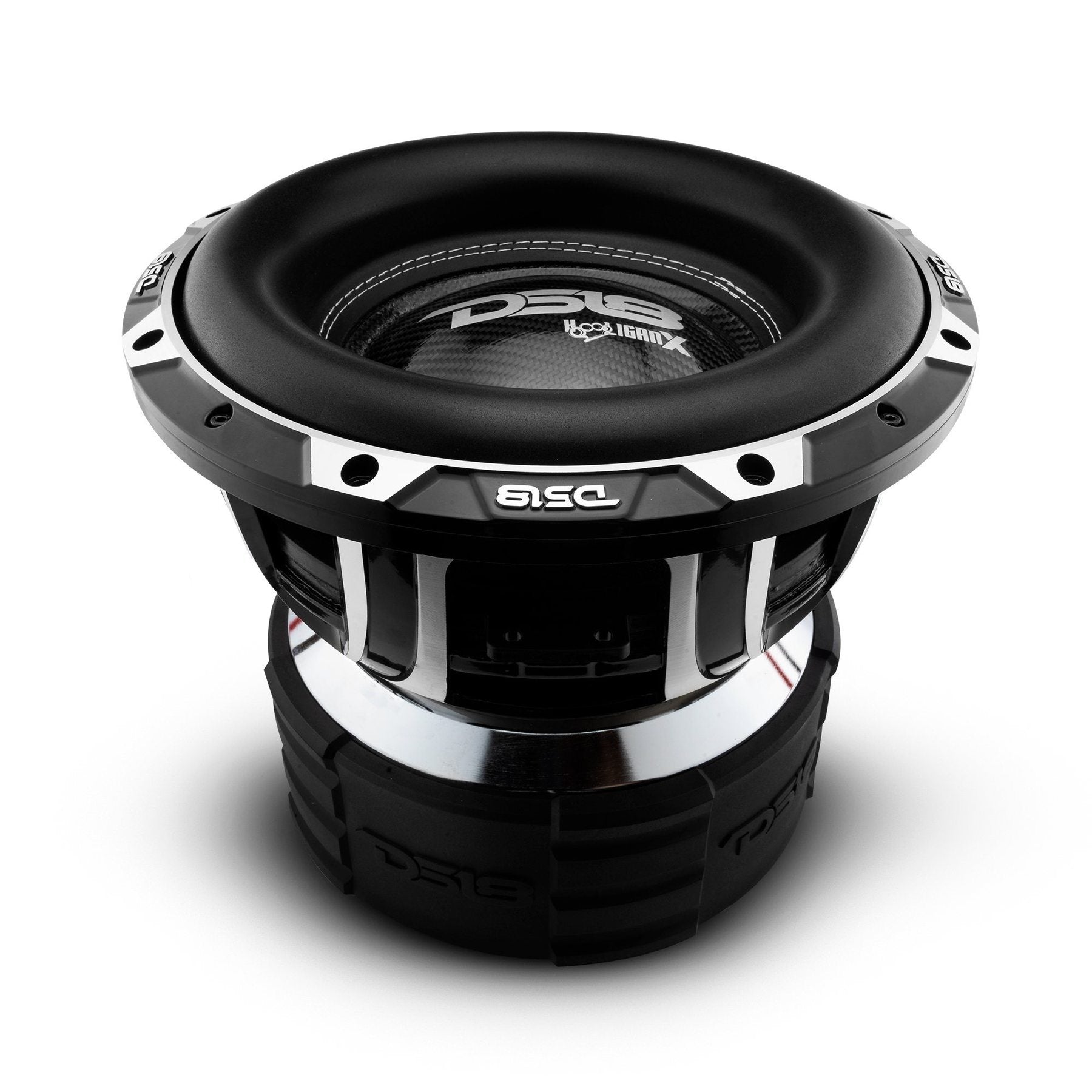

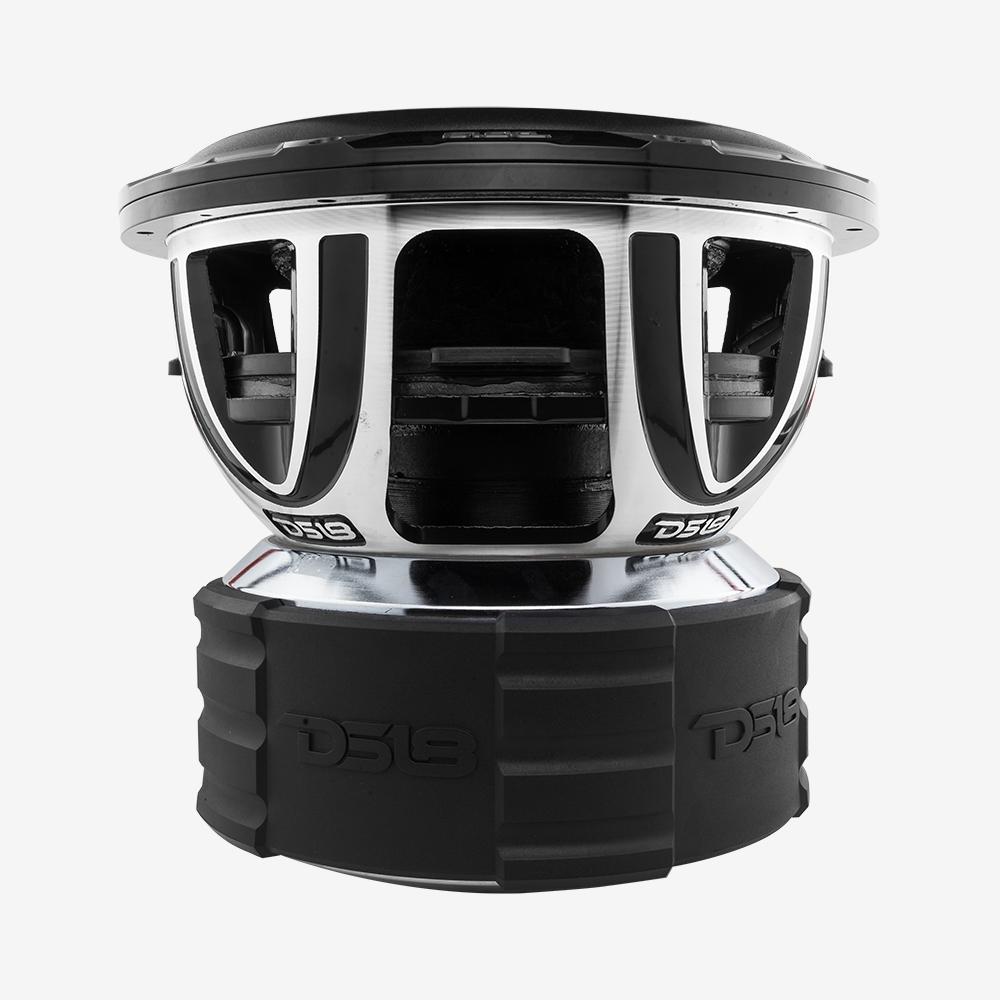

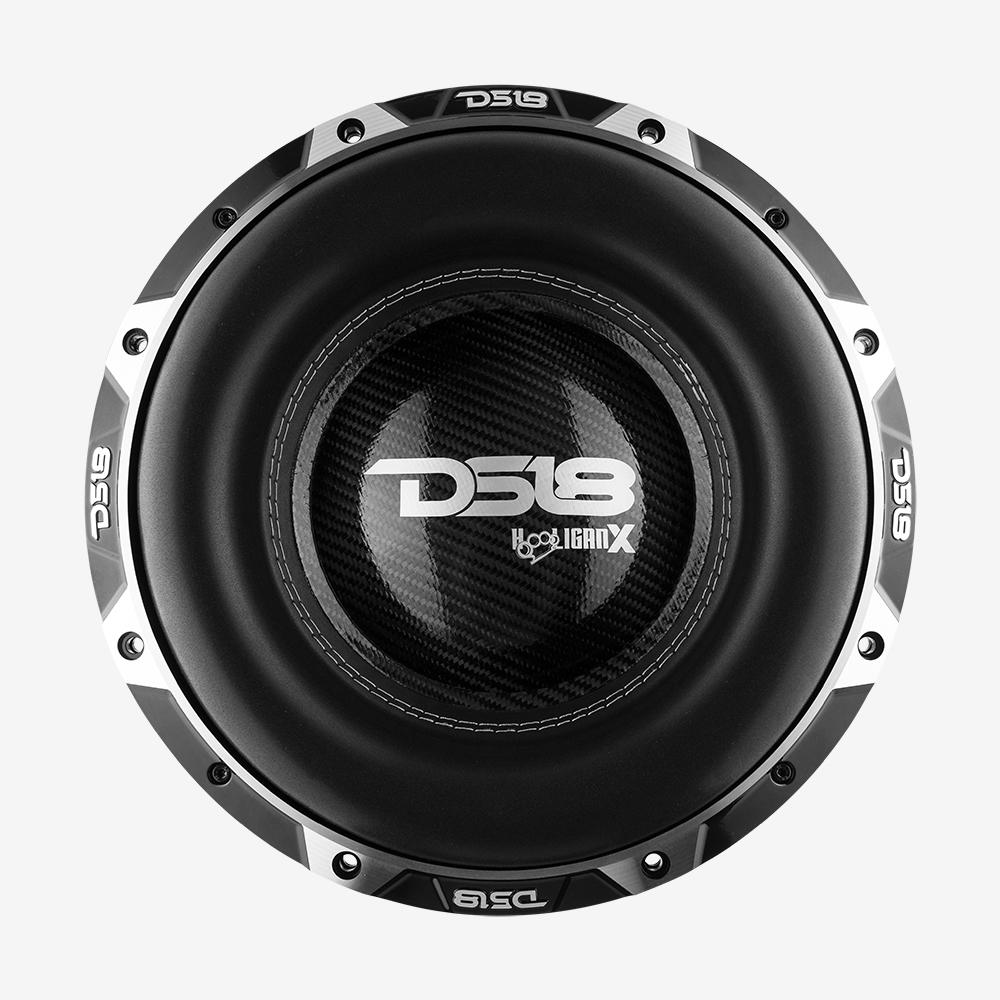

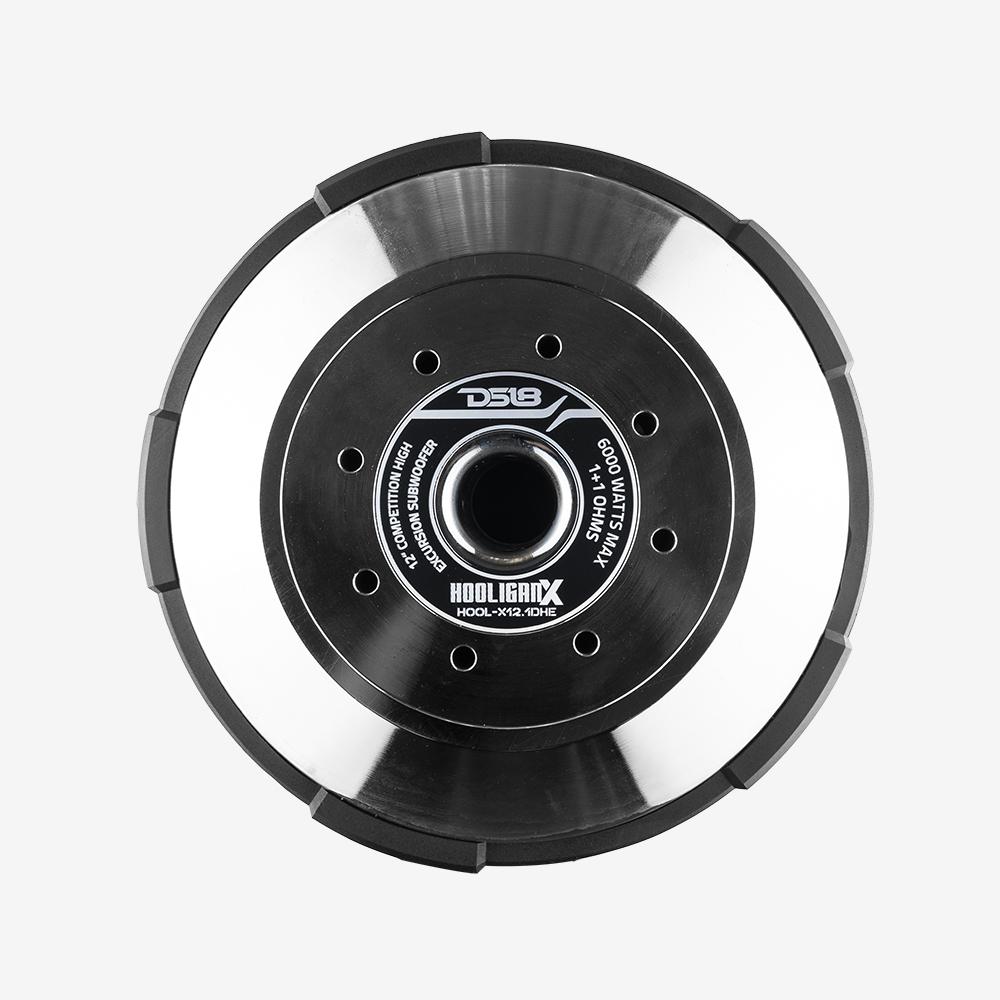

DS18 HOOL-X12.1DHE HOOLIGAN 12" High Excursion Car Subwoofer 4000 Watts Rms 4" Dvc 1-Ohm

  • $699.95
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

The DS18 Hooligan X12 has already been proven to provide top end performance and bass now for multiple years on the streets and in the lanes, hooligans have been a choice of music lovers and competitors alike.

We have taken the Traditional Hooligan and revamped it in our newest revision, the Hooligan X12 High Excursion subwoofer. This model features long throw pole, larger spider, and high excursion surround to lower the FS of the speaker making it louder at subsonic frequencies. This massive sub will be great for high powered music or SPL. A FS of 26 will ensure deep lows down to 20hz and great punchy bass up around 40hz depending on your box tuning. This subwoofer is rated at 4000w RMS and 6000w max so your vehicle will require electrical upgrades and large wire.

This sub will be friendly to 4th orders, 6th orders, ported boxes, and large sealed boxes and can be used in most applications that has room for the box. With a 59mm one way XMAX, this sub is sure to pump out extreme decibils with the proper power and box setup. We recommend a tuning of 25-35hz for ported boxes depending on your goals.

If you are looking for extreme bass and massive power look no further than the Hooligan High Excursion line! This Hooligan variant will be sure to start you on your way to high volume hairtricks and massive lows!

Highlights

  • High powered 4" Black Aluminum voice coil handling 4000w RMS and 6000w max power for heavy hitting competition bass.
  • We have added a large high excursion surround to help with the high pole to pole flex this subwoofer has giving it has a 59mm one way xmax!
  • We have also added a larger spider that helps lower the FS (Resonant Frequency) so this sub plays lower much louder than previous versions.
  • 4 inch black aluminum voice coil handling a massive 4000w RMS and 6000w peak will be sure to get this subwoofer moving with hurricane wind forces.
  • The DS18 Tooled Black basket is one of the slickest and best looking baskets on the market. Not only extremely strong but looks great so you can use plexiglass or mount inverted on your box to see the show quality frame and motor topped off by a carbon fiber dustcap.
  • Huge 500oz magnet will help the voice coil receive and handle the massive power this sub requires with high efficiency and durability.
SPECIFICATIONS
Nominal Diameter 12" / 304.8 mm
Nominal Impedance 1+1 OHMS
RMS Power Handling 4000 Watts
MAX Power Handling 6000 Watts
Sensitivity (1w/1m ) 87 dB
Frequency Response 20Hz - 500Hz
Recommended Lo Pass Crossover 80 Hz
MOTOR
Voice Coil Diameter 4” / 99.8 mm
Voice Coil Former Material Black Aluminum
Winding Material CCAW
Cone Material Non Pressed Paper
Dust Cap Material Carbon Fiber
Surround Material Foam
Basket Material Aluminum
Basket Color | Finish Glossy Black with Machined Aluminum
Magnet Material Ferrite
Magnet Weight 500 Oz
Displacement Volume 4.8L / 0.169ft3
THIELE & SMALL PARAMETERS
Equivalent Volume 23.22L / 0.82 ft3
Excursion (one way) 50 mm
Free Air Resonance 26 Hz
Mechanical Factor 2.65
Electrical Factor 0.476
Total Factor 0.444
Moving Mass 554.22 g
Compliance 0.069 mm/N
Bl Factor 24.65
Voice Coil Inductance 43.12 mH
Diaphragm Area 471.44 cm2
DC Resistance 0.9+0.9 OHM
Efficiency Bandwidth Product 54.6
RECOMMENDED ENCLOSURES
Sealed Internal Volume 17L / 0.6 ft3
Sealed Box Output Response 41 Hz
Ported Internal Volume 42.5L / 1.5 ft3
Port Size *Square (WxHxL) 1.52" x 12.28" x 31.82"
Port Tunning Frequency 30 Hz
Ported Box Output Response 25 Hz
MEASUREMENT
Overall Diameter 12.64”
Overall Depth 11.6”
Front Mount Baffle Cutout 11.2”
Mounting Depth 10”
Motor Diameter 9.96"
