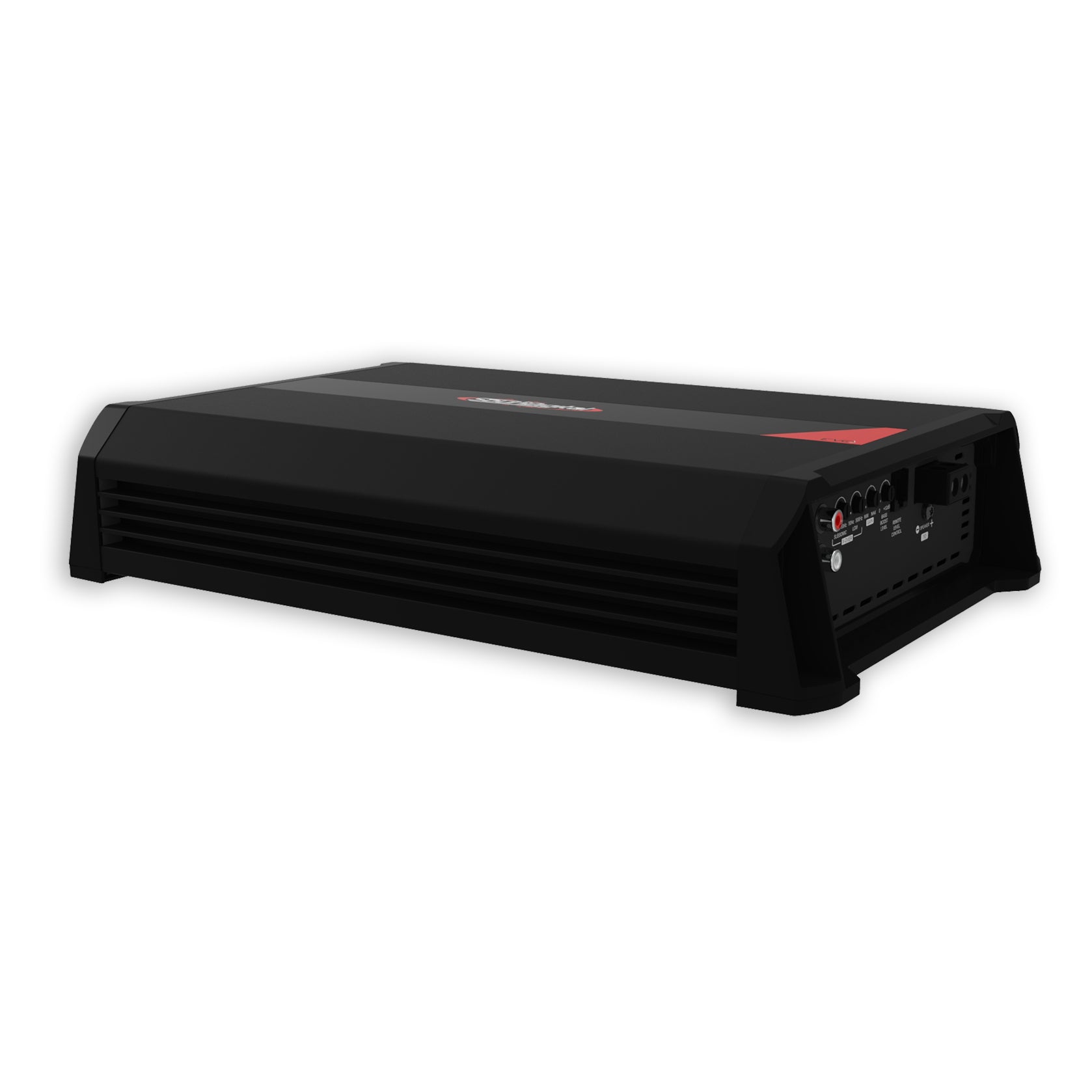

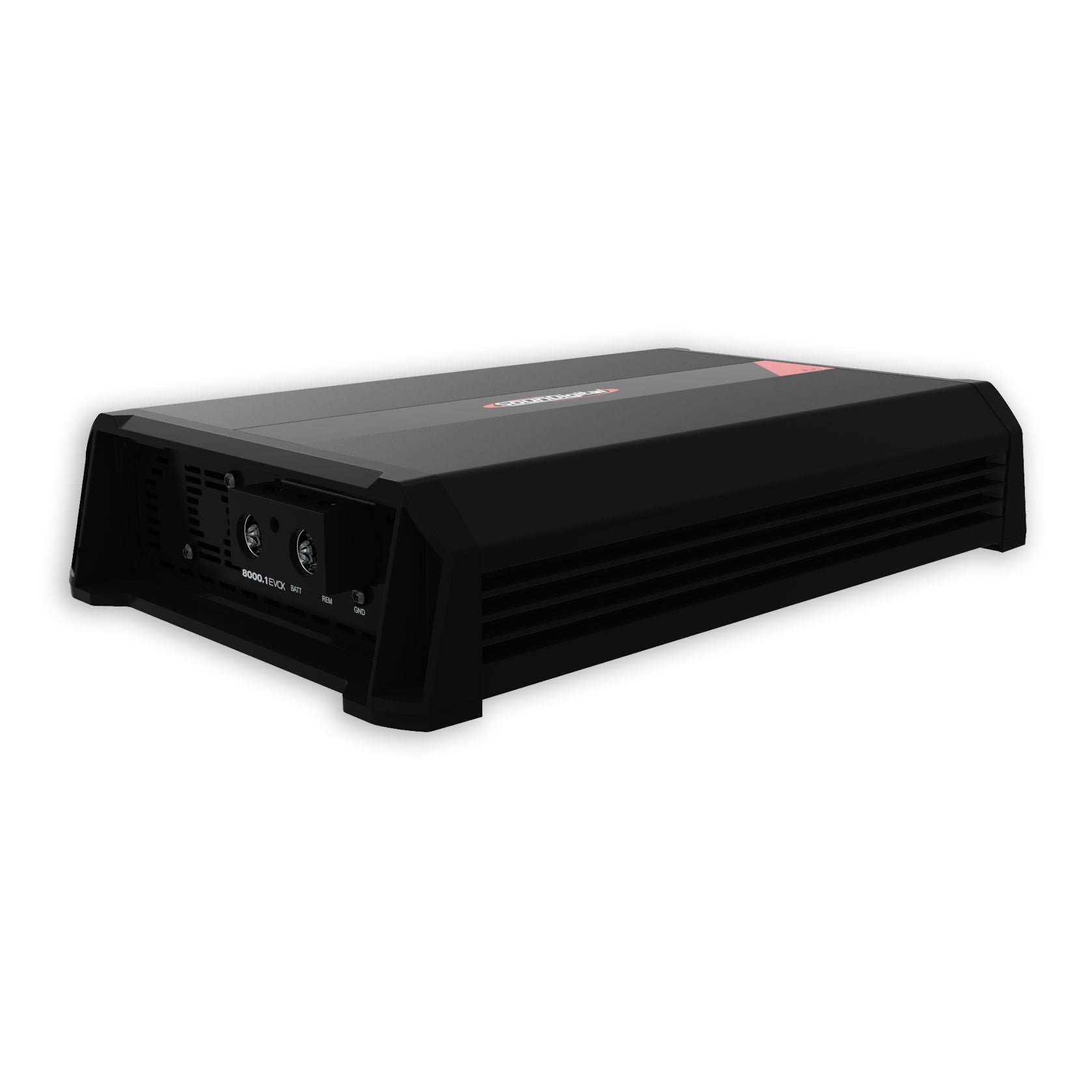

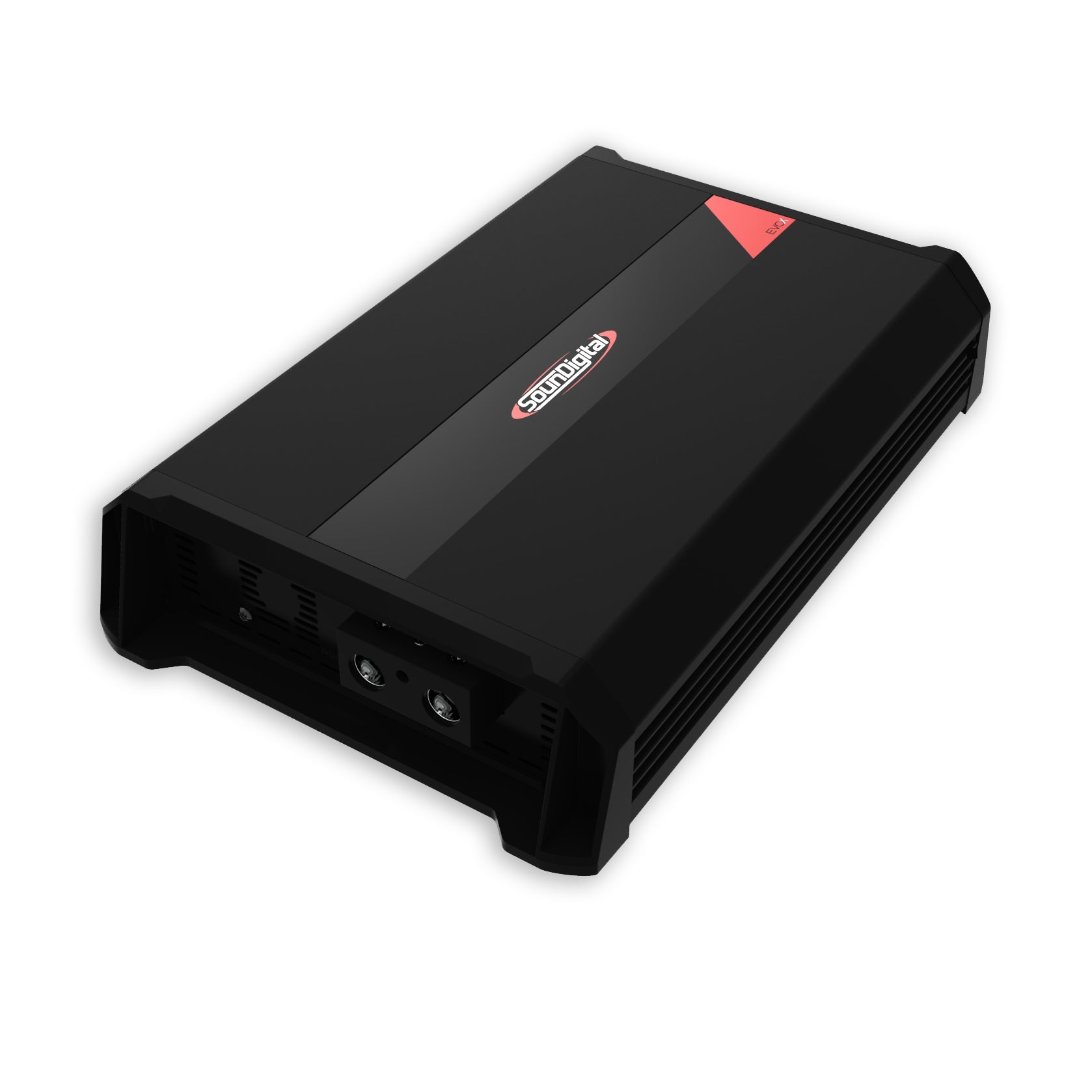

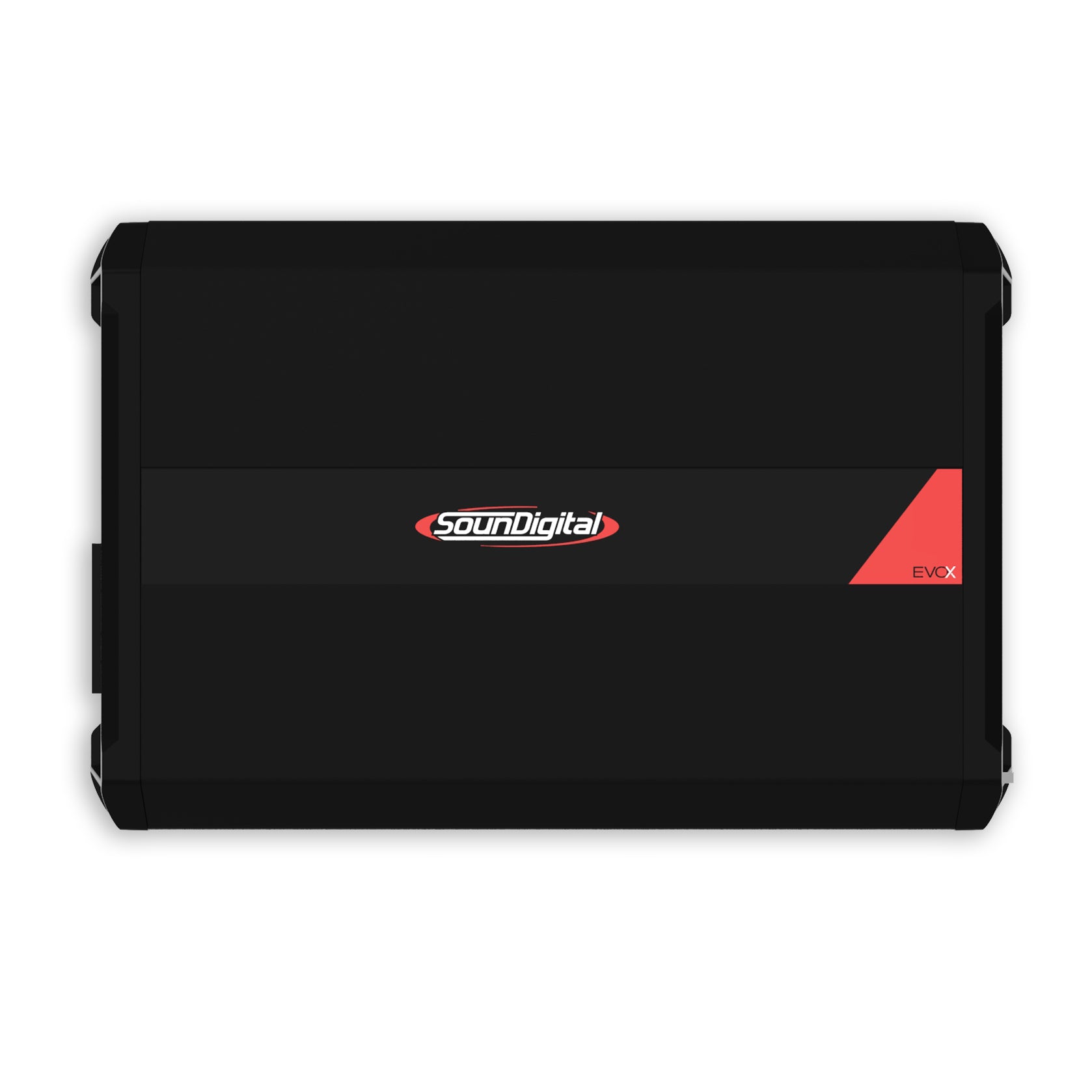

SounDigital 8000.1 EVO X 1 ohm

The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.

The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.

Dynamic Thermal Dissipation
A system that provides a faster heat exchange with the environment, increasing the efficiency of the amplifier resulting in lower levels of distortion during long working periods.

Reduced Size
The technology used in the SounDigital products brings both high performance and power in a small chassis, providing installation solutions for vehicles with limited space and finishing.

Dynamic Thermal Recovery – DTR
The DTR is a dynamic thermal recovery system which always maintains a high efficiency of the amplifier by accelerating the thermal exchange of electronic components with the heatsink.
– Aluminum heatsink
– Conductive copper layer
– Electronic component

Vibration Absorption Device
SounDigital added a new device to the EVO X products which act like springs, reducing the impact of vibration on the electronic circuit board, thereby increasing the life and reliability of the amplifiers.

TECHNICAL SPECIFICATIONS

8000.1 EVOX – 1Ω
Power @ 12.6V @ 4Ω: 1 X 3485 WRMS
Power @ 12.6V @ 2Ω: 1 X 5280 WRMS
Power @ 12.6V @ 1Ω: 1 X 8000 WRMS
Power @ 14.4V @ 4Ω: 1 X 3886 WRMS
Power @ 14.4V @ 2Ω: 1 X 5887 WRMS
Power @ 14.4V @ 1Ω: 1 X 8920 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 397 A
Current Draw (Max): 794 A
Recommended Fuse (Music): 500 A
Total Efficiency: 80%
Damping Factor: >1000
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 88dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.08%
Product Dimensions: 14.0 x 8.8 x 2.8 in

8000.1 EVOX – 2Ω
Power @ 12.6V @ 4Ω: 1 X 5280 WRMS
Power @ 12.6V @ 2Ω: 1 X 8000 WRMS
Power @ 12.6V @ 1Ω: N/A
Bridge Power @ 12.6V @ 4Ω: N/A
Bridge Power @ 12.6V @ 2Ω: N/A
Power @ 14.4V @ 4Ω: 1 X 5887 WRMS
Power @ 14.4V @ 2Ω: 1 X 8920 WRMS
Power @ 14.4V @ 1Ω: N/A
Bridge Power @ 14.4V @ 4Ω: N/A
Bridge Power @ 14.4V @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 397 A
Current Draw (Max): 794 A
Recommended Fuse (Music): 500 A
Total Efficiency: 80%
Damping Factor: >1000
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 88dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.08%
Product Dimensions: 14.0 x 8.8 x 2.8 in
