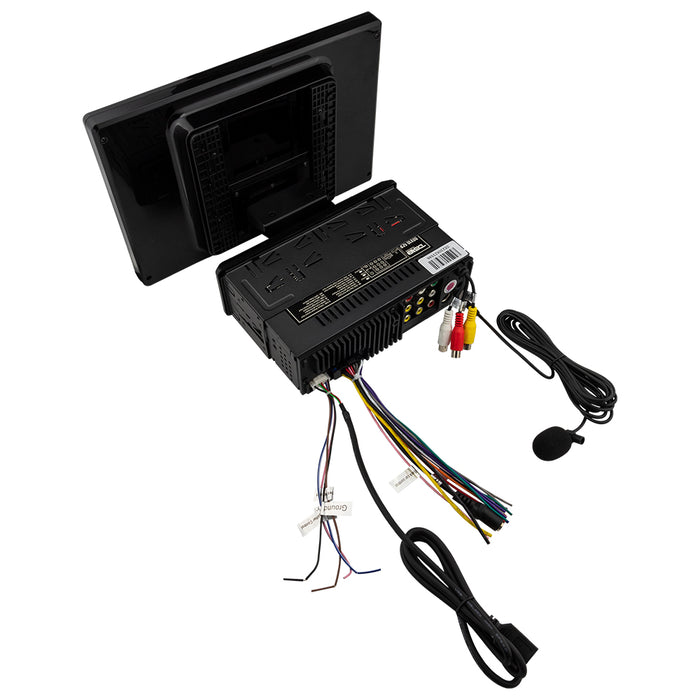

DS18 DDX10.5CP 10.5" Floating Swivel Modular Touchscreen Mechless Double-DIN Headunit with Bluetooth, Mirror Link, USB And Car play
- Product Overview
DS18’s Double Din Receivers are back and better than ever!
Everything you love about DS18’s Multimedia Receivers is now bigger than ever measuring in at 10.5” and introduces a highly anticipated new feature: the DDX10.5CP brings the Car Play feature to DS18’s long line of Multimedia Receivers.
This receiver now includes all features needed to bring all your favorite tunes with you no matter what devices you have at your disposal. The DDX10.5CP allows you to utilize Apple Car Play, Mirror Link, Bluetooth, AUX, USB, SD, Phone Controls, and all your AM/FM Stations. The SD Reader and USB Adapter can use memory cards up to 64GB.
Tune your music to your preferences with the built-in 10 Bands Graphic Equalizer that makes sure your sound is tweaked to perfection with easy access and easy to use settings.
There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 15 x 4 watts RMS and 40 x 4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4 volts so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available. Also 3 sets of preamp outputs (SUB, Front, and Rear) will be there for you to configure to your specific setup.
- 10.5-inch (16:9) 1080p (1024x600 pixels) Full HD double din touchscreen to maximize your viewing in a small space.
- Full 10 Band EQ
- 4v preamp outputs (SUB / FRONT / REAR)
- Built in Apple Car Play, Mirror Link, Wi-Fi, Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 2 rear)
- Wireless remote control for easy operation.
- RCA inputs so you can view external sources video easily via source.
- MIC in options for easy phone operation and built in controls.
- Camera Inputs included so you can plug and play most types of back up cameras.
- Apple and Android compatible.
|Rated power source:||14.4V DC (10.8V to 15V operation)|
|Maximum Current Consumption:||15 Amp|
|Dimensions (W x H x D):||Chassis: 178mm x 100mm x 138mm
Bezel frame: 170mm x 96mm x 5mm
Screen Frame: 266mm x 180mm
Weight: 1.8 Lb / 820 grams
|Screen Size / Aspect Ratio:||10.5 inch / Wide 16:9|
|Pixels:||1280 x 720|
|Display Type:||IPS / Full HD / Capacitive Touch Screen|
|Temperature Operation:||-20°C to +60°C (14°F to 140°F)|
|Maximum Power Output:||40W X 4 Ch / 4 ohm|
|Continuous Power Output:||15W x 4 Ch / 4 ohm|
|Pre-output Level:||4 Volts (Front, Rear, Subwoofer)|
|Equalizer:||10 bands (32hz, 63hz, 125hz, 250hz, 500hz, 1khz, 2khz, 4khz, 8khz, 16khz) Gain: +/- 6dB|
|Audio Control:||Volume / Balance / Fader /Loudness|
|Frequency Range:||FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz|
|Presets Memory:||30 Stations (18 FM/12 AM)|
|Region||Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia,
|Sensitivity Adjustment:||LOC (On/Off) / ST (On/Off)|
|RDS:||Yes (Radio Data System)|
|USB / SD PLAYER|
|Type / Class:||V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS|
|Format Files Supported:||RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX|
|Resolution Supported:||1080P Video|
|Memory Size Reader:||up to 64 Gb|
|Max Current Supply:||1.5 Amp (USB)|
|Number of USB Ports:||2 (1 x Front (Type-C), 1 x Rear)|
|Bluetooth Version / Services:||V5.1/ Audio Streaming / Hands Free calls|
|Camera Input:||RCA Analog Video up to HD 720p (Front/Rear)|
|Video Output:||Dual RCA (1 Volt/75 ohm)|
|AV Aux Input:||Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio|
|Microphone:||3.5mm Jack external MIC Input|
|Remote Control:||Frontal IR Receptor / Wired (3.5mm jack) Input|
