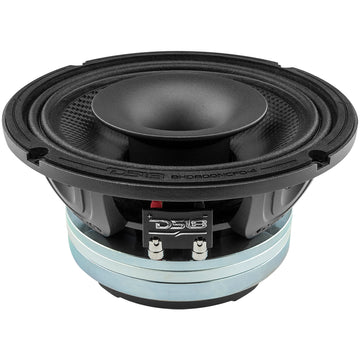

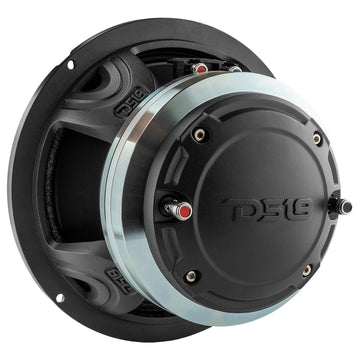

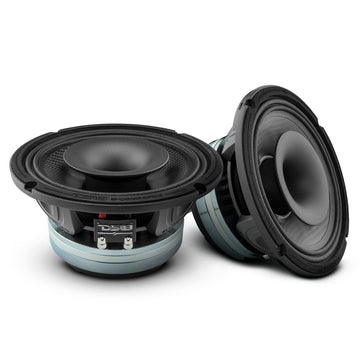

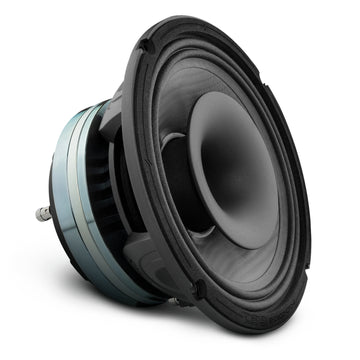

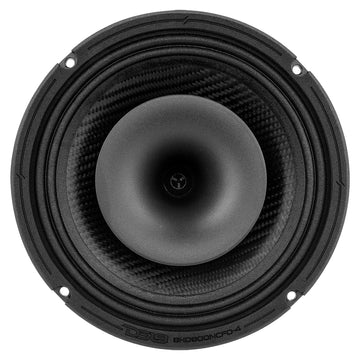

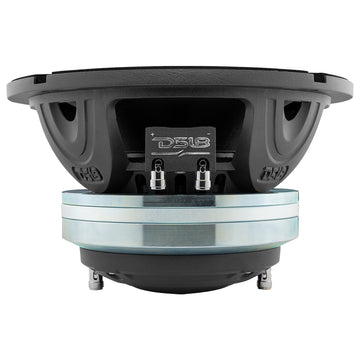

DS18 8HD800NCFD-4 8" Neodymium Coaxial Hybrid Mid-Bass Water resistant Carbon Fiber Cone Loudspeaker with Built-in Driver 400 Watts Rms 4-Ohm

  • $799.95
    Unit price per

Shipping calculated at checkout.



Get intense volume and unmatched durability with DS18’s 8HD800NCFD-4; the newest addition to our line of hybrid loudspeakers with built in compression horn driver!

DS18’s high powered hybrid pro audio speaker combines the extreme volume of our 8” mid-ranges with built-in high wattage compression drivers for the full range of frequencies on every session.

The driver produces the high range frequencies with a much higher intensity that only a pro audio driver can provide! This makes these speakers louder than any coaxial, paired with an insane driver with the vocal power of two. The Driver is backed up by a powerful carbon fiber 8-inch midrange loudspeaker that will for sure fill out the complete frequency range giving you extremely loud Mids, Voice, and Highs with extreme loudness and crystal clarity.

Add these speakers to any build! The water-resistant carbon fiber cone these speakers come equipped with protect them from elemental damage resulting from moisture and allow them to be installed in almost any build!

Get the best of both worlds combined into one pro audio hybrid speaker with the 8HD800NCFD-4!


  • Hybrid design combines high wattage midrange and driver together in one beautiful frame.
  • High volume 8" midrange and 3" driver rated at 400w RMS and 800 Max for crazy loud volume in a full range of frequencies.
  • Midrange speaker is 4 ohms and driver is 8 ohms
  • 4 terminals, two for the mid and two for the driver for multiple high power wiring options
  • Water resistant carbon fiber cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too
  • High quality design including Diecast aluminum painted black basket with DS18 molded into the frame and high quality push terminals

Great For

  • Motorcycle Audio
  • Boat Audio
  • Car Audio
  • Stunt Walls

Nominal Diameter  8" / 203mm
Nominal Impedance (Woofer / Driver) 4 Ohms / 8 Ohms
RMS Power Handling (Combined) 400W
MAX Power Handling (Combined) 800W
Sensitivity (1w/1m) (Combined) 105dB
Frequency Response (Combined) 40Hz-20KHz
Number of Ways 2 ways
Sold in Pair or Single Single
Grill Included No
RMS Power Handling  250W
MAX Power Handling  500W
Sensitivity (1w/1m)  96.5dB
Frequency Response 40Hz-10KHz
Recommended Band-Pass Crossover 80Hz-900Hz
Voice Coil Diameter 2.6" / 66mm
Voice Coil Former Material  KAPTON
Winding Material  CCAW
Cone Material Water Resistant Carbon Fiber
Surround Material Treated Cloth
Basket Material  Die Cast Aluminum
Basket Color/Finish Black Sandblasted
Magnet Material Neodymium
Magnet Size 145x8mm
AES Power handling 150W
Program Power Handling  300W
Sensitivity (1w/1m)  100.5dB
Frequency Response 315Hz-20KHz
Recommended Hi Pass Crossover 900Hz
Voice Coil Diameter 3" / 76.2mm
Voice Coil Former Material  KAPTON
Winding Material  CCA
Diaphragm Material Titanium with Polymer Edge
Magnet Material Neodymium
Horn Diameter 4.13" / 105mm
Overall Diameter 8.24" / 209.5mm
Overall Depth 5" / 127.8mm
Front Mount Baffle Cutout 7.2" / 183mm
Mounting Depth 4.63" / 117.8mm
Motor Diameter 5.7" / 145mm
