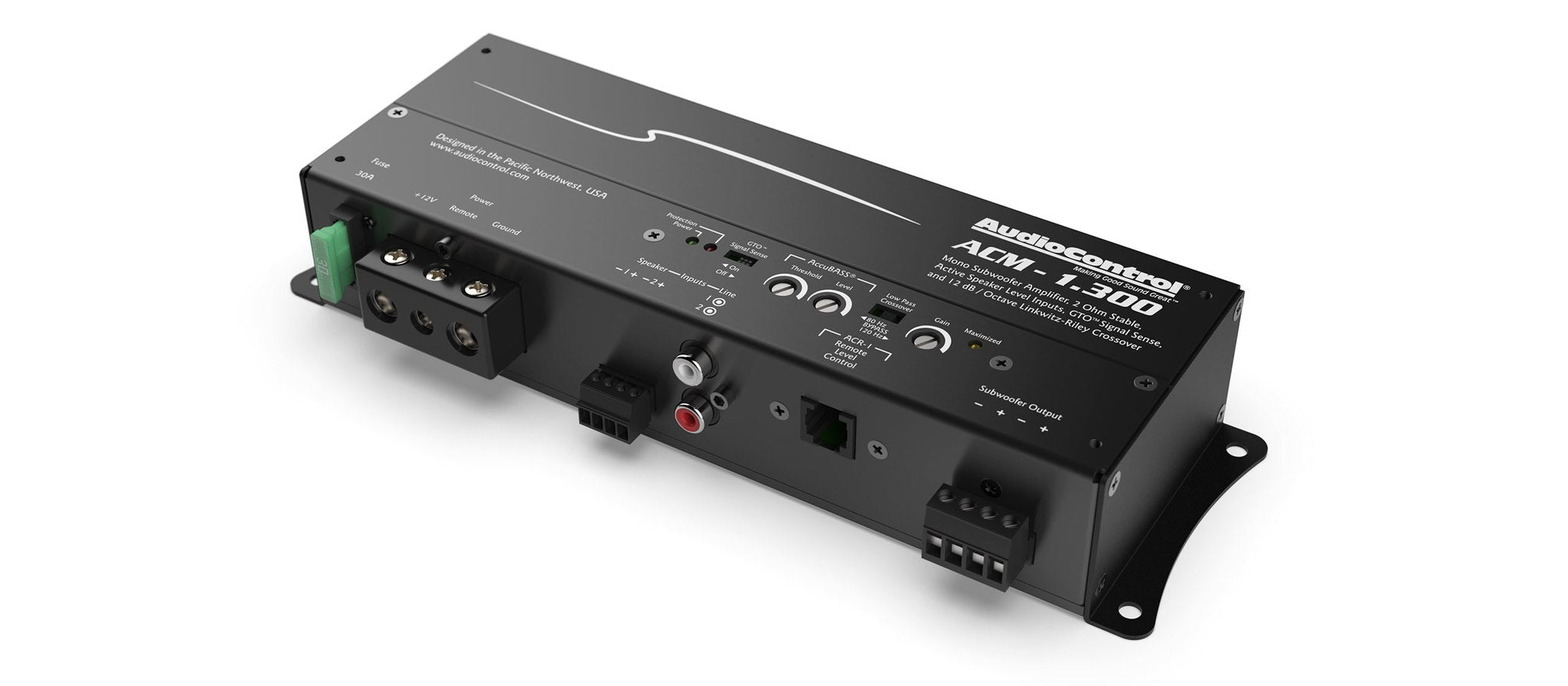

monoblock micro amplifier with accubassĀ®
ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure āMaking Good Sound Greatā can happen in any installation.
Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.
features
- 300 watts @ 2 ohms
- 175 watts @ 4 ohms
- AccuBASSĀ® Processing
- GTOTMĀ Signal Sense
- Active speaker-level inputs for OEM integration
- RCA Line Inputs
- Linkwitz-Riley Crossover
- OptionalĀ ACR-1Ā remote level control
- Reversible Cover Plate
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
specifications
inputs
- Preamp Inputs: 2 Balanced
- Preamp Input Voltage Range: 500 mV ā 6 Vrms
- Speaker Level Inputs: 2
- Speaker Level Input Voltage Range: 3 VĀ ā 40 Vrms
outputs
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ī© ā 175 W RMS
- 2 Ī© ā 300 W RMS
performance
- Frequency Response: 10 Hz ā 22 kHz
- Signal to Noise: 102 dBA, Ref 175 W @ 4 Ohm
- THD+N: < 0.01%
- Power / Ground Wire Gauge: 10 to 4 AWG wire
- Fuse Rating: 1 x 30 A
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- PFM Subsonic Filter: 24 Hz
weights & dimensions
- Dimensions: 9.4ā³W x 3.0ā³D x 1.75ā³H
- Weight: 2.1 lbs. (0.95 kg)
in the box:Ā ACM-1.300,Ā Speaker Connectors, Fuse, Manual, Warranty
