About the Product
Build Time

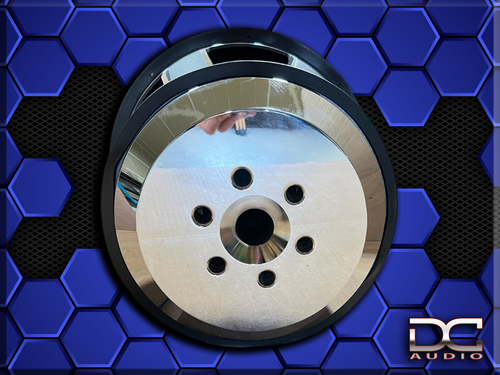

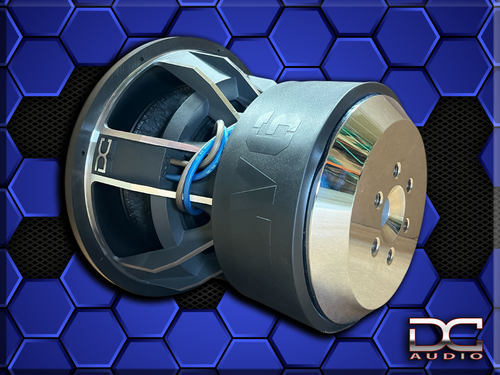

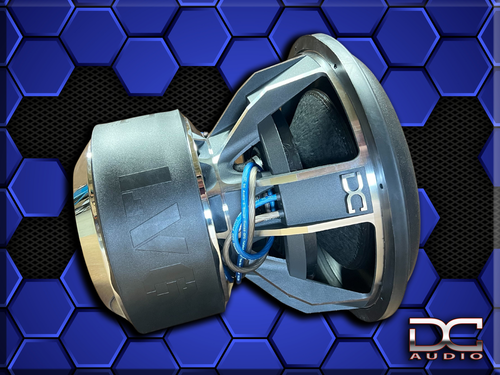

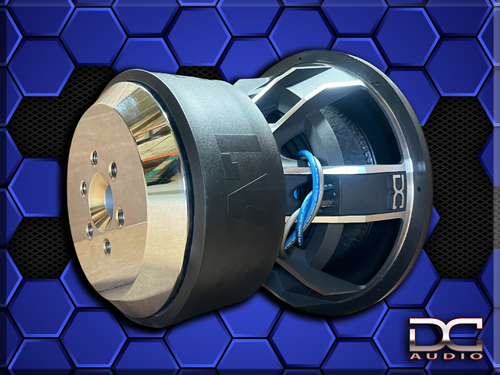

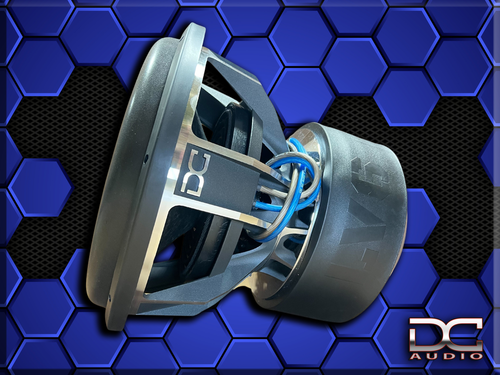

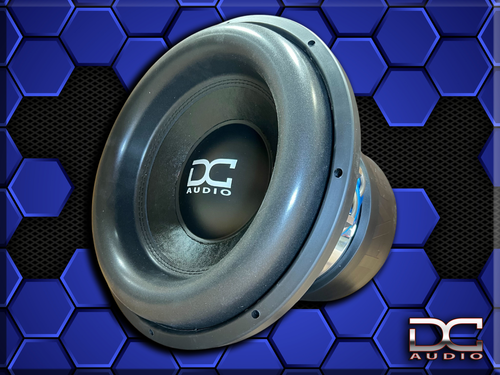

DC Audio Level 6 Elite Subwoofer
2024 Cone Change : Now Comes Stock with LR Cone / Surround
Model: level 6 M5 Elite
Sizes Available: 15 and 18 Inch Models
Power Handling: 4500 Watts RMS 9000 Watts Peak
The Lv6m5 Elite is DC Audio’s 4” Coil Beast. It has evolved into what most big builds are after, a sub that can take lots of power and Crush Out the Lows!!
With a world that has access to amplifiers of today's size we knew we needed a subwoofer that could keep up. A Large flat wound 4” Coil and 10” Spaced Spiders with Plenty of Xmax clearance is what we have to offer in the Level 6!!
The new Lv6m5 Elite will find itself at home in the SPL lanes or slappin down your hometowns cruise strip.
To really step it up with this driver take a look at the Carbon Fiber cone and dustcap options available for it.
We have changed the cosmetic look of the driver as well as added a pole vent to the motor.
Key Features
- Extremely strong kraft pulp fiber reinforced cone
- Wide Long Throw foam surround
- Dome polypropylene dust cover with White DC logo
- 10” OD Spaced Spiders
- Extra heavy duty sewn tinsel lead wire
- Cast DC Series aluminum black frame 15”/18”
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- 8 AWG Direct leads
- 4.0” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum voice coil former with high current input strips.
T/S Parameters
| 15" | 18" | |
|---|---|---|
| Mounting Depth | 12" | 13" |
| Mounting Hole Diameter | 14.25" | 16.90" |
| Outside Driver Diameter | 15.7" | 18.5" |
| VC Diameter | 4.0" | 4.0" |
| Displacement | .23 ft | .26ft |
| Power Handling rms/peak | 4500/9000 | 4500/9000 |
| Ohm Options | d.7/d1/d1.4/d2/d4 | d.7/d1/d1.4/d2/d4 |
| Sd | 815 cm | 1159 cm |
| Vas | 37.60 L | 82.29 L |
| Cms | 44.23 um/n | 41.71 um/n |
| Mms | 724 g | 762 g |
| Fs | 28.78 Hz | 28.21 Hz |
| Bl | 38.97 N/A | 37.09 N/A |
| Re | 4.07 Ohm | 3.76 Ohm |
| Le | 5.17 mH | 5.19 mH |
| Qms | 7.45 |
7.63 |
| Qes | 0.35 |
0.37 |
| Qts | 0.33 |
0.35 |
| Xmax | 32mm | 32mm |
| Ref SPL @1 watt | 85.81 db | 88.73 db |
| Suggest Sealed Box | N/A ft | N/A ft |
| Suggested Ported Box | 3.25 ft | 5.5 ft |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
Description
About the Product
Build Time
DC Audio Level 6 Elite Subwoofer
2024 Cone Change : Now Comes Stock with LR Cone / Surround
Model: level 6 M5 Elite
Sizes Available: 15 and 18 Inch Models
Power Handling: 4500 Watts RMS 9000 Watts Peak
The Lv6m5 Elite is DC Audio’s 4” Coil Beast. It has evolved into what most big builds are after, a sub that can take lots of power and Crush Out the Lows!!
With a world that has access to amplifiers of today's size we knew we needed a subwoofer that could keep up. A Large flat wound 4” Coil and 10” Spaced Spiders with Plenty of Xmax clearance is what we have to offer in the Level 6!!
The new Lv6m5 Elite will find itself at home in the SPL lanes or slappin down your hometowns cruise strip.
To really step it up with this driver take a look at the Carbon Fiber cone and dustcap options available for it.
We have changed the cosmetic look of the driver as well as added a pole vent to the motor.
Key Features
- Extremely strong kraft pulp fiber reinforced cone
- Wide Long Throw foam surround
- Dome polypropylene dust cover with White DC logo
- 10” OD Spaced Spiders
- Extra heavy duty sewn tinsel lead wire
- Cast DC Series aluminum black frame 15”/18”
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- 8 AWG Direct leads
- 4.0” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum voice coil former with high current input strips.
T/S Parameters
| 15" | 18" | |
|---|---|---|
| Mounting Depth | 12" | 13" |
| Mounting Hole Diameter | 14.25" | 16.90" |
| Outside Driver Diameter | 15.7" | 18.5" |
| VC Diameter | 4.0" | 4.0" |
| Displacement | .23 ft | .26ft |
| Power Handling rms/peak | 4500/9000 | 4500/9000 |
| Ohm Options | d.7/d1/d1.4/d2/d4 | d.7/d1/d1.4/d2/d4 |
| Sd | 815 cm | 1159 cm |
| Vas | 37.60 L | 82.29 L |
| Cms | 44.23 um/n | 41.71 um/n |
| Mms | 724 g | 762 g |
| Fs | 28.78 Hz | 28.21 Hz |
| Bl | 38.97 N/A | 37.09 N/A |
| Re | 4.07 Ohm | 3.76 Ohm |
| Le | 5.17 mH | 5.19 mH |
| Qms | 7.45 |
7.63 |
| Qes | 0.35 |
0.37 |
| Qts | 0.33 |
0.35 |
| Xmax | 32mm | 32mm |
| Ref SPL @1 watt | 85.81 db | 88.73 db |
| Suggest Sealed Box | N/A ft | N/A ft |
| Suggested Ported Box | 3.25 ft | 5.5 ft |
Shipping
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
