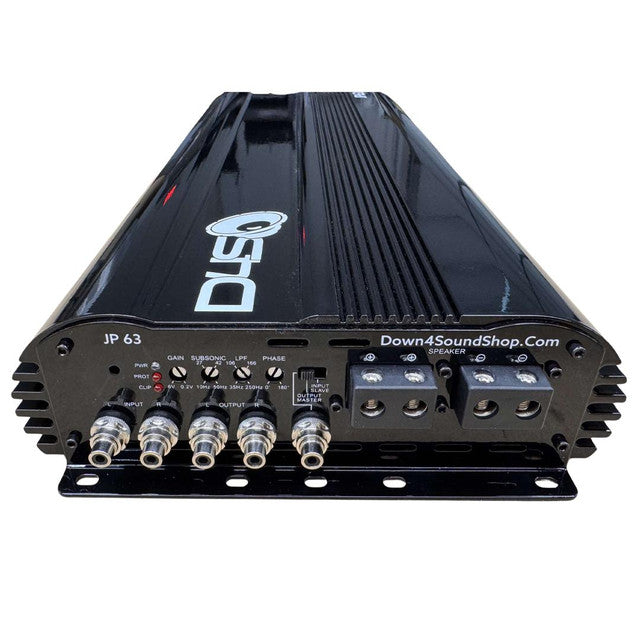

Introducing the Down4Sound JP63 BLACK, a monoblock amplifier that goes beyond the ordinary with a jaw-dropping 6300W RMS. This isn't just another 6000W amp; it's a bass powerhouse engineered for those who demand nothing less than earth-shattering, thunderous bass from their subwoofers.
Cutting-Edge Features for Unmatched Performance
-
Triple Power and Ground Inputs: To ensure unparalleled power stability, we've upgraded to three power and ground inputs.
-
Top-Grade RCA Connectors: Comes with true Tiffany RCA connectors for the highest level of signal quality.
-
Continuous Cooling Fan: The internal fan activates the moment you power up, keeping your amp cool even during the most intense sessions.
-
Color: Black
Mandatory Electrical Upgrade for Warranty
To fully harness this amplifier's extraordinary power, a comprehensive electrical upgrade is non-negotiable. Failure to do so will void the warranty. You must have:
- The Big 3
- Upgraded Alternator
- Reserve Battery(s)
Power Ratings (Tested at 14.4V)
-
1-ohm: 6300W RMS
-
2-ohm: 4300W RMS
-
4-ohm: 2300W RMS
Additional Technical Specifications
-
Frequency Response: 14Hz – 269Hz
-
Signal-to-Noise Ratio: 91dB
-
Damping Factor: < 480
-
Efficiency at 4-ohm: 97%
-
Input Sensitivity: 6V – 0.2V
-
Subsonic Filter: 10Hz – 50Hz
-
Low Pass Filter: 35Hz – 250Hz
-
Phase Control: 0 – 180 degrees
-
Strappable Connection: Yes
-
Speaker Connection: 8 GA SPEAKER WIRE
-
Fusing: 700A Total (250A for each of the three positive wires)
-
Clipping Indicator: Yes
-
BT Remote Control: Features voltage and temperature display, along with a clipping indicator
-
Power Connection for BT Remote: C-type (external battery pack or USB power required; unit does not have rechargeable batteries)
-
Speaker Output: 4-gauge
-
Power Inputs: 3 x 0-gauge
-
Operating Voltage: 9 to 16 Volts
-
Dimensions: 19.68" (L) x 9.37" (W) x 2.64" (H)
-
Country of Origin: Made in South Korea
JP63 Manual
For complete installation and operational guidance, please refer to the JP63 Manual included with your purchase.
Elevate your sound experience to unprecedented levels with the Down4Sound JP63 Amplifier in Black. Order yours now and redefine what bass means to you!
