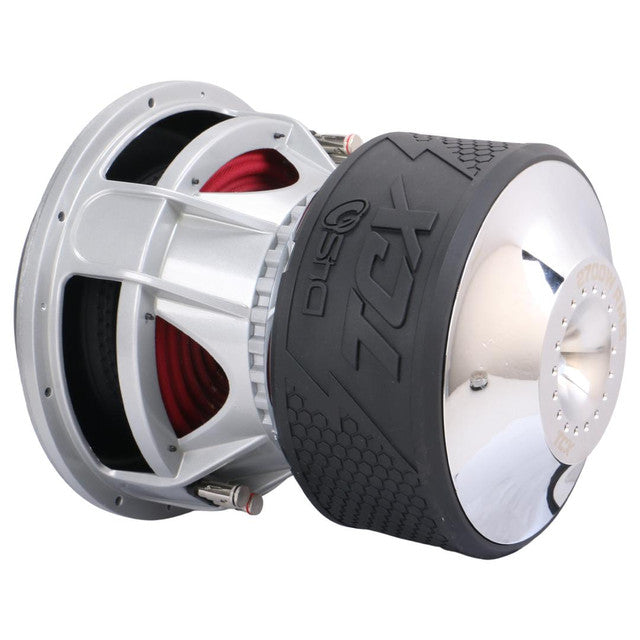

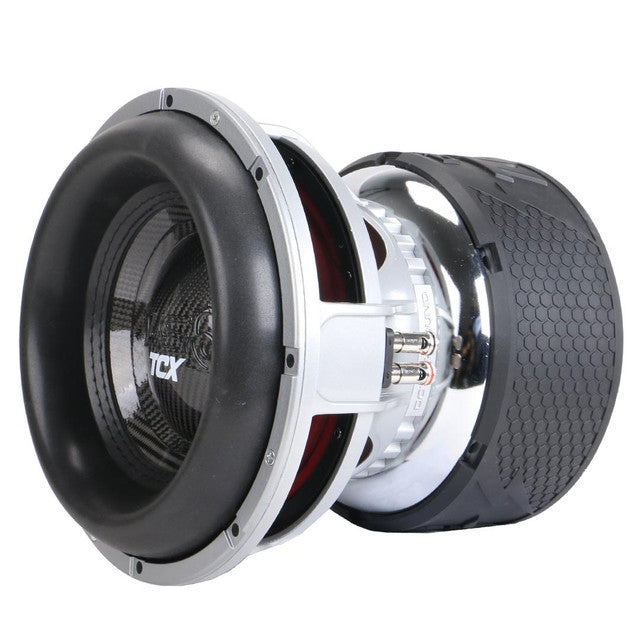

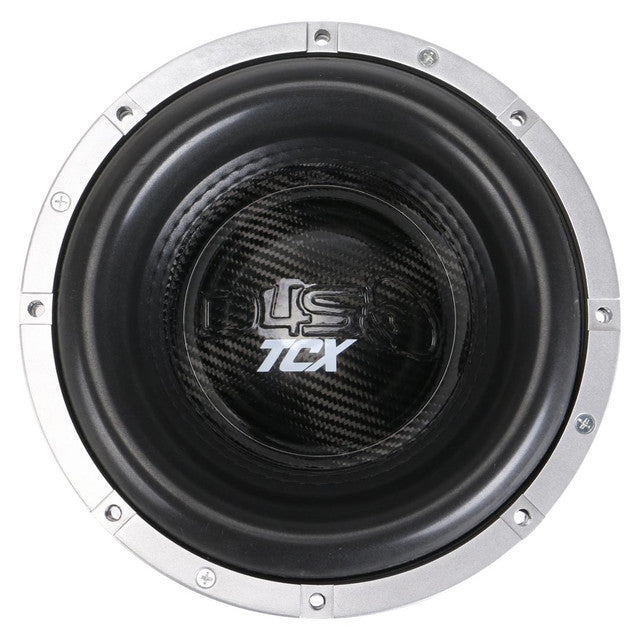

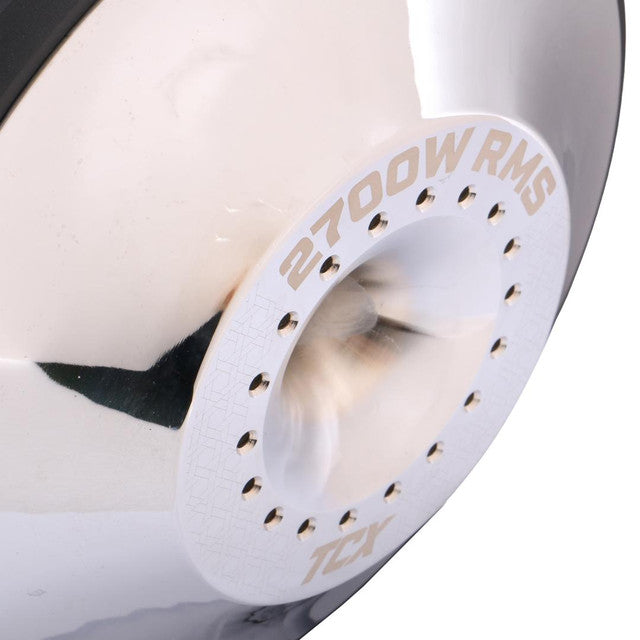

Down4Sound TCX 12” Subwoofer – Dual 1Ω (2700W RMS)
The Down4Sound TCX 12” D1 is a powerhouse built for serious output and long-term reliability. With a 3-inch 8-layer flat aluminum voice coil, carbon fiber cone, and stitched surround, this subwoofer is all about precision and punishment. Its 5-stack Y35 ferrite motor and fully vented cooling design let you pour on the power without sacrificing performance.
Whether you’re building a daily driver or demo setup, the TCX 12” delivers clean, deep, and brutally loud bass with impressive control.
Key Features:
-
5-stack Y35 ferrite motor for massive magnetic force
-
3” 8-layer flat aluminum voice coil for high thermal capacity
-
Carbon fiber cone with stitched surround for long-lasting durability
-
Fully vented backplate, pole piece, and motor for max cooling
-
Extended pole piece ensures linear, controlled excursion
-
Built for serious output and reliability in high-power systems
Specifications:
-
RMS Power Handling: 2700W RMS
-
Voice Coil: 3” 8-layer flat aluminum (bifilar)
-
Impedance: Dual 1Ω (D1)
-
Cutout Diameter: 283 mm / 11.14”
-
Mounting Depth: 311.15 mm / 12.25”
-
Weight: 104.3 lbs
-
Xmax: ~35 mm (one-way)
-
Motor Size: 240 mm / 9.45”
-
BL: 20.200 T·m
-
Resonance Frequency (Fs): 36.45 Hz
-
Sensitivity: 83.5 dB
-
Recommended Ported Enclosure: 2.0–2.5 cu ft tuned to 32 Hz
Precision Engineering:
With a BL of 20.200 T·m and an Fs of 36.45 Hz, the TCX 12” D1 delivers deep, clean lows and consistent performance. Its triple-spider suspension and rigid cone keep it tight and responsive, even when tuned low or pushed to the limit.
Summary:
The TCX 12” D1 is built for bass lovers who demand both output and control. It’s a rugged, precision-tuned sub that thrives in any high-performance setup.
