DS18 EXL-XX12.4DHE 12" High Excursion Car Subwoofer 4000 Watts Max 4-Ohm DVC

  • $449.95
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX12.4DHE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.

Highlights

  • High Excursion surround for a very high amount of xmax.
  • Great power handling of 2000w RMS and 4000w max.
  • Three inch black aluminum voice coil for high power handling and great efficiency.

high excursion car subwoofer

high excursion car subwoofer

high excursion car subwoofer

high excursion car subwoofer

Nominal Diameter 12
Nominal Impedance 4 + 4 Ohms
RMS Power Handling 2000W
MAX Power Handling 4000W
Sensitivity (1w/1m) 87 dB
Frequency Response 20Hz -1.3KHz
Recommended Lo Pass Crossover 80 Hz
Motor:
VC Diameter / 75.6mm
VC Former Material Black Aluminum
Winding Material CCAW
Cone Material Paper
Dust Cap Material Glass Fiber
Surround Material Foam
Basket Material Aluminum
Basket Color/Finish Black
Magnet Material Ferrite
Magnet Weight 306 Oz
Displacement Volume 3.26L
Thiele & Small Parameters
Equivalent Vol Vas 20.738L
Excursion(one way) Xmax 42 mm
Free Air Resonance Fs 41.3 Hz
Mechanical Factor Qms 4.525
Electrical Factor Qes 0.511
Total Factor Qts 0.459
Moving Mass Mms 285.433 g
Compliance Cms 0.026 mm/N
Bl Factor BL 17.166
VC Inductance Le 9.8 mH
Diaphragm Area Sd 433.74 cm²
Dc Resistance Re 3.6 + 3.6 ohms
Efficiency Bandwidth Product EBP 80.8

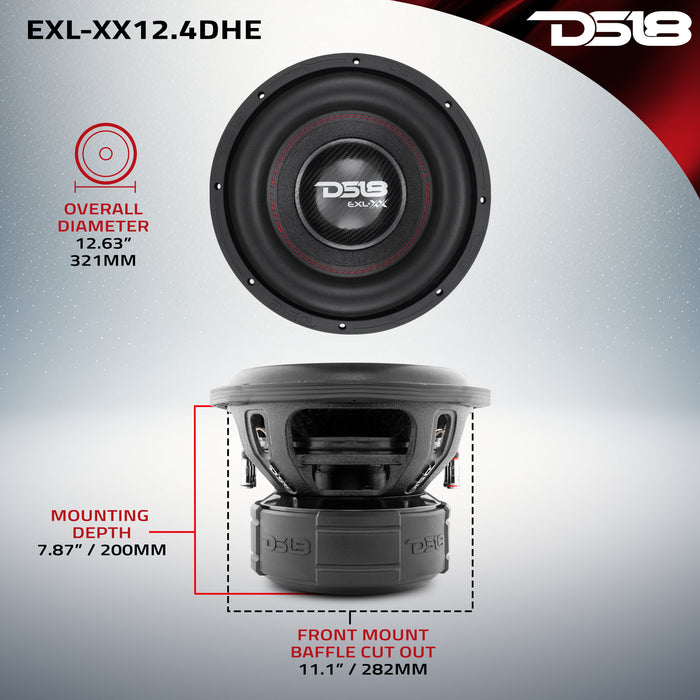

Measurements
Overall Diameter 12.63" / 321mm
Overall Depth 9.25"/235mm
Front Mount Baffle Cutout 11.1" / 282mm
Mounting Depth 7.87" / 200mm
Motor Diameter 8.89" / 226mm
