Ds18 EXL-X10.4D - Exl 10 4 ohm

DS18 EXL-X 10" Subwoofer 1700 Watts Dvc 4-Ohms

  • $344.95
    Unit price per
Shipping calculated at checkout.

Apply For Financing

DESCRIPTION

DS18 exl 4 ohm 10.4D Details:

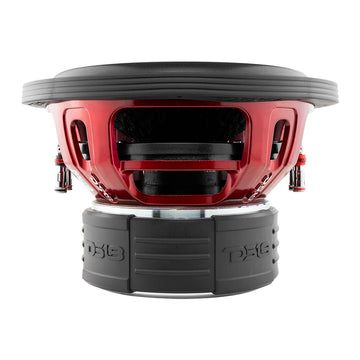

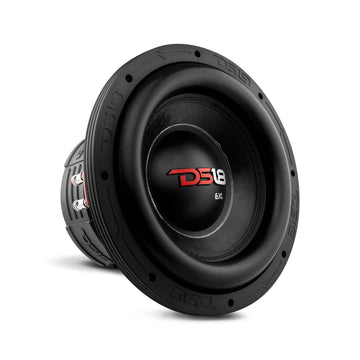

Ds18 EXL-X10.4D is a competition-grade subwoofer, which is one of the top of the line subwoofers in the market. It has a red color aluminum basket with a large foam edge and paper with a glass fiber cone. Ds18 exl x 10.4D 4 ohm subwoofer has 180 oz High-Strength Double Ferrite Magnet, 2-Layer Conex Spider, and 2.5" Black Aluminum 4-Layer Voice Coil. It has a RMS power of 850 Watts and peak power of 1750 watts. It has an impedance of dual 4 ohm and sensitivity of 88bB.

DBs Enclosure Recommendations

Sealed: .8 cu-ft.
Ported: 1.0 - 1.25 cu-ft. Tuned to 36Hz

EXL X (Extremely loud) competition grade subwoofers features DS18 private red aluminum basket, fiber glass dust cap, 2.5" voice coils and 1750 watts of power, with the combination of modern technologies and unique engineering solutions this subwoofer is the evidence of DS18 technological and methodical dominance, EXL X is the best choice to enter the bass head world in the lanes or to play daily music.

Download Manual

Ds18 EXL-X10.4D Specifications

Model: EXL-X10.4D
Type: Subwoofer
Size: 10"
RMS Power: 850W
MAX Power: 1750W
Impedance: 4 + 4 Ohm
Voice Coil Size: 2.5"
Magnet: Ferrite
Magnet Weight: 180oz
Frequency Response: 35Hz - 1.2KHz
Materials
Frame: DS18 Private Red Aluminum
Surround: Foam Edge
Dust Cap: Glass Fiber
Voice Coil Former Material: Black Aluminum
Diameters
Mounting Cut-Out: 9.4"
Mounting Depth: 6.29"
Overall Diameter: 10.9"
Optimum Sealed 0.8
Optimum Ported 1.2
Port Tune 36Hz
Specifications
Model: EXL-X10.4D
Type: Subwoofer
Size: 10"
RMS Power: 850W
MAX Power: 1750W
Impedance: 4 + 4 Ohm
Voice Coil Size: 2.5"
Magnet: Ferrite
Magnet Weight: 180oz
Frequency Response: 35Hz - 1.2KHz
Materials
Frame: DS18 Private Red Aluminum
Surround: Foam Edge
Dust Cap: Glass Fiber
Voice Coil Former Material: Black Aluminum
Diameters
Mounting Cut-Out: 9.4"
Mounting Depth: 6.29"
Overall Diameter: 10.9"
Optimum Sealed 0.8
Optimum Ported 1.2
Port Tune 36Hz
