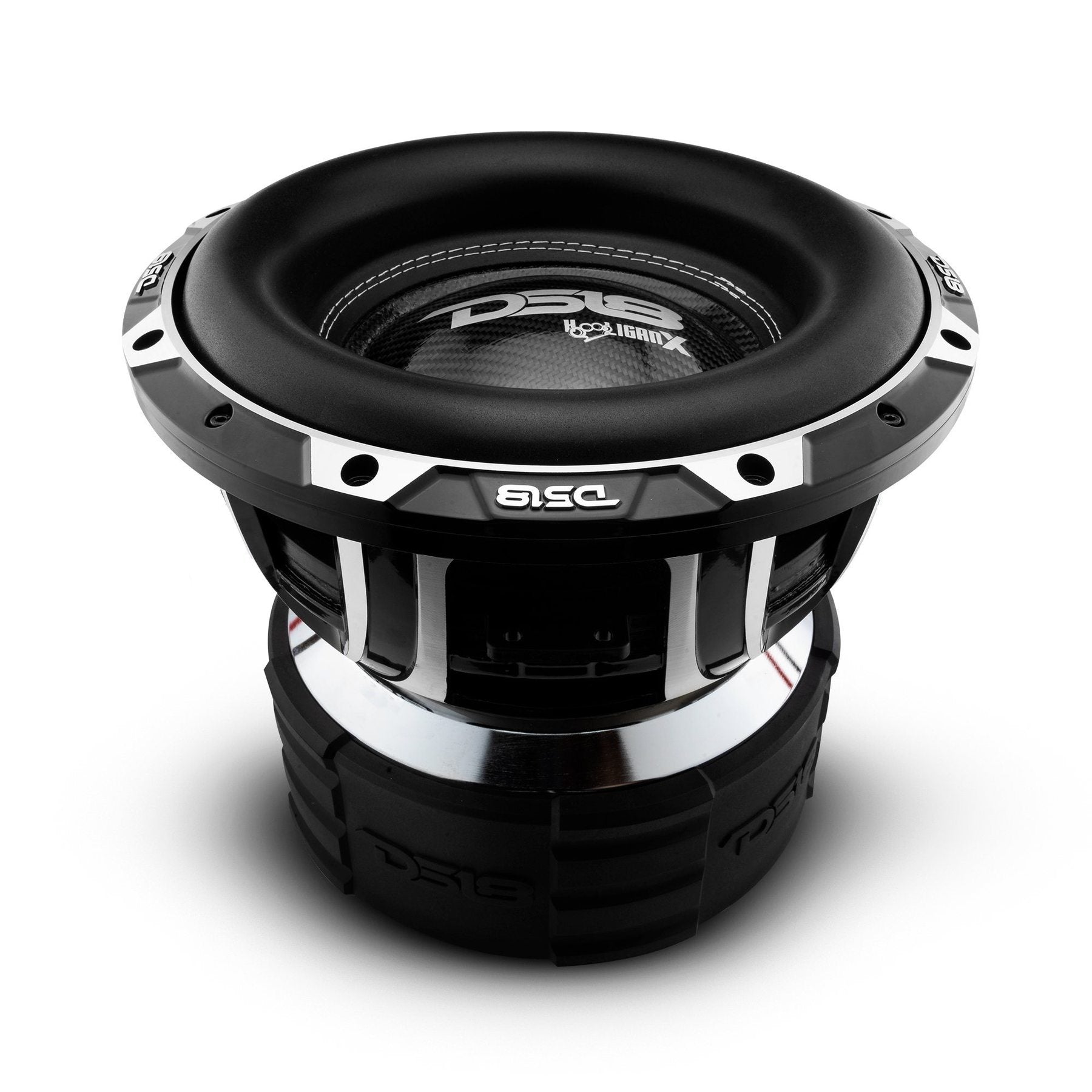

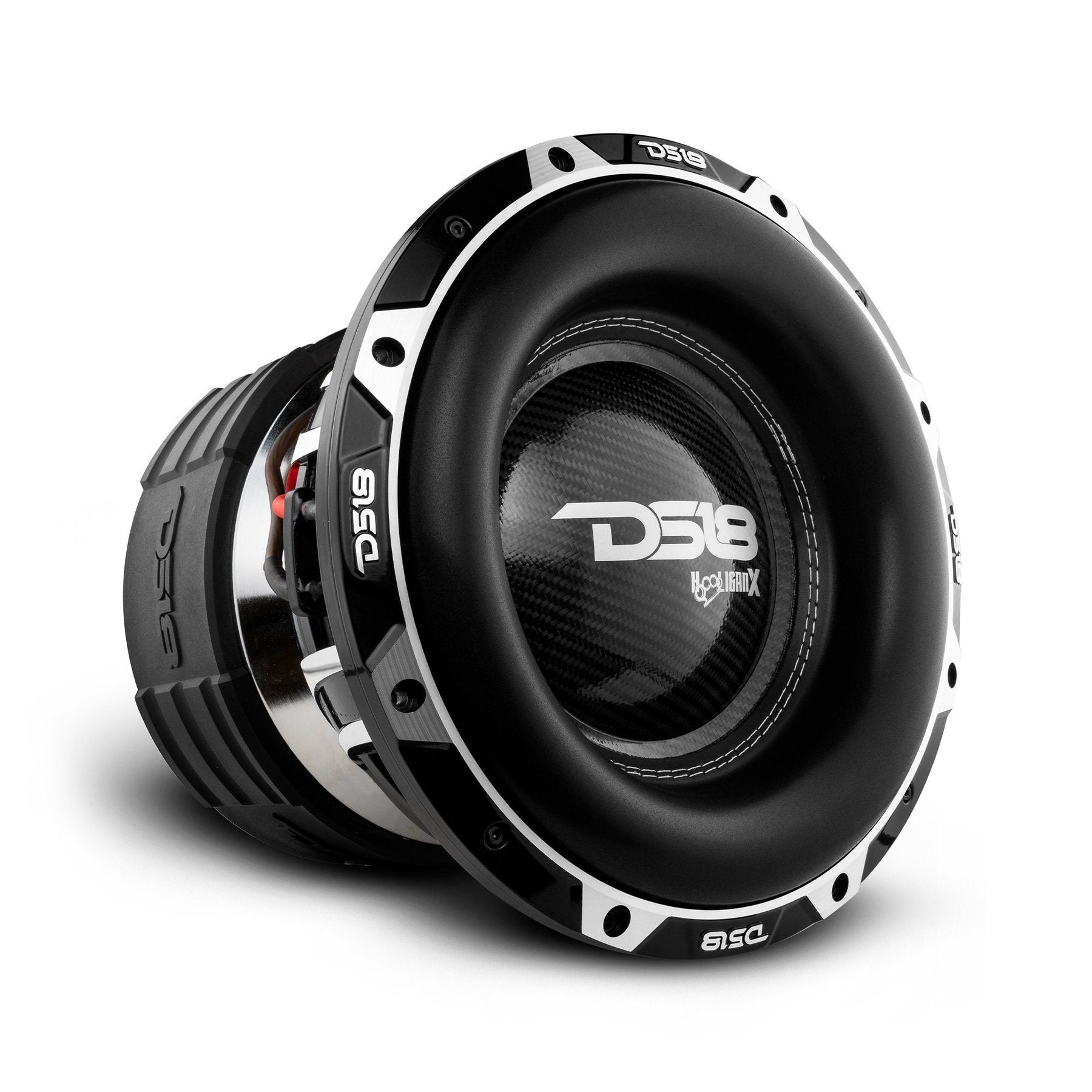

DS18 HOOLIGAN X Black Frame, High Excursion 12" Subwoofer 4000 Watts Rms 4" Dvc 1-Ohm
- Product Overview
The DS18 Hooligan X12 has already been proven to provide top end performance and bass now for multiple years on the streets and in the lanes, hooligans have been a choice of music lovers and competitors alike.
We have taken the Traditional Hooligan and revamped it in our newest revision, the Hooligan X12 High Excursion subwoofer. This model features long throw pole, larger spider, and high excursion surround to lower the FS of the speaker making it louder at subsonic frequencies. This massive sub will be great for high powered music or SPL. A FS of 26 will ensure deep lows down to 20hz and great punchy bass up around 40hz depending on your box tuning. This subwoofer is rated at 4000w RMS and 6000w max so your vehicle will require electrical upgrades and large wire.
This sub will be friendly to 4th orders, 6th orders, ported boxes, and large sealed boxes and can be used in most applications that has room for the box. With a 59mm one way XMAX, this sub is sure to pump out extreme decibils with the proper power and box setup. We recommend a tuning of 25-35hz for ported boxes depending on your goals.
If you are looking for extreme bass and massive power look no further than the Hooligan High Excursion line! This Hooligan variant will be sure to start you on your way to high volume hairtricks and massive lows!
- High powered 4" Black Aluminum voice coil handling 4000w RMS and 6000w max power for heavy hitting competition bass.
- We have added a large high excursion surround to help with the high pole to pole flex this subwoofer has giving it has a 59mm one way xmax!
- We have also added a larger spider that helps lower the FS (Resonant Frequency) so this sub plays lower much louder than previous versions.
- 4 inch black aluminum voice coil handling a massive 4000w RMS and 6000w peak will be sure to get this subwoofer moving with hurricane wind forces.

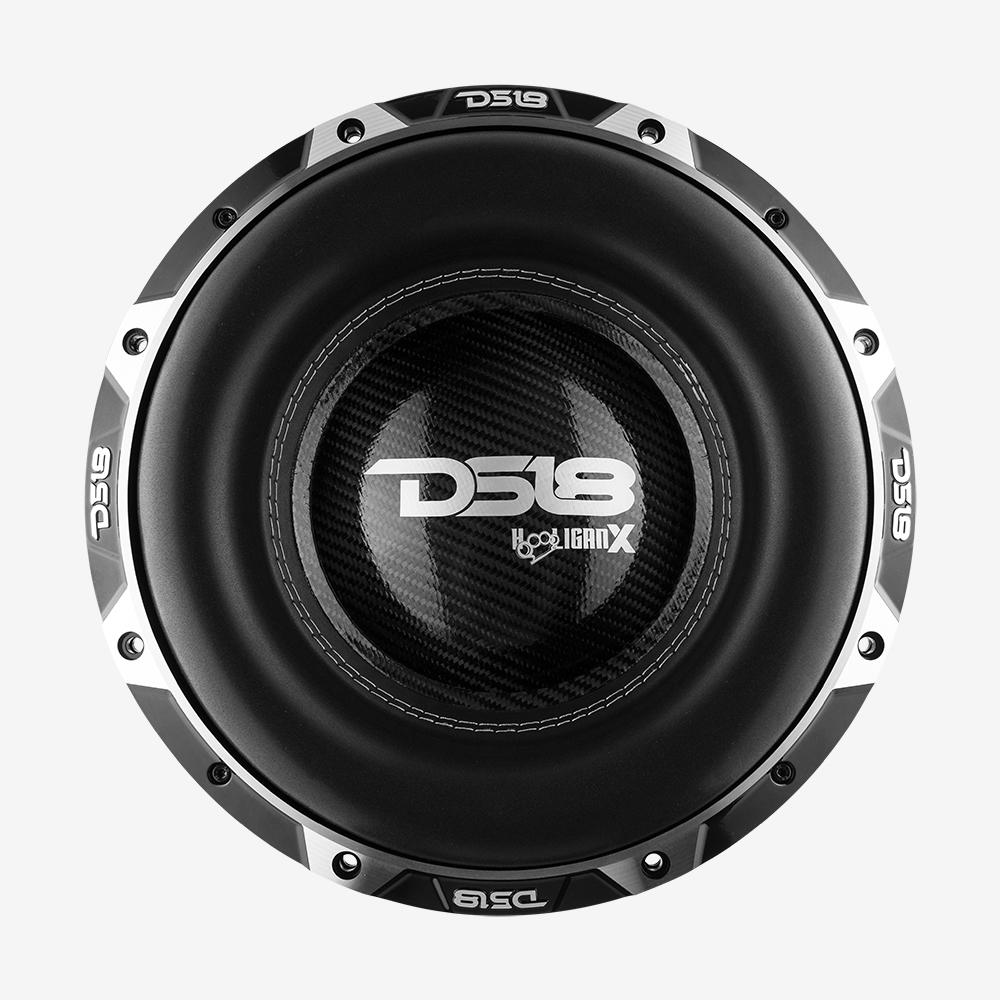

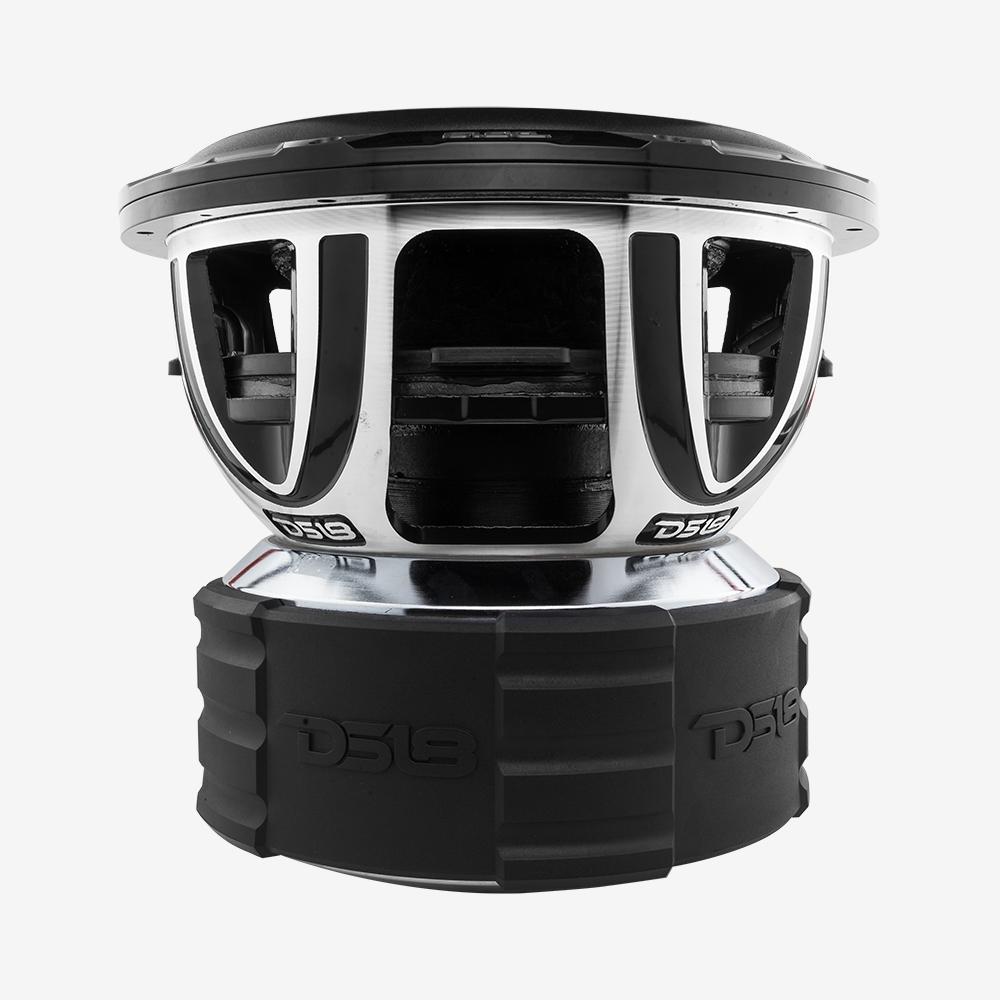

- The DS18 Tooled Black basket is one of the slickest and best looking baskets on the market. Not only extremely strong but looks great so you can use plexiglass or mount inverted on your box to see the show quality frame and motor topped off by a carbon fiber dustcap.

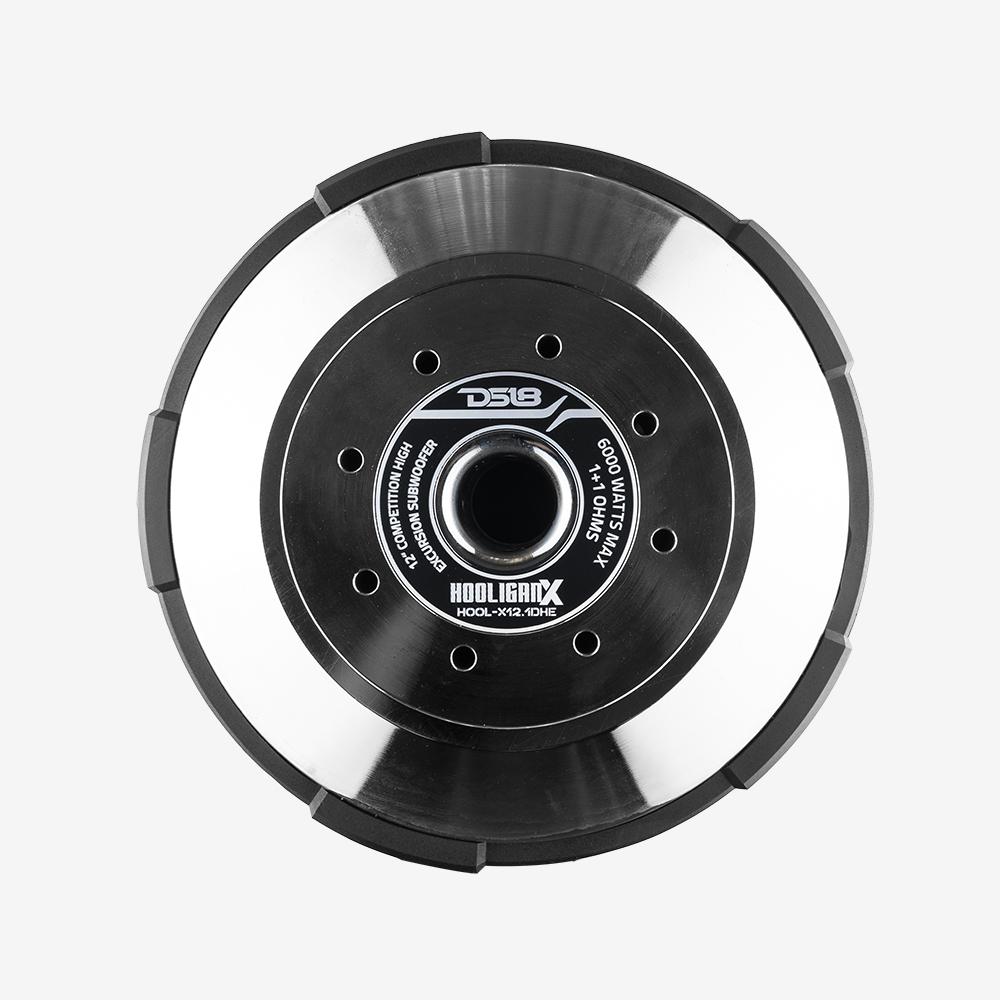

- Huge 500oz magnet will help the voice coil receive and handle the massive power this sub requires with high efficiency and durability.
Download HOOL-X12.1DHE Product Manual
SPECIFICATIONS Nominal Diameter 12" / 304.8 mm Nominal Impedance 1+1 OHMS RMS Power Handling 4000 WATTS MAX Power Handling 6000 WATTS Sensitivity (1w/1m ) 87 dB Frequency Response 20Hz - 500Hz Recommended Lo Pass Crossover 80 Hz MOTOR Voice Coil Diameter 4” / 99.8 mm Voice Coil Former Material Black Aluminum Winding Material CCAW Cone Material Non Pressed Paper Dust Cap Material Carbon Fiber Surround Material Foam Basket Material Aluminum Basket Color | Finish Glossy Black with Machined Aluminum Magnet Material Ferrite Magnet Weight 500 Oz Displacement Volume 4.8L / 0.169ft3 THIELE & SMALL PARAMETERS Equivalent Volume 23.22L / 0.82 ft3 Excursion (one way) 50 mm Free Air Resonance 26 Hz Mechanical Factor 2.65 Electrical Factor 0.476 Total Factor 0.444 Moving Mass 554.22 g Compliance 0.069 mm/N Bl Factor 24.65 Voice Coil Inductance 43.12 mH Diaphragm Area 471.44 cm2 DC Resistance 0.9+0.9 OHM Efficiency Bandwidth Product 54.6 RECOMMENDED ENCLOSURES Sealed Internal Volume 17L / 0.6 ft3 Sealed Box Output Response 41 Hz Ported Internal Volume 42.5L / 1.5 ft3 Port Size *Square (WxHxL) 1.52" x 12.28" x 31.82" Port Tunning Frequency 30 Hz Ported Box Output Response 25 Hz MEASUREMENT Overall Diameter 12.64” Overall Depth 11.6” Front Mount Baffle Cutout 11.2” Mounting Depth 10” Motor Diameter 9.96"
