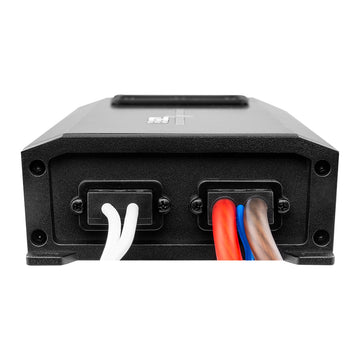

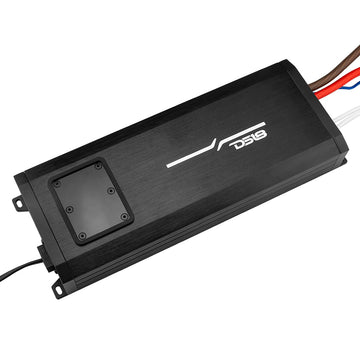

DS18 HYDRO NXL-X1000.1D 1-Channel Marine Waterproof Amplifier - Class D 1000 Watts RMS @ 1 Ohm 2000 Watts Peak

The DS18 NXL Series was developed for people who want a very a small audio footprint that is capable of putting out lots of power and sound in a small and waterproof package.

The NXL Series of amps are one of our most efficient lines with great power output all while withstanding the elements. These amps come in 1 channel, 4 channel, and 5 channel to help you power a wide array of speaker setups.

The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to maximum for the ultimate audio experience.

All our units have stable and reliable 4-layer PCB layouts, IP67waterproof rating for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification.

The NXL Marine Amplifier series is exactly what the outdoors lover will need for their vehicle's audio to brave the trails, enjoy the lake, or any situation that needs a strong versatile waterproof amplifier.

AMPLIFIERS ARE NOT FOR SUBMERSIBLE USE, WILL VOID WARRANTY

Highlights

• The included a marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
• IP67 Waterproof Rating
• UV, Salt and Fog Protection
• Direct Power Harness Design with Marine Grade OFC Tinned Wires
• Latest Digital Amplifier Design With SMC Technology

Great For:

• Marine
• Offroad
• DIY Projects 











  OWER
  Total Watts (Peak)	2000W
  RMS Power @ 4 ohm	350W
  RMS Power @ 2 ohm	600W
  RMS Power @ 1 ohm	1000W
  RMS Power @ 4 ohm Bridge	-
  AUDIO
  Frequency Response	10Hz-20KHz
  Signal to Noise Ratio 1W@4Ω	> 100dB
  Efficiency @ 4ohm	0.83
  Input Impedance	20KΩ
  Channel Separation	N/A
  Total Harmonic Distortion (THD)	< 0.05%
  Low Level Input Range	200mV-5V
  Selectable X-Over	LPF Fixed
  X-Over Filter Range	50Hz-250Hz
  Bass Boost Range	0-18dB
  Bass Boost Frequency	42Hz
  Infrasonic Filter	10Hz-55Hz
  Phase Selector	0-180°
  FEATURES
  Amplifier Class	Digital
  Amplifier Type	Monoblock Subwoofer
  Number of Channels	1
  Minimum Impedance	1 Ohm
  Led Indicators	Power / Protection / Clip
  Power Input Size	4GA Tinned OFC
  Fuse Size	2 x 50A (100A)
  Thermal Protection	Yes (75°C)
  Over-Load Protection	Yes
  Short Circuit Output Protection	Yes
  Voltage Input Protection	Yes (7-16V)
  Body Color / Finish	Black Brushed Aluminum
  MEASUREMENT
  Overall Length	11.8" / 302mm
  Overall Wide	4.4" / 112mm
  Overall Height	1.77" / 45mm
  Heatsink Length	11" / 281.6mm
  Gross Single Unit Weight	2.21kg
