DS18 JL-SB6 Jeep JL/JLU,JT Loaded 6.5" Plug & Play Overhead Bar System (PRO-JP6NEO and ZXI-T1 Included)
DESCRIPTION
- Product Overview
As a renowned manufacturer of professional audio quality Jeep products, the engineers at DS18 are always looking for new ways to improve on their designs for all Jeep makes and models. The JL-SB6 is a handpicked soundbar speaker upgrade kit designed for Jeep Wrangler JL Models/ Gladiator JT Models.

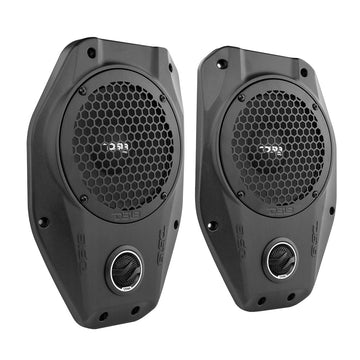

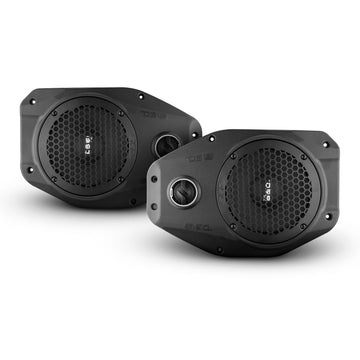

This package includes a Set (Left and Right) of Speaker Soundbar Upgrade Kit with a 6.5” Neodymium Midrange Speaker and a 1” Dome Tweeter.
This product is an upgraded replacement part for your Jeep’s factory soundbar speakers. The JL-SB6 enclosure is made from extremely tough injection molded plastic ensuring that it’s built to last. Each enclosure holds one 6.5” Neodymium speakers and a 1” high-powered Dome tweeter for amazing sound without having to sacrifice space.
This system requires cutting of the existing sound bar for installation, templates are included and a Dremel is recommended. The users who like it loud can power it up with an external amp for even more vibrancy.
Highlights
- Designed to upgrade factory 2-way speakers from 4” to 6.5”
- Compatible with JL and Gladiator Jeeps with the basic sound system
- 5” Neodymium speaker with 1” Dome Tweeter included
- Speaker depth 2.5”
- Mounting Plate/ Cutting Template Included
- All installation screws included
- Speaker Connectors Plug & Play
Great For
- Jeep Audio
- Pro Audio
| GENERAL SPECIFICATIONS | |
| Component Set | 2-Way |
| Nominal Speaker Diameter | 6.5" / 165mm |
| Nominal Tweeter Diameter | 1.7" / 43mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 150 Watts |
| MAX Power Handling | 300 Watts |
| Total Sensitivity (1w/1m) | 97 dB |
| Frequency Response | 60Hz-20KHz |
| SPEAKER SPECIFICATIONS | |
| Nominal Impedance | 4 Ohms |
| Total Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 60Hz-10KHz |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Magnet Material | Neodymium |
| Magnet Weight | 3 Oz |
| TWEETER SPECIFICATIONS | |
| Nominal Impedance | 4 Ohms |
| Sensitivity (1w/1m) | 92 dB |
| Frequency Response | 1KHz-20KHz |
| Hi Pass Crossover | 3.5KHz |
| Body Color | Material | Black | ABS |
| Voice Coil Diameter | 1” / 25.4mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | SV |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 13g |
| BODY | FEATURES | |
| Wiring | Connections | Plug & Play to factory Speaker Connector |
| Enclosure Material | Injection Molded ASA composite |
| Grill Material | Steel |
| Sold as Pair | Yes (Left and Right Set) |
| Color | Finish | Black | Satin |
| MEASUREMENTS | |
| Overall Wide | 8.26” / 210mm |
| Overall Length | 12.36” / 314mm |
| Overall Depth | 3.27” / 83mm |
