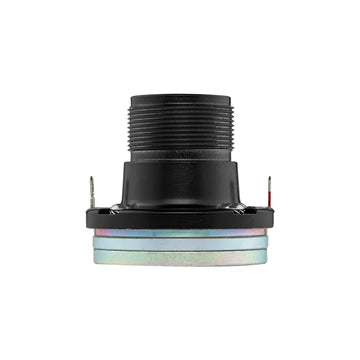

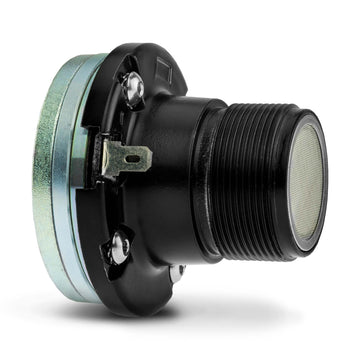

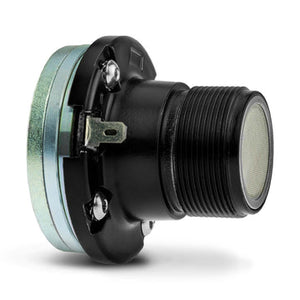

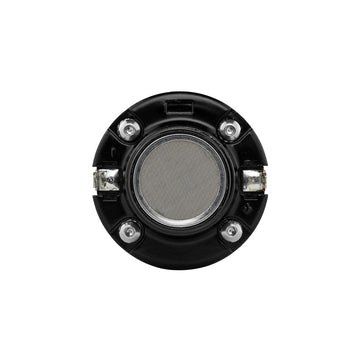

DS18 PRO-DRNSC 1" Twist On Throat Neodymium Driver 1" Composite Polyamide VC 240 Watts 110dB 4 Ohm
DESCRIPTION
- Product Overview
Product Overview
Peak power handling - PRO-DRNSC neodymium compression (horn) driver boasts out-of-this-world power handling for a Pro audio sound you will love. 120 Watts RMS - 240 Watts Max
Sensitivity - PRO-DRNSC neodymium compression driver offers State of the art performance that provides powerful sound with clarity and depth. Frequency response 1.5Hz - 20KHz with build in capacitor
Nominal impedance 4 ohms - PRO-DRNSC neodymium compression driver can handle significant Amounts of amplified power without wearing out your speakers, for a powerful & distortion free sound!
Durable & long lasting performance - this compression driver does not draw an excessive amount of power from your amplifier & ensures long lasting performance from your equipment.
| Nominal Impedance | 4ohms |
| RMS Power Handing | 120 Watts |
| Maximum Power Handing | 240 Watts |
| Sensitivity (1w/1m) | 110dB |
| Frequency response | 1.5KHz-18KHz |
| Recommended Hi Pass Crossover | 3KHz |
| Recommended Mylar capacitor | 4.7UF @ 50V |
| Winding Material | Aluminum Wire |
| Magnet | Neodymium |
| Overall With | 2.38" |
| Overall Depth | 2.06" |
| Voice Coil Diameter | 1" |
| Screw on | 3/8"-18 |
| Mounting Depth | 1.24" |
