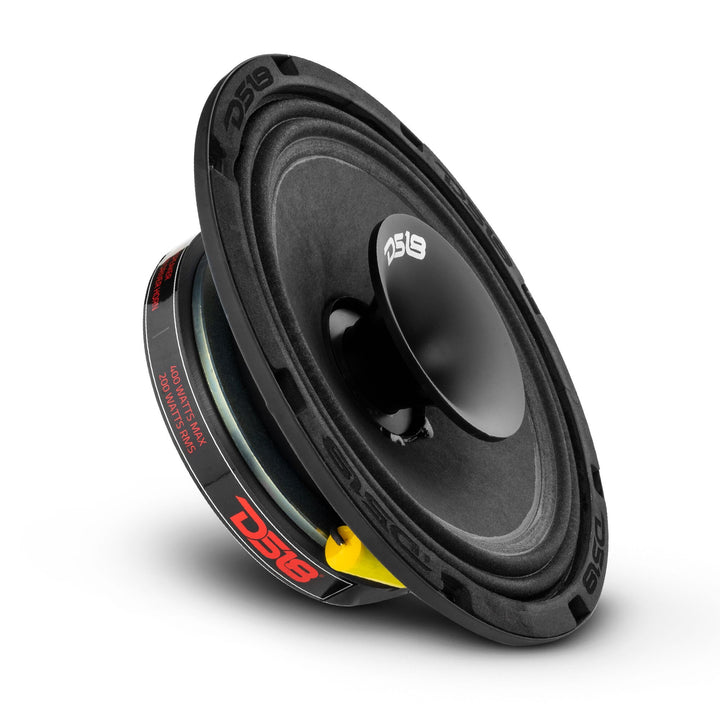

DS18 PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms

SKU: DS18-HY8MSL-1
Your Price:
$76.95

Select impedance

Add to wishlist
Checkout Secure

Great reasons to buy from us:

  • Image of Quality Assurance

    Quality Assurance

    Quality Assurance
  • Image of Expert Guidance

    Expert Guidance
  • Image of Customers Over Profits

    Customers Over Profits

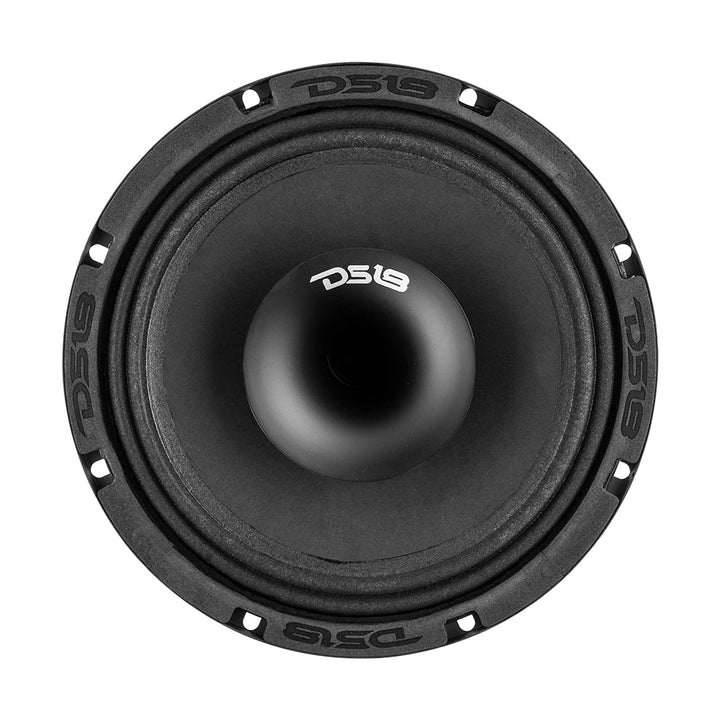

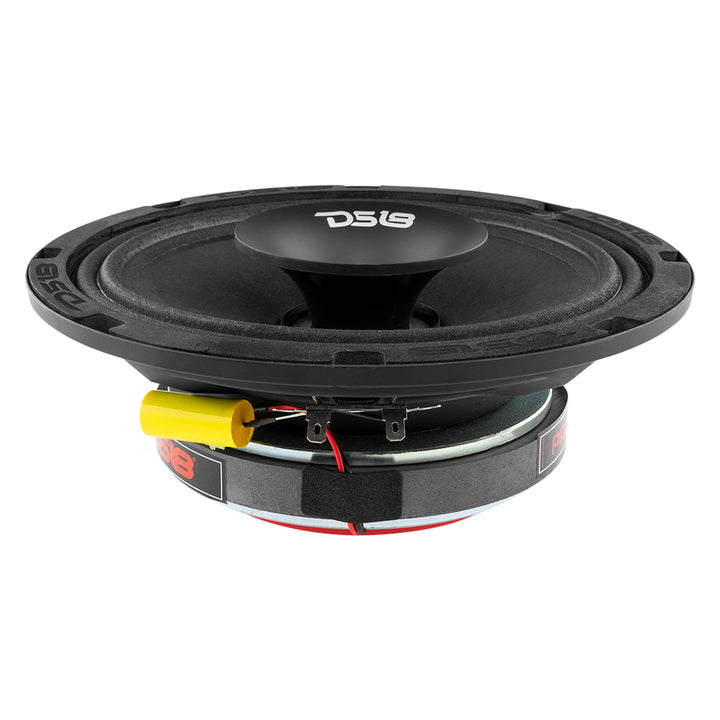

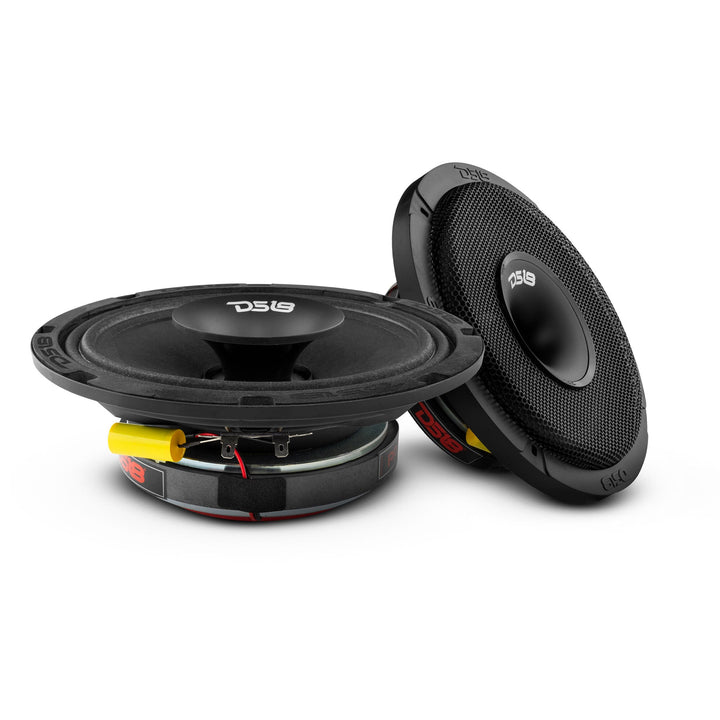

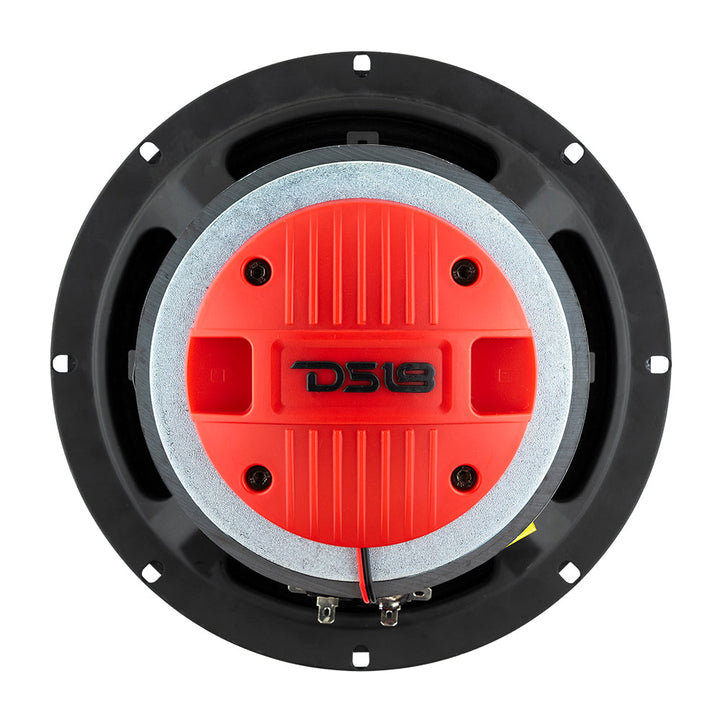

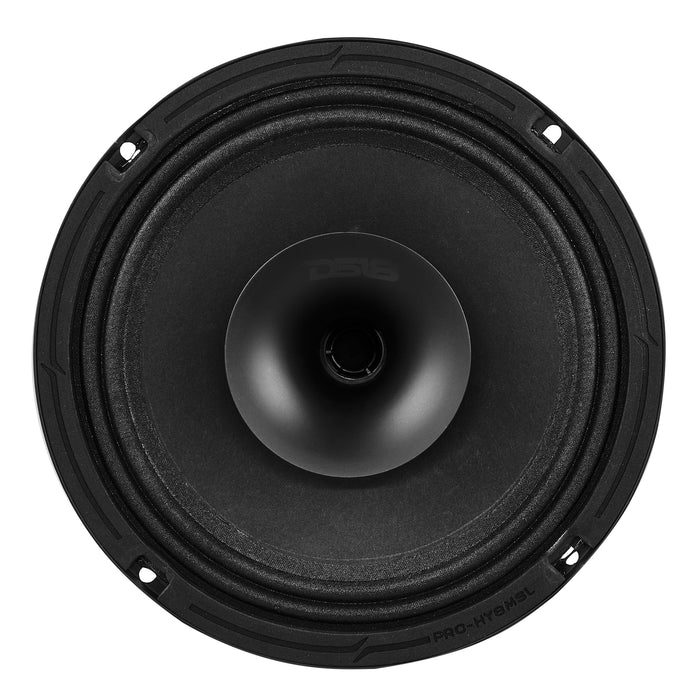

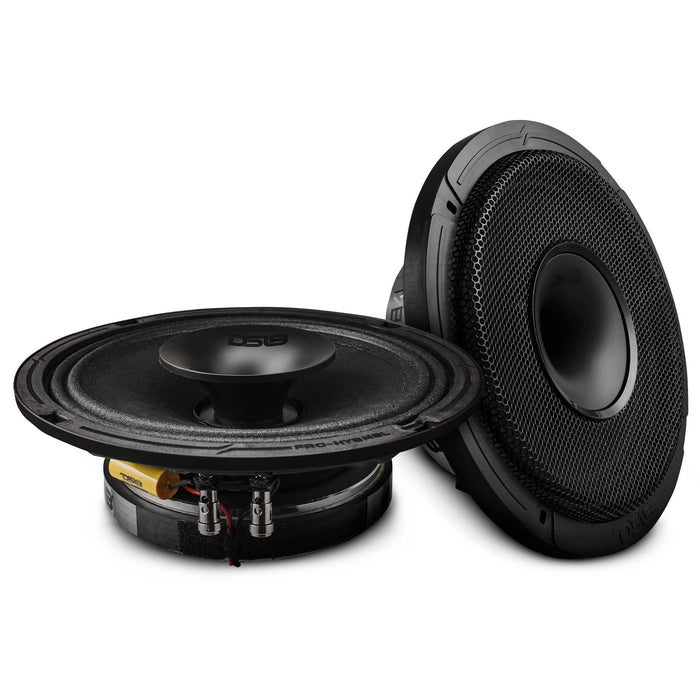

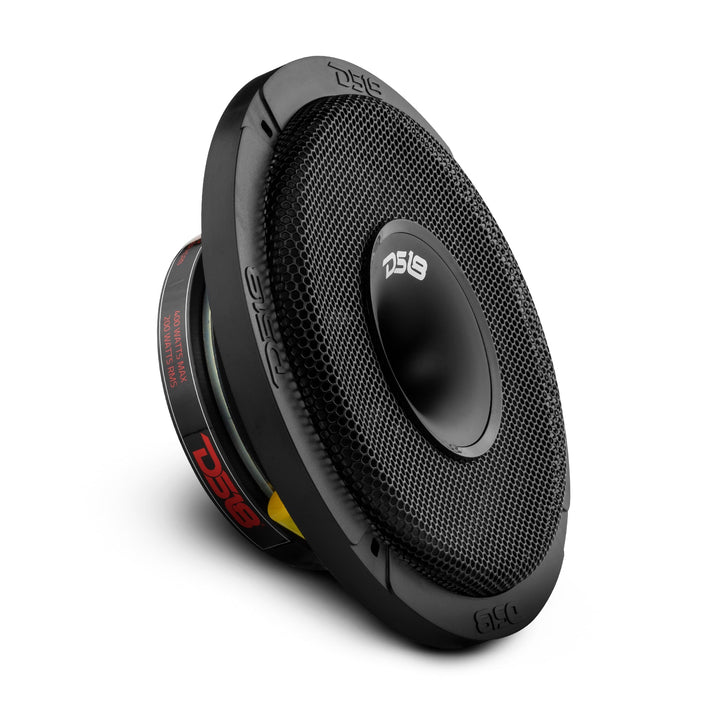

DS18 PRO-HY8MSL


8” Hybrid Slim Loudspeaker With 1” Compression Driver Horn

Make your system LOUD again with DS18’s PRO-HY8MSL!

Combining an 8” mid-range speaker with a 1” compression driver horn, this 8-ohm powerhouse is built for clarity and volume in a sleek design that fits anywhere!

Upgraded with a thunderous 98dB sensitivity, 400W MAX, 200W RMS and a frequency range of 100Hz–20KHz, the PRO-HY8MSL dominates any soundstage using precision and projection. The titanium diaphragm and neodymium driver ensure ultra-fast, responsive performance, while the integrated horn directs and amplifies sound to perfection.

Designed for versatility with a sleek 3.11” mounting depth, it’s the perfect fit for tight spaces without compromising performance.

Are you ready to get LOUD? Upgrade with the PRO-HY8MSL today!



SPECS

SKU
PRO-HY8MSL
Nominal Diameter
8" / 203.2mm
RMS Power Handling
200W
MAX Power Handling
400W
Sensitivity (1w/1m)
98dB
Frequency Response
100Hz - 20Khz
Recommended HI Pass Crossover
120Hz
Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes


Woofer Specifications

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
29.5 Oz


Thiele & Small Parameters

Equivalent Volume Vas
7.85L / 0.277ft3
Excursion (one way) Xmax
2mm
Free Air Resonance Fs
114Hz
Mechanical Factor Qms
6.282
Electrical Factor Qes
0.984
Total Factor Qts
0.851
Mechanical Mass Mms
16.357g
Mechanical Compliance Cms
118.033 mm/N
BL Factor BL
8.817
Voice Coil Inductance Le
12.06mH
Cone Area Sd
216.424 Cm2
DC Resistance Re
6.5 ohm
Mechanical Mass w/o air Mmd
14.527g


Driver Specifications

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3" / 76.2mm


Speaker Measurement

Overall Diameter
8.2" / 209mm
Overall Depth
4" / 102.5mm
Front Mount Baffle Cutout
7.16" / 182mm
Mounting Depth
3.15" / 80mm
Motor Diameter
5.27" / 134mm


Shipping Info

Gross Single Unit Weight
5.75
Single Unit Box Dimensions L x W x H (Inches)
9 x 9 x 4.75
Quantity of Units in Master Carton
8
Gross Master Carton Weight
49
Master Carton Dimensions L x W x H (Inches)
18.5 x 18.5 x 10.25

Shipping This item ships to
