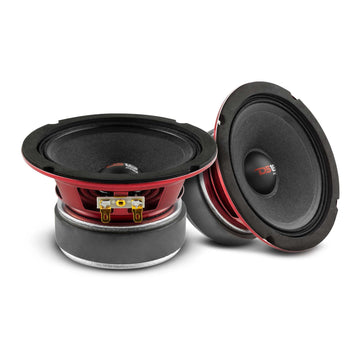

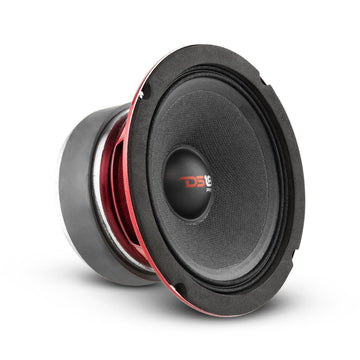

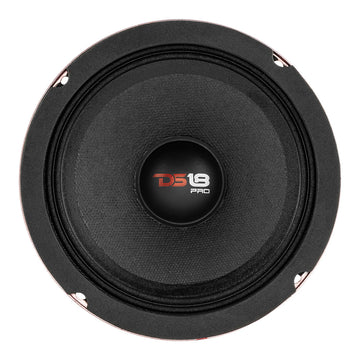

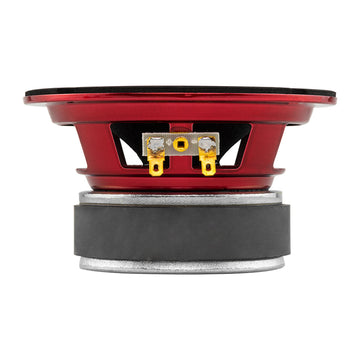

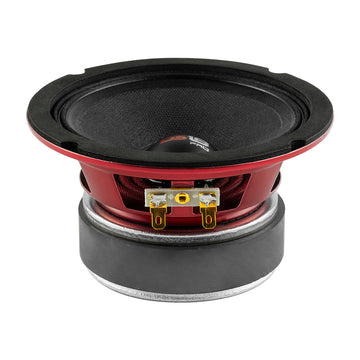

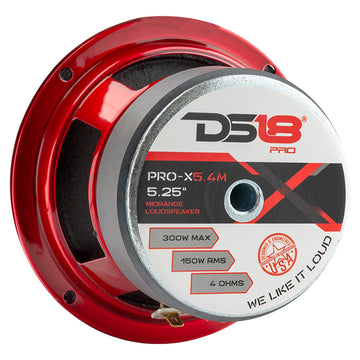

DS18 PRO-X 5.25" Mid-Range Loudspeaker 300 Watts 4-Ohm
During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles.
Specifications
| Model: | PRO-X5.4M |
| Type: | Midrange Loudspeaker |
| Size: | 5.25" |
| RMS Power: | 150W |
| MAX Power: | 300W |
| Frequency Response: | 200-16KHz |
| Impedance: | 4 ohm |
| Sensitivity: | 93dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Steel Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | KCCAW |
| Diameters | |
| Voice Coil Size: | 1.2" |
| Magnet Size: | 18.5 oz |
| Mounting Depth: | 2.6" (66mm) |
| Cut-Out Dimension: | 4.33" (110mm) |
