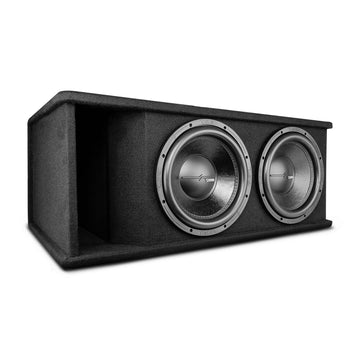

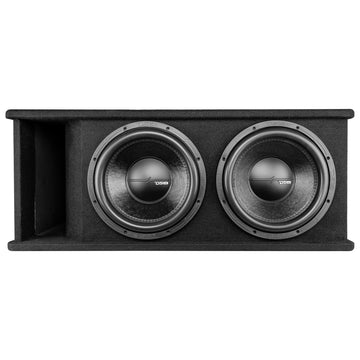

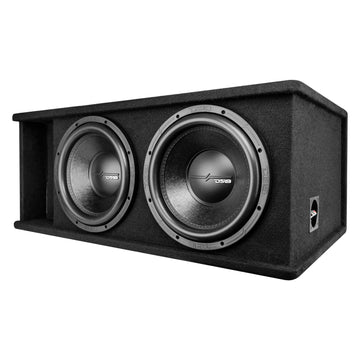

The ZR212LD provides dual 12 inch subwoofers loaded into a ported box for the listeners who like it loud!
The ported box is tuned to 29 Hz and helps get the most from your subwoofers by delivering a deeper, punchier bass. Included in the ported box are two ZR12.4D subwoofers, one of our bestselling car audio subs, designed with dual 4-Ohms voice coils wired in parallel for a nominal impedance of 1-Ohm.
This loaded subwoofer combo offers great sound through high-quality and high-power subwoofers in a prefabricated box that is guaranteed to last! The RMS requirement is 1600W RMS and 3200W max: so in order to power this combo to maximum potential, we recommend a 2000W RMS Amplifier like the ZR2000.1D, H-KO2, or EXL-P2000X1D.
Highlights
- The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass
-
Dual 12 inch subwoofers with the cone area to blast great sounding bass more efficiently Subwoofers
Key Features
ZR12.4D
- Two 12 inch DVC subwoofer
- Max Power Handling: 1600 watts each
- RMS Power Handling: 800 watts each
- Frequency Response: 25hz-200hz
- Voice Coil Diameter: 2.5"
- Voice Coil Material: Copper
- Impedance: Dual Voice Coil 4-Ohm
- Sensitivity: 82 DB
- Magnet Weight: 100 Oz
- Magnet Material: Ferrite
- Mounting Depth: 6.6"
- Xmax: 25mm one way
Box:
- Box Material: 3/4 inch MDF
- Box Covering: Carpet with DS18 logo
- Box Tuning: 29hz
- Box Type: Side Ported
- Internal Volume: 5.3 ft3Demensions:
- Height: 14.48"
- Width: 36.22"
- Depth 1: 19.68"
- Depth 2: 21.65"
Great For:
- Car Audio
- Pro Audio
- Home Solutions
- Hi-Fi Installation
- DIY Projects
SPECIFICATIONS / ESPECIFICACIONES: |
|
Speaker Type/Size / Tipo/Tamaño de Altavoz |
Dual 12" / 316mm |
Total Impedance / Impedancia Total |
1 Ohm |
Total RMS Power Handling / Manejo de Potencia RMS total.. |
1600W |
Total MAX Power Handling / Manejo de Potencia MAX total |
3200W |
Sensitivity (1w/1m) / Sensibilidad (1w/1m) |
86db |
Frequency Response / Respuesta de Frecuencia |
20Hz-200Hz |
Recommended Lo Pass Crossover / Crosover Paso Bajo Recomendado |
70Hz |
|
|
MOTOR / MOTOR: |
|
Voice Coil Diameter / Diámetro de la Bobina de Voz.... |
2.5"/61.6mm |
Voice Coil Former Material / Material Interior de Bobina Móvil |
Aluminum/Aluminio |
Winding Material / Material de Bobinado . |
Copper / Cobre |
Cone Material / Material del Cono |
Non-Pressed Paper / Papel no Prensado |
Dustcap Material / Material de la Tapa Anti-polvo. |
PPI |
Surround Material / Material de la Suspension |
Foam / Espuma |
Basket Material / Material de la Canasta |
Steel / Acero |
Magnet Material / Material del Imán |
Ferrite / Ferrita |
Magnet Weight / Peso del Imán |
100 oz |
MEASUREMENTS / MEDIDAS: |
|
Height / Altura |
14.48" / 368 cm |
Width / Ancho |
36.22" / 920 cm |
Depth 1 / Profundidad 1 |
19.68" / 500 mm |
Depth 2 / Profundidad 2 |
21.65" / 550 mm |
|
|
