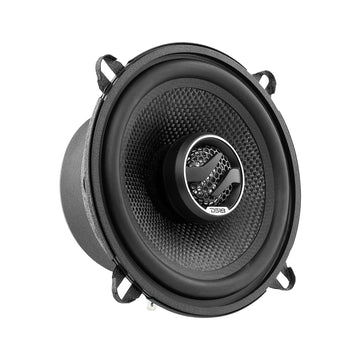

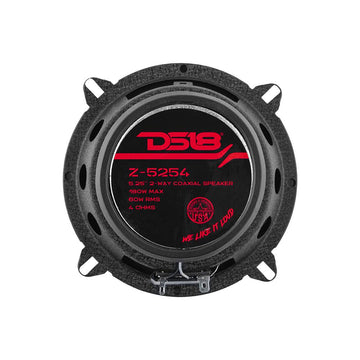

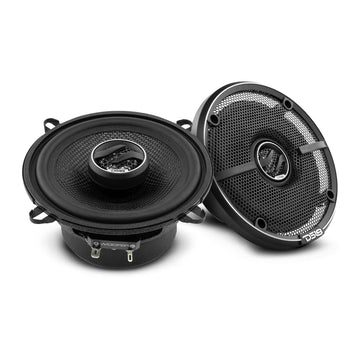

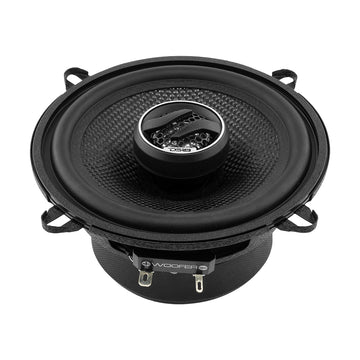

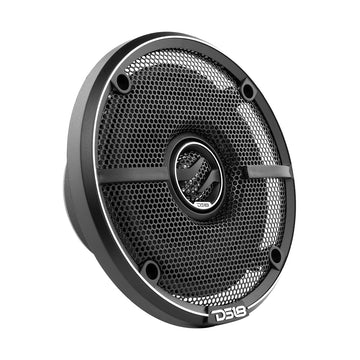

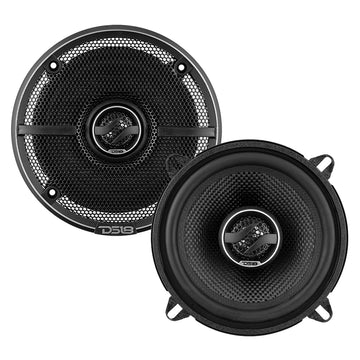

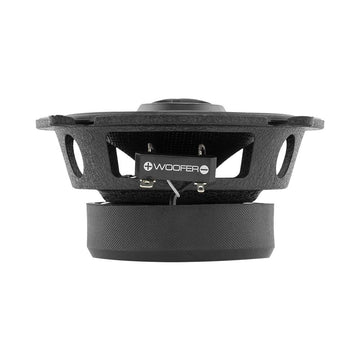

DS18 ZXI-5254 Kevlar 5.25" 2-Way Coaxial Car Speaker 180 Watts 4-Ohm

  • $69.95
    Unit price per

Shipping calculated at checkout.



The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI-5254 is 5.25" inch, 4 ohm coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2- way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.


  • The ZXi line is a complete line of amps, subs, mids, and tweeters so you can match all your equipment up to be the same for an amazing show quality look.
  • 5.25" inch 2- way 4 ohm speaker requiring 60w RMS and 180w Max power handling that gives amazing sound from low to extremely high volume.
  • 2- way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.2-way coaxial speakers with kevlar cone2-way coaxial speakers with kevlar cone2-way coaxial speakers with kevlar cone2-way coaxial speakers with kevlar cone
    Nominal Diameter 5.25”
    Nominal Impedance 4 ohms
    RMS Power Handling 60 Watts
    MAX Power Handling 180 Watts
    Sensitivity (1w/1m) 89dB
    Frequency Response 40Hz-20KHz
    Recommended HI Pass Crossover 60Hz
    Speaker Type 2-Way
    Voice Coil Diameter 1” / 25.5mm
    Voice Coil Former Material KSV
    Winding Material EISV
    Cone Material Glass fiber
    Surround Material Rubber
    Basket Material Steel
    Magnet Material. Barium Ferrite
    Magnet Weight 10.9 oz / 310g
    Nominal Diameter 1" / 25.4mm
    Voice Coil Diameter 0.8" / ø20.4mm
    Voice Coil Former Material KSV
    Winding Material EISVM
    Diaphragm Material PEI
    Magnet Material. Neodymium
    Magnet Weight 0.3 oz / 8.5g
    Thiele & Small Parameters
    Equivalent Volume 4.86L
    Excursion (one way) 2.3mm
    Free Air Resonance 77Hz
    Mechanical Factor 8.39
    Electrical Factor 0.87
    Total Factor 0.79
    Mechanical Mass 9.93g
    Mechanical Compliance 457mm/N
    BL Factor 4.321
    Cone Area 86.5cm2
    DC Resistance 3.5 ohm
    Mechanical Mass w/o air 9.0g
    Overall Diameter 5.08” / 129mm
    Overall Depth 2.80” / 71mm
    Front Mount Baffle Cutout 4.45” / 113mm
    Mouting Depth 2.28” / 58mm
    Motor Diameter 3.31” / 84mm
