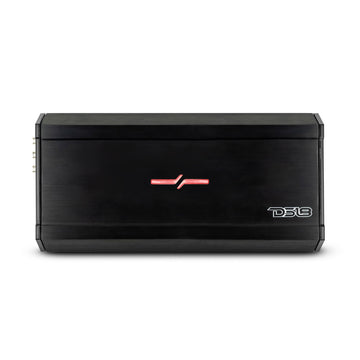

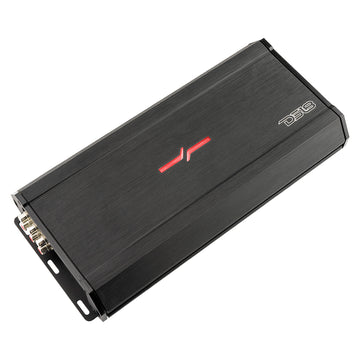

DS18 ZXI.6 ZXI 6-Channel Class D Amplifier 6 x 200 Watts Rms @ 4-Ohm
- Product Overview
Years of knowledge and experience has gone into the development of the ZXI amplifier series!
As one of our best selling lines, it’s only right we honor it with an EXTREME upgrade!
The ZXI.6 is one of the most versatile amplifiers in our catalog: this Full-Range 6-Channel Amplifier outputs enough power to supercharge any powerful competitive or casual sound system!

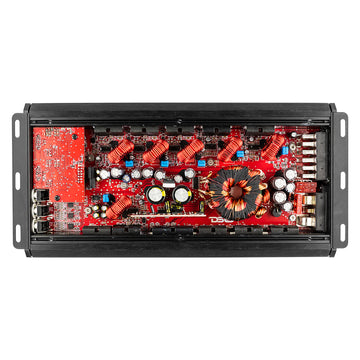

Built from top of the line components (Block Style Terminals, Fully Variable Crossover, Platinum Finish Connections, and High Quality Protection Circuitry) this amplifier is guaranteed to deliver insane quantities of RMS Power on demand!
As a Class D amplifier, the ZXI.6 uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicle’s custom build: but, what it lacks in size it makes up for in power.
The ZXI.6 handles 200W x 6CH @ 4 OHM; 320W x 6CH @ 2 OHM; and 640W x 3CH @ 4 OHM Bridge of RMS Power.
Order your ZXI Amplifier today to take your system to the next level!
- Platinum finish connections that resist corrosion

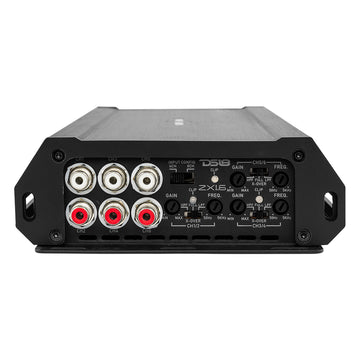

- Fully Variable Crossovers
- Protection Circuitry against Overload, Short Circuit, Thermal, Low Voltage, High Voltage, and Reverse Polarity
- Filters are included so you can adjust the high pass and low pass filters so your speakers perform at their best.
- 0 to 180 degree phase switch is included for more complex systems that need the phase reversed.
- Fuses included on the amplifier for easy access and amp circuitry protection.

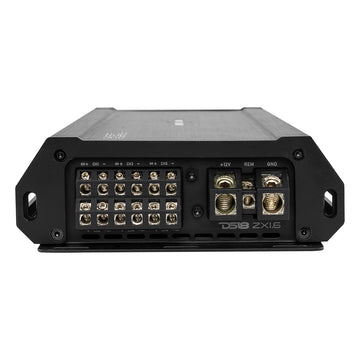

- The terminals are stainless and use Allen keys to tighten for the best connectivity possible.
- Car Audio
- Pro Audio
- Stunt Walls
- Motorcycle Audio
- Powersports Audio
- DIY Project
|Total Watts (Peak)||5800W|
|RMS Power @ 4 ohm||6 x 200W|
|RMS Power @ 2 ohm||6 x 320W|
|RMS Power @ 4 ohm Bridge||3 x 640W|
|Signal to Noise Ratio||>90dB|
|Efficiency @ 4ohm||>85%|
|Total Harmonic Distortion (THD)||<0.3%|
|Low Level Input Range||0.2 - 6v|
|High Level Input||No|
|X-Over Filter Range||50Hz-5KHz|
|Bass Boost Range||No|
|Bass Boost Frequency||No|
|Amplifier Type||Stereo Full Range|
|Number of Channels||6|
|Minimum Impedance||2 ohm (Stereo) / 4 ohm (Bridge)|
|Power Input Terminal Size||4ga|
|Fuse Size||160A (External)|
|Remote Level Control||No|
|Thermal Protection||Yes (>160°F / 71°C)|
|DC Output Protection||Yes|
|Short Circuit Output Protection||Yes|
|Voltage Input Protection||Yes|
|Body Color / Finish||Black Aluminum Brush|
|Overall Length||12.2" / 310mm|
|Overall Wide||5.66" / 144mm|
|Overall Height||1.9" / 48.5mm|
|Heatsink Length||11.42" / 290mm|
|Gross Single Unit Weight||6 lb / 2.72 kg|
