The GEN-X Coaxial Series is back!

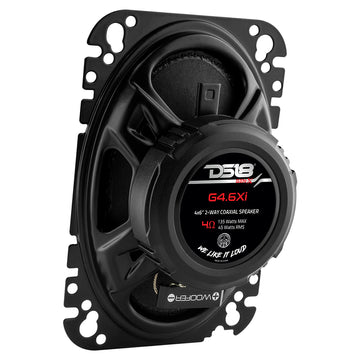

The power, clarity and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in.
The G4.6Xi was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

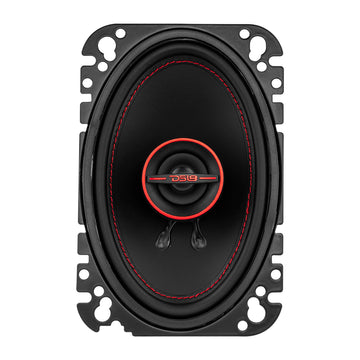

The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 45Hz. The 2-way design on these speakers bring a full range of frequencies with great response without the need for a large power requirement.

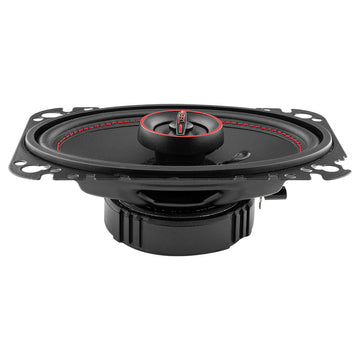

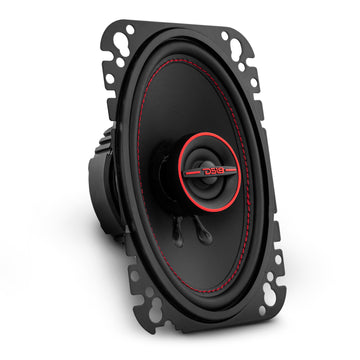

The G4.6Xi is plate mounted and has multiple mounting holes to accommodate many factory placements.
These speakers get loud extremely easily with a MAX Power Handling of 135W and RMS Power Handling of 45W.
NO GRILL INCLUDED ON THIS SPEAKER
Order the G4.6XI for your system to expand your soundstage today!
Highlights
- 2-Way Design implemented for full range quality on every listen
- Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio

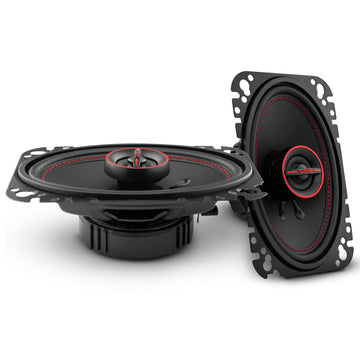

- 2 speakers included
Great For
- Car Audio
- Bookshelf
- Satellite
- Surround Sound Speaker
- Hi-Fi installation
- DIY Projects
GENERAL SPECIFICATIONS |
|
Nominal Diameter |
4x6" / 101x152mm |
Nominal Impedance |
4 Ohms |
RMS Power Handling |
45W |
MAX Power Handling |
135W |
Sensitivity (1w/1m) |
84dB |
Frequency Response |
45Hz-20KHz |
Recommended HI Pass Crossover |
80Hz |
Number of ways |
2 |
Pair or Single |
Pair |
Grill Included |
No |
WOOFER SPECIFICATIONS |
|
Voice Coil Diameter |
1" / 25.5mm |
Voice Coil Former Material |
ASV |
Winding Material |
EISV |
Cone Material |
Paper |
Surround Material |
Rubber |
Basket Material |
Steel |
Basket Color/Finish |
Black Matte |
Magnet Material |
Barium Ferrite |
Magnet Weight |
6.3Oz / 180g |
TWEETER SPECIFICATIONS |
|
Nominal Diameter |
1" / 25.5mm |
Voice Coil Diameter |
0.5" / 13.25mm |
Voice Coil Former Material |
ASV |
Winding Material |
EISVM |
Diaphragm Material |
Mylar |
Magnet Material |
Neodymium |
Magnet Weight |
1.8g |
SPEAKERS MEASUREMENT |
|
Overall Diameter |
4"x6.1" / 102x155mm |

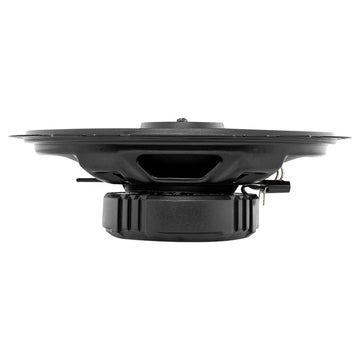

Overall Depth |
2.18" / 55.3mm |
Overall Diameter (With Grill) |
N/A |
Overall Depth (With Grill) |
N/A |
Front Mount Baffle Cutout |
3.6"x5.94" / 93x151mm |
Mounting Depth |
1.7" / 43mm |
Motor Diameter |
3" / 76mm |
Tweeter Protrusion |
0.48" / 12.3mm |
