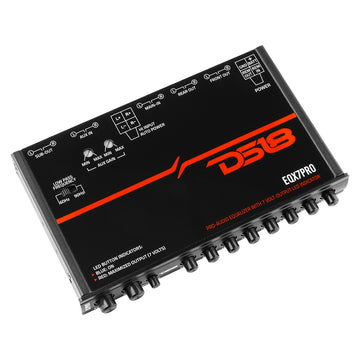

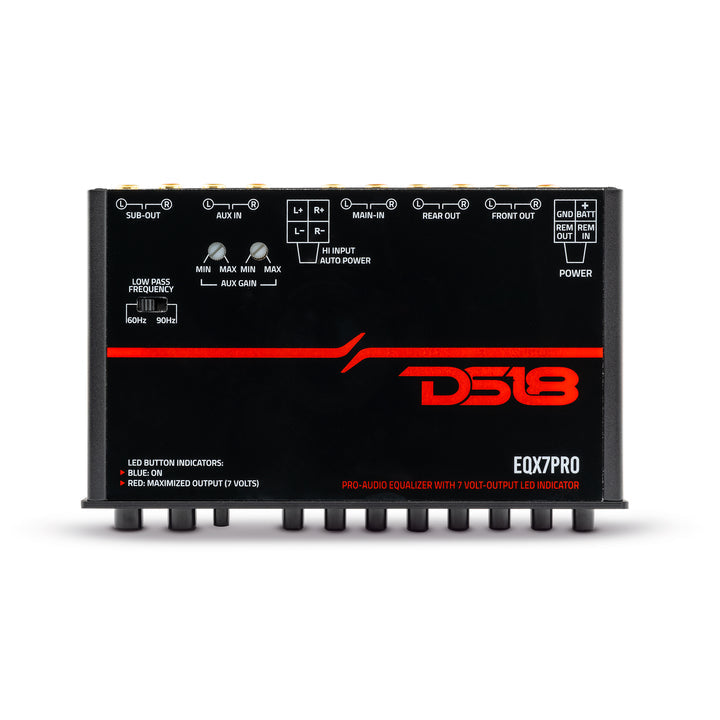

DS18 EQX7PRO High Volt 7-Band Equalizer with High Level Input, Auto Turn On And High Volt LED Indicator

  • $99.95
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

Take complete control of your audio with the best high-strength 7-band stereo equalizer / crossover available in aftermarket audio: DS18’s EQX7PRO! The EQX7PRO pushes your system past its limits by strengthening its signal and clearing distortion!

All 7 Bands (50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, and 16KHz) are designed to deliver the most precise audio with frequencies adjustable between -12 to +12dB (-15 to +15dB for subwoofer frequencies) and 7v output LED indicators on each Band and Output!

The EQX7PRO has 3 stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers with separate controls for master volume, subwoofer volume (sub level), front/rear fade, and selection of main or auxiliary inputs!

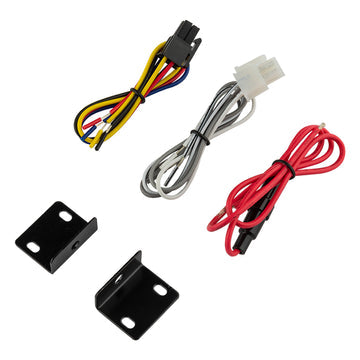

Mount the EQX7PRO next to your source unit or underneath your dash using the included mounting brackets for easy access to your front panels controls directly from your drivers seat!

Order the EQX7PRO to fine-adjust your amplifier's DB ranges with precision, bringing out the exact loudness level exactly where you want it!

Highlights

  • 7v output LED indicator on each Band and Output
  • 7 frequency adjustable EQ Bands
  • Subwoofer output with built-in 18dB per octave electronic crossover fixed at 60Hz or 120Hz

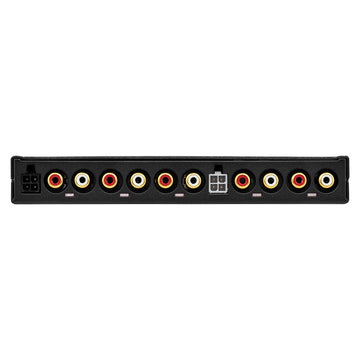

  • 3 Stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers
  • An Auxiliary stereo RCA input for use with portable devices such as a MP3 player or a DVD player

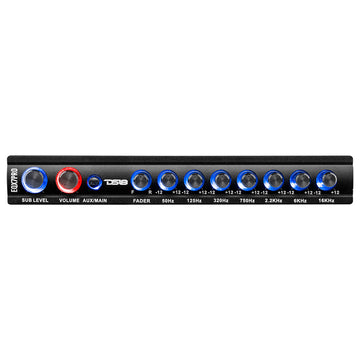

  • Separate controls for master volume, subwoofer volume (sub level), front/rear fader, and selection of main or auxiliary inputs and gain knob volume indicator
  • Extended frequency response from 20Hz to 30KHz with exceptional 100 dB signal-to-noise performance
  • Gold-plated RCA connectors to ensure the best audio signal output
  • Speaker Hi-Level Converter for low level RCA output
  • Auto Turn ON when connected directly to the Factory Radio source

Great For

  • Pro Audio
  • Car Audio
  • Jeep Audio
  • Motorcycle Audio
  • DIY Projects
  • Home Studio
  • Stunt Walls

SPECIFICATIONS
Equalizer Section
Type of Equalizer Graphic
Number of bands 7
Frequency Point 50, 125, 320, 750, 2.2k, 6k, 16k
Boost/Cut 12dB (15dB Subwoofer Frequency)
Crossover Section
Passive Crossover Ways / Type 1 (LPF) (Subwoofer Ch)
Frequency Crossover point 60/120Hz Selectable
Cut-Off Slope 12dB/Oct
Audio Specifications
S/N Ratio 100dB
THD 0.005%
Input Sensitivity 50mV-3V
Input Impedance 20Kohm
Output Voltage 8V
Output Impedance 2Kohm
Head Room 20dB
Stereo Separation 82dB @ 1Khz
Frequency Response 10Hz-30Khz
General Features
Operating Voltage 11-15V
Subwoofer Output Yes (9V)
Audio Controls Subwoofer Level, Master Volume, Fader
Audio Inputs Main (RCA) , Auxiliar (RCA)
RCA Type Gold-plated
Housing Material Metal / Aluminum
Adjustments Aux Input Gain
Extra Features Blue Backlit with Red 7V output indicator
Hi-Level Speaker Input Yes
Auto Turn-on Yes (Hi-Level input)
Remote Turn-on Input/Output Yes Input and Output
Color / Finish Satin Black
Measurements
Overall Length 7" / 178mm
Overall Depth 4.4" / 112mm
Overall Height 1.18" / 30mm
