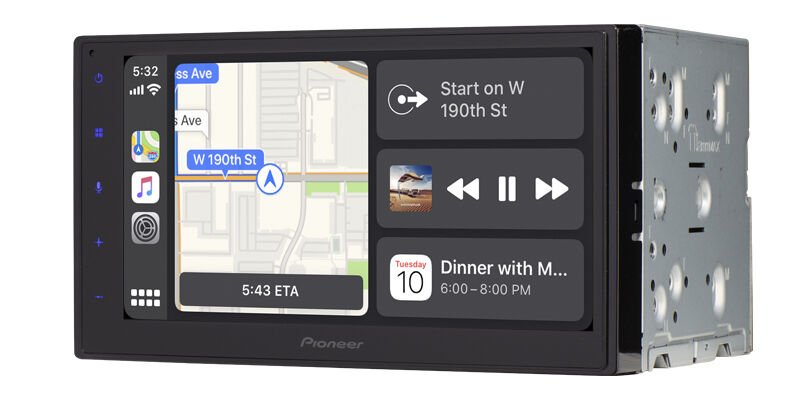

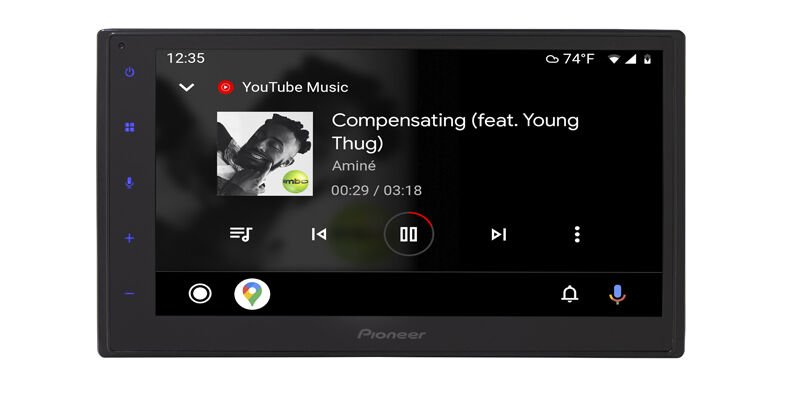

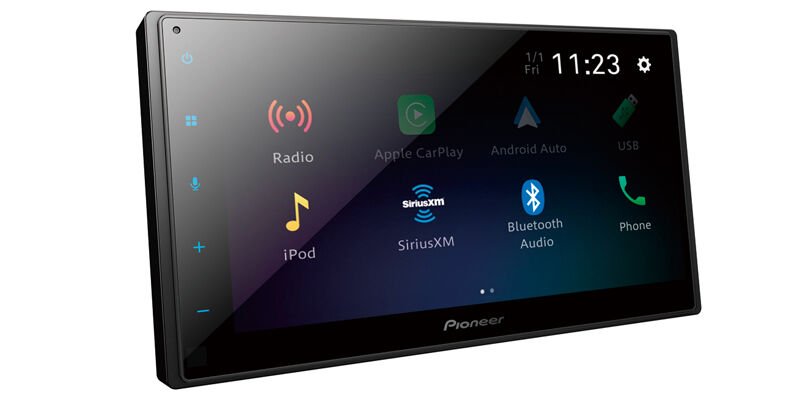

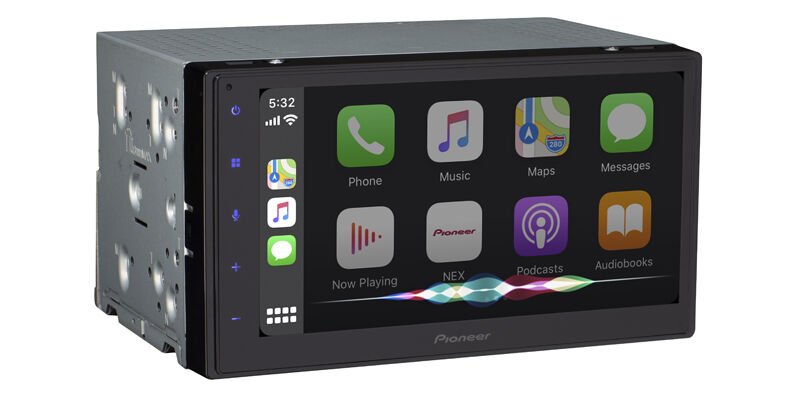

Pioneer DMH-1700NEX 6.8" Capacitive Touchscreen, Bluetooth Back-up Camera Ready Digital Media Receiver

  • $349.99
    Unit price per

Shipping calculated at checkout.



• Double DIN In-Dash Bluetooth Mechless Car Stereo Receiver
• 6.8" Capacitive Touch LCD Display
• 50 watts x 4 channel MAX / 14 watts x 4 channel RMS
• 3 sets of 2 Volts preamp outputs (front, rear and subwoofer)
• 13 Band Customizable Graphic Equalizer
• Resolution: WVGA (800 x 480)
• Mirroring USB-Android Phone Only

Product Details:

  • Double DIN In-Dash Bluetooth Mechless Car Stereo Receiver
  • 6.8" Capacitive Touch LCD Display
  • Built-in Bluetooth for hands-free and audio streaming
  • illuminated button lighting
  • LED Back Light
  • Power Output:
    • Peak: 50 watts x 4 channel
    • RMS: 14 watts x 4 channel
  • Audio Playback via USB
  • Image Display via USB
  • Optional Wireless Remote Control

Playback and Audio Features:

  • Playback of MP3 and WMA
  • AM/FM tuner with 18FM/12AM presets
  • 13-band Customizable Graphic EQ

Expandability Options:

  • 3 sets of 2 Volts preamp outputs (front, rear and subwoofer)
  • SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required and sold separately
  • Front Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
  • Rear USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input
  • Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately
  • RCA Video Output: Used for connection to separate monitors and other devices
  • RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 5.0 certified
  • Bluetooth range up to 5 meters
  • Supports SMS message notifications and A2DP audio streaming
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • Works with most Bluetooth enabled cell phones
  • Includes a external wired and built-in microphone for clear, convenient, distortion-free talking
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

 Check out the DMH-1700NEX Owner's Manual
FEATURES & SPECS Key features Key features Apple CarPlay
Android Auto
SiriusXM ready
USB input
Aux input
In-Dash Receiver Specifications Receiver Size Double DIN Anti-Theft Security None Motorized Faceplate No Remote Control No Peak Power Output 50 watts x 4 channel RMS Power Output 14 watts x 4 channel Preamp RCA Outputs 3 Sets (6-channel) Dedicated Subwoofer Preamp RCA Output Yes Preamp Voltage 2 volts Built-In Equalizer 13-band Customizable Graphic EQ Display Type Capacitive Touch LCD Display Color Variable Colors CD Signal-to-Noise 45 dB CEA-2031 Compliant No Playback Features AM/FM Tuner Yes FM Presets 18 AM Presets 12 Radio Data System (RDS) Yes CD-R/RW Playback No MP3 Playback Yes WMA Playback Yes Video playback Yes DVD Region Number
Dual Zone
Hi-Res Certified
Video in-motion bypass No
Audio / Video Inputs USB Input Yes Number of Front USB Inputs
Number of Rear USB Inputs 1 Additional Audio/Video Inputs 1 Video RCA Input
Front 3.5mm A/V Input
Monitor Screen Features Touchscreen Yes Screen Size 6.8" Monitor Angle Adjustment None Display Adjustment Brightness MirrorLink Compatible No Device Mirroring Yes Navigation Features Map Database Determined By Phone Connected Traffic Lane Guidance Yes Maps Complete 50 USA Navigation During Audio Playback Yes Navigation During Video Playback Yes Languages Chinese
Map Dimensional Display 2D
Map Source Carplay or Android Auto Compatible Phone
Expandability Features Compatible Smartphones iPhone (iOS)
Audio/Video Outputs 1 Video RCA Output Satellite Radio SiriusXM Ready (Accessory sold separately) HD Radio No Bluetooth Connectivity Yes (Built-in/Included [Bluetooth Controls, Adapter and/or Microphone Included]) A2DP Music Streaming Yes Steering Wheel Control Compatible Yes Maestro Compatible
Rear View Camera Input Yes (Accessory included) Memory Card Reader No
Smartphone Integration iPhone/iPod Features Apple CarPlay
iPhone 5 Compatible
iPhone 6 Compatible
iPhone 7 Compatible
App Compatible
Audio Playback
Video Playback
Siri Control
Android Features Android Auto
App Compatible
Audio Playback
Video Playback
Android Audio Integration Yes (via Android USB Cable or Accessory Cable) Android Video Connection

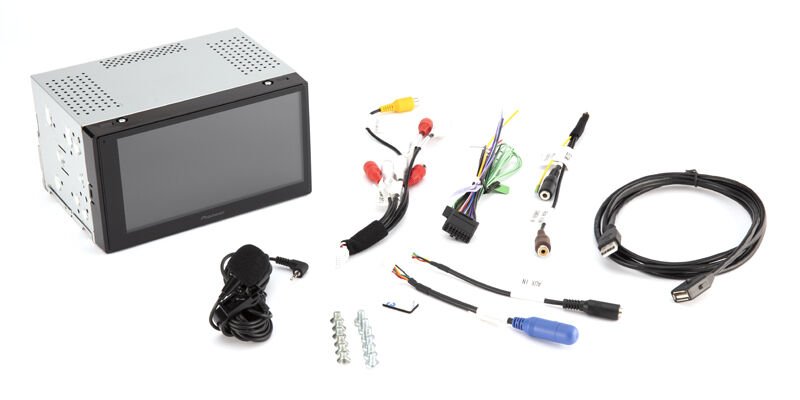

What is in the box? Product and accessories In-dash receiver
Microphone with attached cable
Paperwork User manual
Warranty/Registration card
Quick start guide
Authorized Dealer Authorized Dealer Authorized Dealer
Warranty and Return Policy Parts Warranty Duration 1 year Labor Warranty Duration 1 year Warranty Provider Manufacturer
