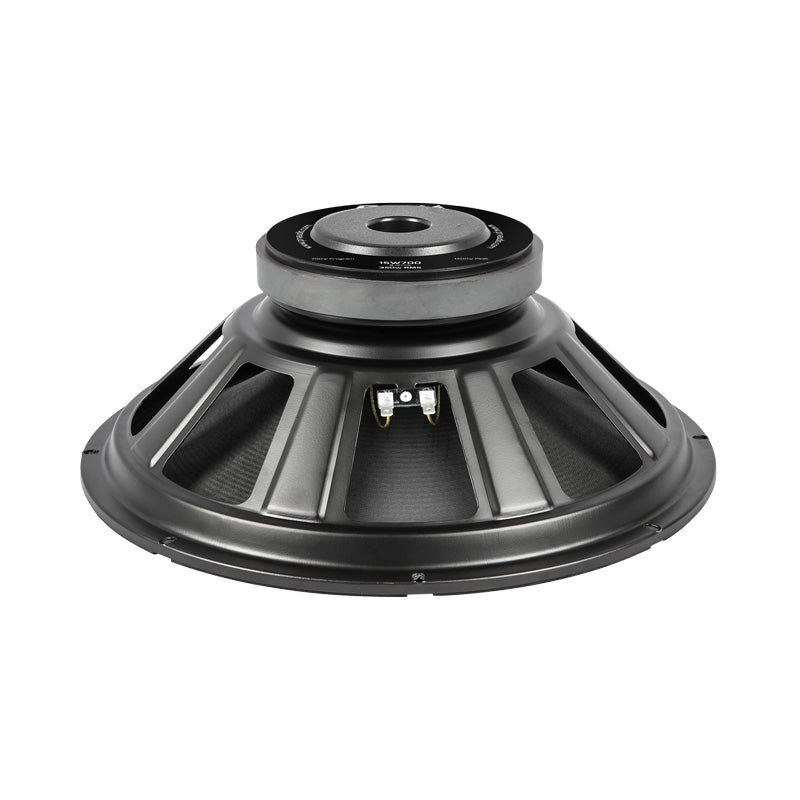

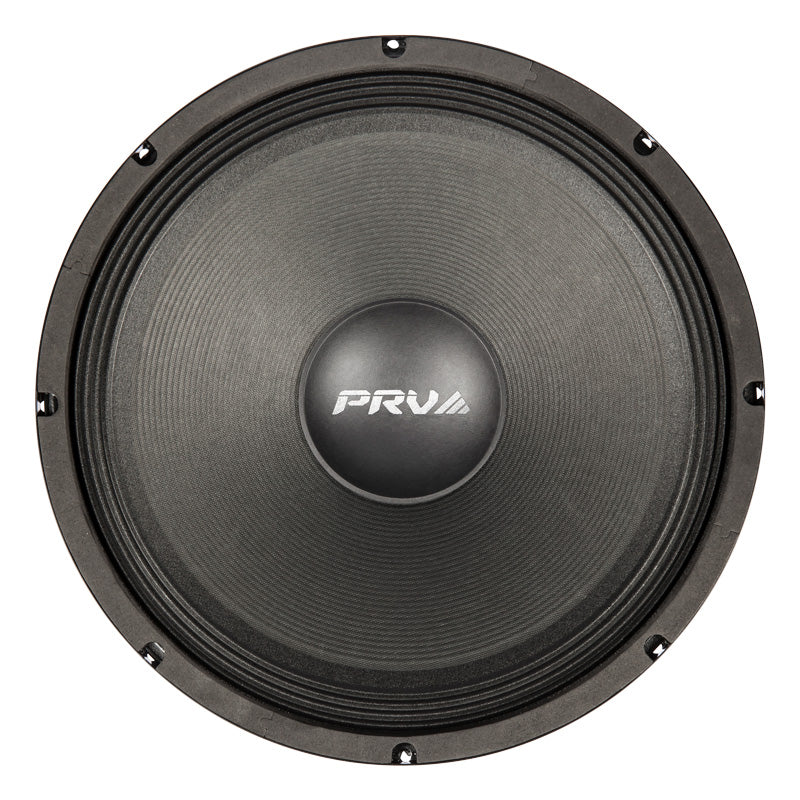

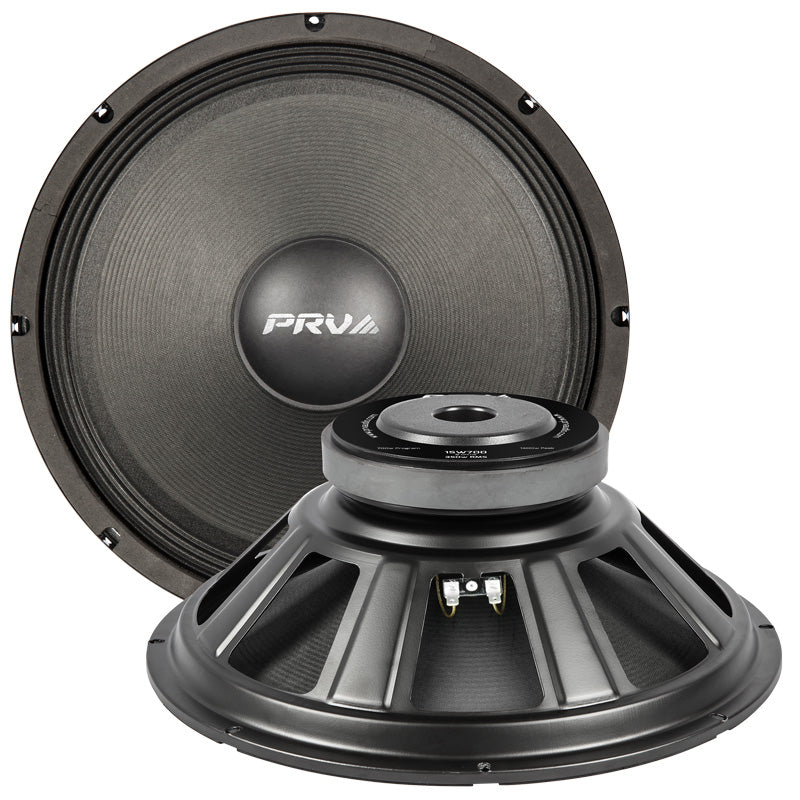

PRV Audio 15W700 15" PRO AUDIO WOOFER
DESCRIPTION
- Product Overview
Product Overview
Features
The 15W700 15″ PRV Audio pro audio Woofer is a perfect drop in replacement for many full range loudspeaker applications and offers a smooth response from as low as 38hz and packs some punch in the mid bass range through 3,000 hz.
The voice 3” voice coil and suspension, ensures its ability to withstand long hours of operation without compromising efficiency of the speaker. A thick, yet light rigid cone ensures accurate response and power handling. If you are looking for an affordable drop-in replacement for your full range pro sound cabinets, try the 15W700. It’s the best-selling woofer at PRV Audio for a reason!
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 350 Watts
- Program Power: 700 Watts
- Sensitivity (1W/1m): 95 dB
- Voice Coil Diameter: 3″
Technical Details
| Nominal Diameter | 15″ (381 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 350 Watts |
| Program Power | 700 Watts |
| Sensitivity 2.83V at 1m | 95 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
80 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 35 – 3,500 Hz |
| Voice Coil Diameter | 3″ (76 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 16.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.5 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 308.1 l |
| Excursion (mathematical)*** | Xmax | 6.87 mm |
| Free Air Resonance | Fs | 31.69 Hz |
| Mechanical Factor | Qms | 16.27 |
| Electrical Factor | Qes | 0.65 |
| Total Factor | Qts | 0.62 |
| Cone Area | Sd | 935 cm² |
| Mechanical Mass | Mms | 99.87 g |
| Bl Factor | Bl | 13.97 Tm |
| Dc Resistance | Re | 6.4 Ohms |
| Inductance | Le | 1.33 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 83.70 g |
| Mechanical Compliance | Cms | 0.252 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 15.16” (385 mm) |
| Front Mount Baffle Cutout | 14.13” (359 mm) |
| Mounting Depth | 5.51” (140 mm) |
| Overall Depth | 5.79” (147 mm) |
| Net Weight | 11.17 Lbs (5.07 kg) |
| Shipping Weight | 12.73 Lbs (5.77 kg) |
| Carton Dimensions W x L x H | 16.06” x 16.06” x 6.89” (408 x 408 x 175 mm) |
