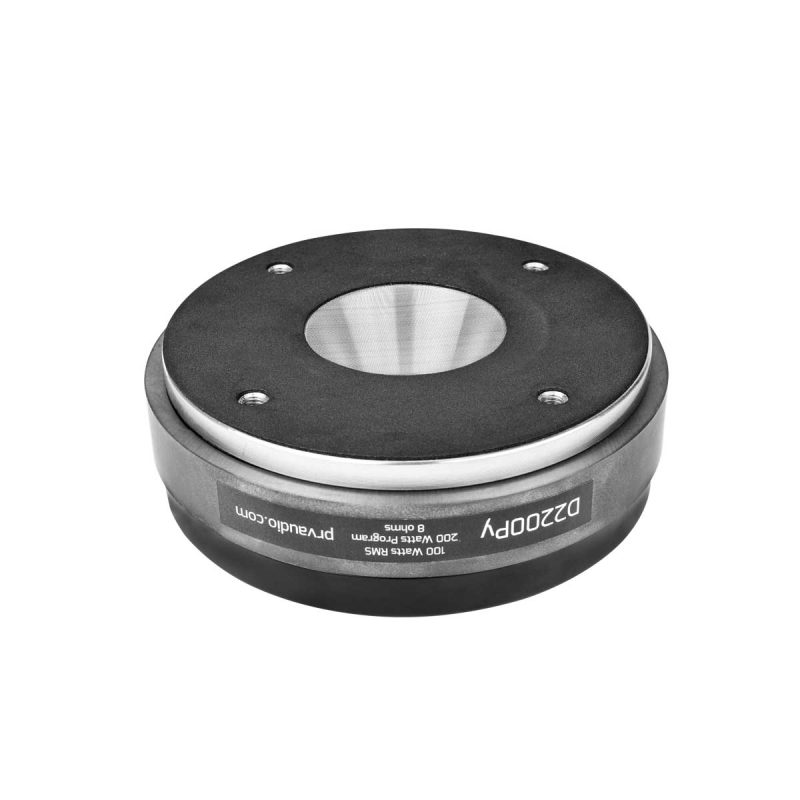

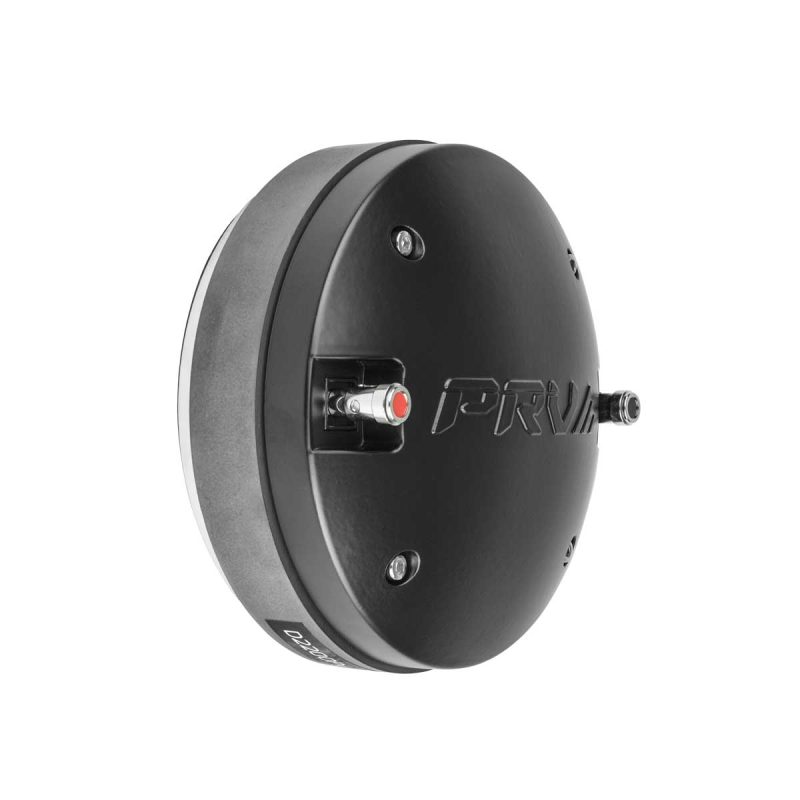

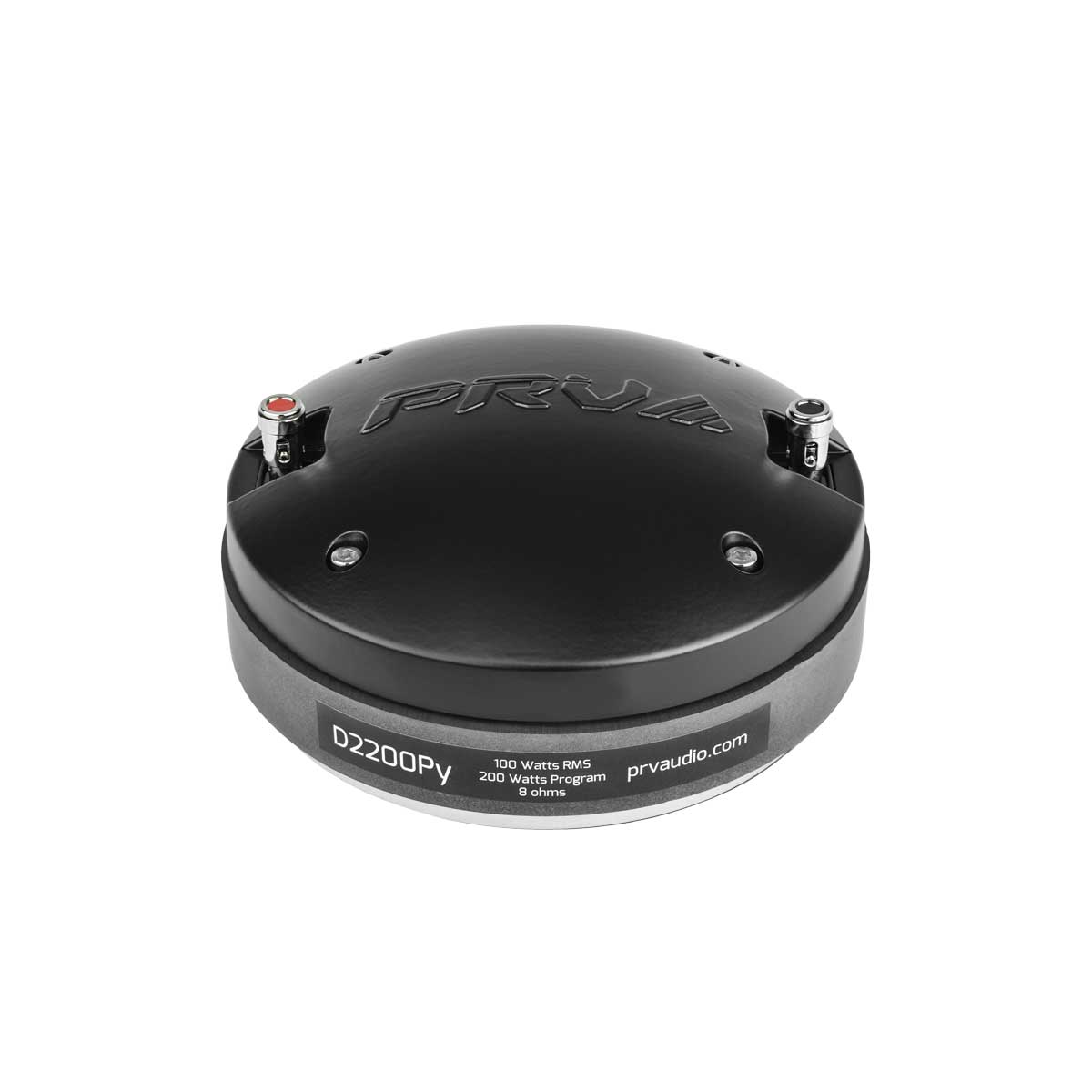

PRV AUDIO D2200Py 2" EXIT PRO AUDIO POLYIMIDE COMPRESSION DRIVER

  • $69.91
    Unit price per
  • Save $29.98

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

The D2200Py is a compact solution for mid-high vocal reproduction that offers high sensitivity and a pleasant sound from the polyimide diaphragm. Its high output and smooth mid range frequency response allow you to use this horn driver in almost any high output audio application for vocal reinforcement: PRO, Home, Car or PROAudioOnWheels® Audio Systems.

High output mobile audio enthusiasts choose the PRV Audio D2200Py for extreme SPL car audio competitions in South America, while DJs use it in high SPL speaker cabinets for entertaining crowds that number in the thousands.

8MR5000-NDY-V2---Highlight---4-and-8-Ohms

Highlights

  • Low mass CCAW voice coil and polyimide diaphragm for natural response
  • Designed for midrange and vocals from 500 to 7,000 Hz
  • High Output – 110 dB sensitivity
  • Compact driver design for easy front mount installation

The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. The Driver diameter measures only 5.24″ having a lot of clearance to fit inside of the 5.65″ baffle cut needed for our 2″ exit horns from the WGP14-50 Series.

Combining our company’s extensive experience, and its commitment to customer satisfaction we have created a compact yet very powerful driver that solves the critical component spacing and weight issue.


D2200Ph Trio By PRV

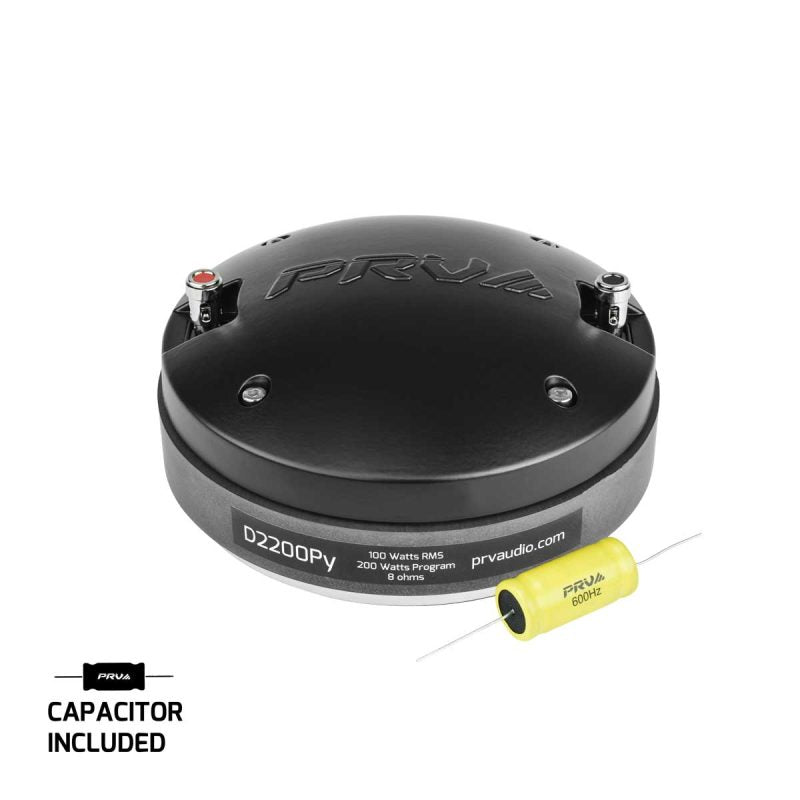

The polyimide diaphragm is attached to a 2″ diameter copper-clad aluminum wire with Kapton® former for a high 100 watts RMS power handling rating (when used with the recommended 500 Hz, 12 dB/octave high pass crossover). An amazing 110 dB of output with only 1 watt of input power (2.83V), when measured at one meter, allows the D2200Py to be used in even the loudest of environments! Mounting hardware is included with capacitor.

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter 2” (50 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 100 Watts
Program Power 200 Watts
Sensitivity 2.83V at 1m 110 dB
Recommended Hi Pass Crossover** **For Full Power Handling 500 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 500 – 7,000 Hz
Voice Coil Diameter 2” (51 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Polyimide
Flux Density 1.66 T
Magnet Material Ferrite

EXTRA INFO

Overall Diameter 5.24” (133 mm)
Overall Depth 2.58” (65.5 mm)
Mounting Bolt Circle M6 x 4 – 4” (101.6 mm)
Net Weight 6.39 lbs (2.9 kg)
Shipping Weight 6.61 lbs (3.0 kg)
Carton Dimensions W x L x H 5.71” x 5.71” x 3.93” (145 x 145 x 100 mm)
