PRV AUDIO D2500Py 2" EXIT PRO AUDIO POLYIMIDE COMPRESSION DRIVER
DESCRIPTION
- Product Overview
The D2500Py is a compact solution for mid-high vocal reproduction that offers high sensitivity and a crystal clear natural sound from the Polyimide diaphragm. Its high output and smooth mid range frequency response allow you to use this horn driver in almost any high output audio application for vocal reinforcement: PRO, high-end monitors, high output home audio speakers, Car or PROAudioOnWheels® Audio Systems.
Its Top-of-the-line polyimide compression horn driver is designed to offer unsurpassed natural upper midrange and high frequency response, with accuracy not found in most manufacturer’s stock PA speaker cabinets.

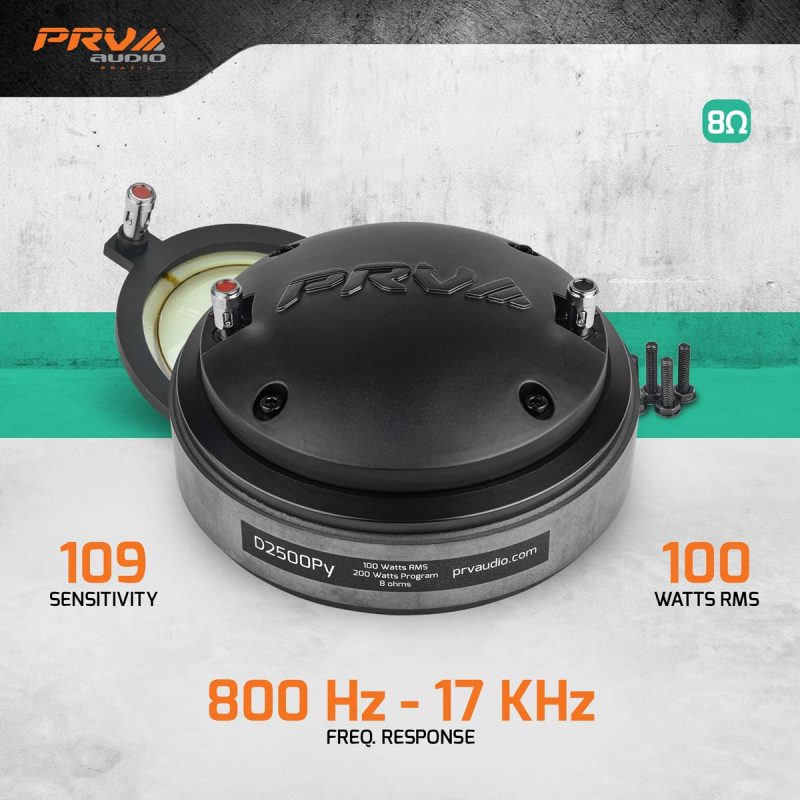

Highlights
- Low mass CCAW voice coil and PolyImide diaphragm for natural response
- Crystal clear natural sound with accuracy from 800 to 17,000 Hz
- High Output Sound – 109 dB sensitivity
- Compact driver design for easy front mount installation

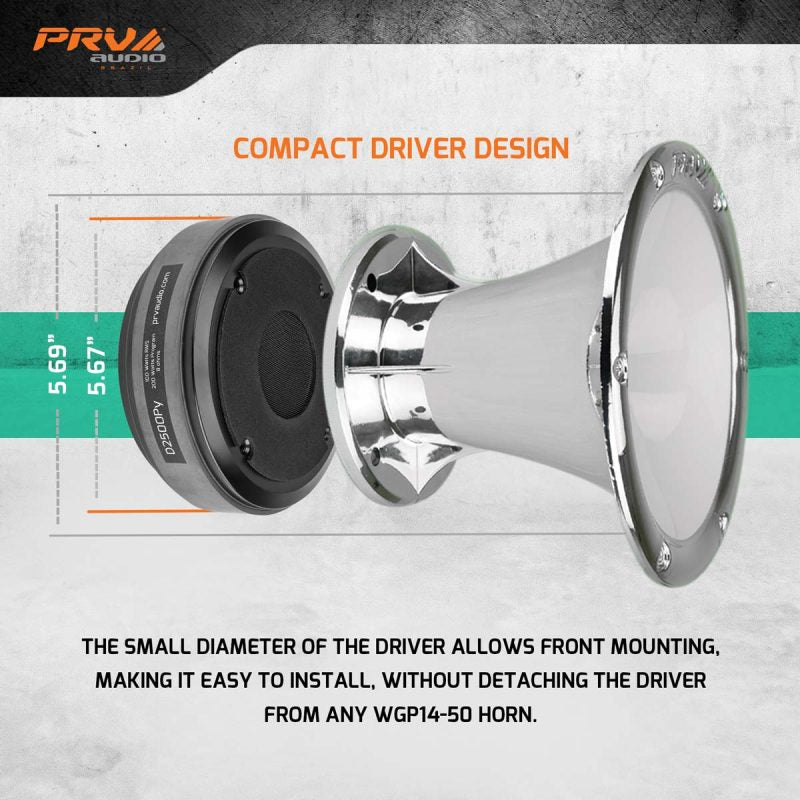

The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. The Driver diameter measures only 5.66″ having enough clearance to fit inside of the 5.69″ baffle cut needed for our 2″ exit horns from the WGP14-50 Series.
Combining our company’s extensive experience, and its commitment to customer satisfaction we have created a compact yet very powerful driver that solves the critical component spacing and weight issue.
The specially designed Polyimide diaphragm provides durability and additional damping for natural sound quality. PRV Audio combines this diaphragm with a high-energy motor for high output over the usable driver bandwidth for effortless, dynamic output, very popular with professional users as well as many discriminating “high efficiency” home audio enthusiasts.
This unique diaphragm is attached to a 2.5″ diameter copper-clad aluminum wire with Kapton® former for a high 100 watts RMS power handling rating (when used with the recommended 900 Hz, 12 dB/octave high pass crossover). An amazing 109 dB of output with only 1 watt of input power (2.83V), when measured at one meter, allows the D2500Py to be used in even the loudest of environments!

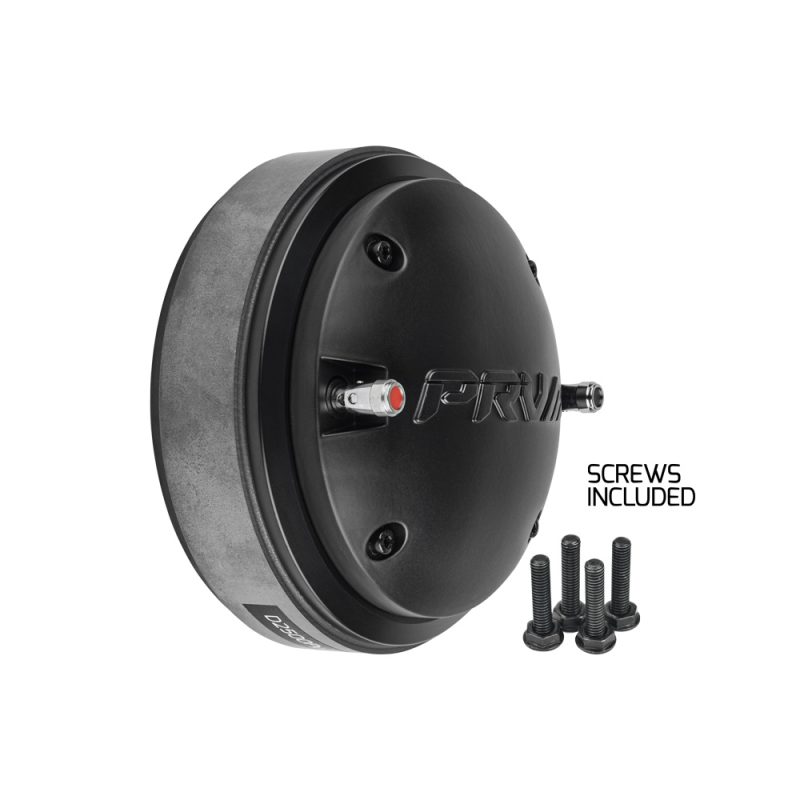

Mounting hardware is included.
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 100 Watts |
| Program Power | 200 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 900 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 800 – 17,000 Hz |
| Voice Coil Diameter | 2.5” (65 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Polyimide |
| Flux Density | 21.1 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 5.67” (144 mm) |
| Overall Depth | 3.01” (76.5 mm) |
| Mounting Bolt Circle | M6 x 4 – 4” (101.6 mm) |
| Net Weight | 8.82 lbs (4.1 kg) |
| Shipping Weight | 9.03 lbs (4.1 kg) |
| Carton Dimensions W x L x H | 5.83” x 5.83” x 3.34” (148 x 148 x 85 mm) |
