The SoundQubed Q4-150 is the most versatile amplifier in the lineup. You can use it to power the whole car stereo system, mids, highs and a subwoofer from one amplifier!

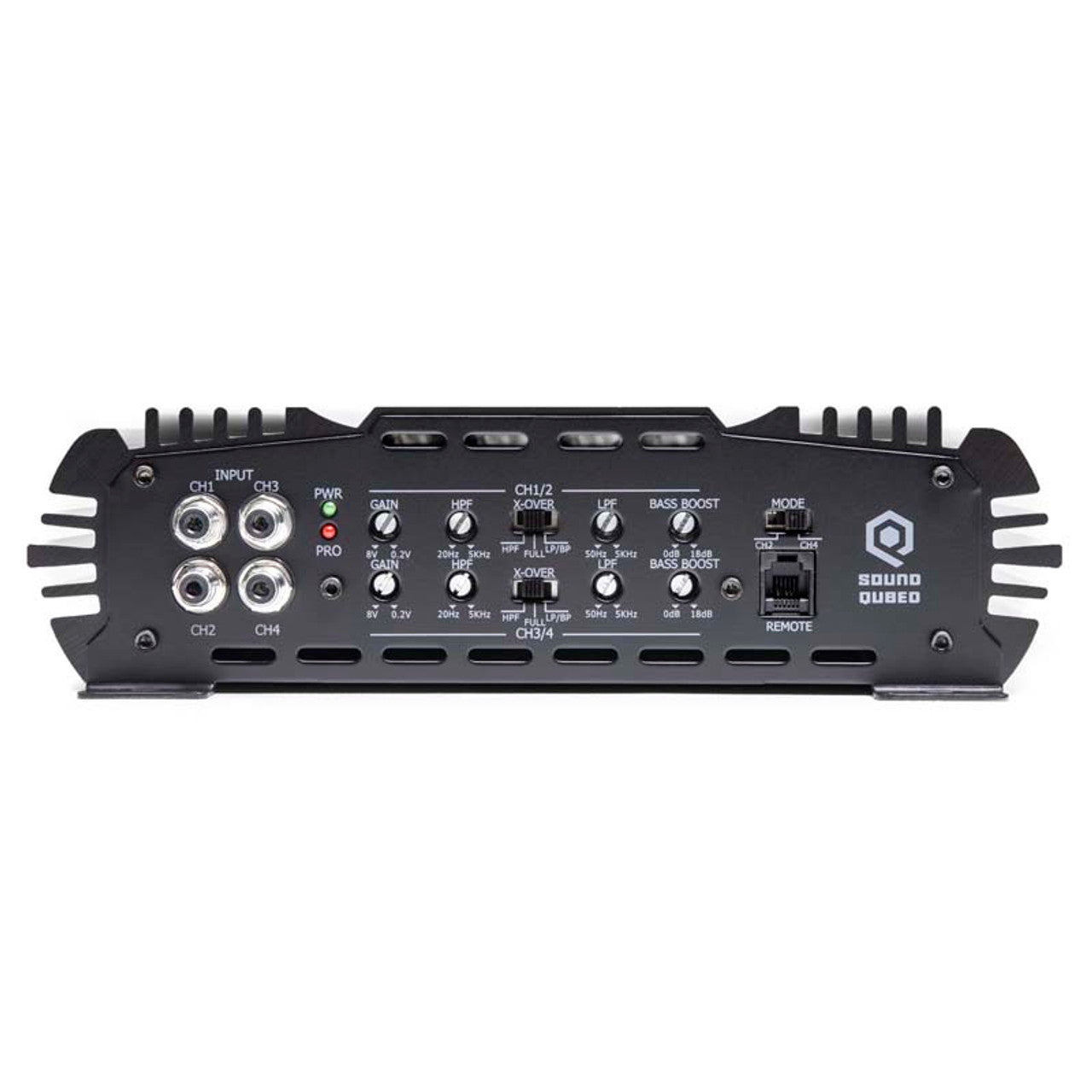

Featuring a four-channel class A/B output, the Q4-150 offers superb sound quality and enough power to drive arrays of speakers. Its variable high and low pass filters can be used in a bandpass configuration so you’re able to tune and define your sound.
If you’re driving subwoofers with this multiple channel amplifier, take advantage of the bass boost for a low end so thick you can eat it for dinner. The included remote gain control knob comes complete with a clipping indicator so you can keep an eye on your levels while your ears have fun absorbing the sounds.
The Q4-150 is stable at 2 Ohm in stereo and 4 Ohm in mono mode. Its bridge channels can send even more power to select speakers.

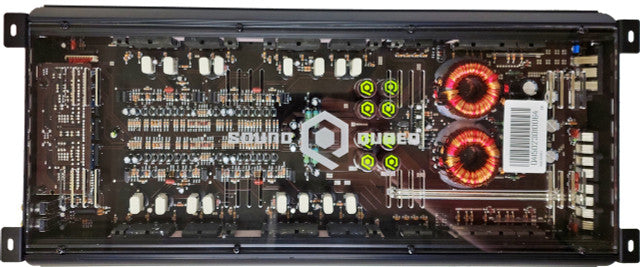

Four-way protection circuits and MOSFET switching devices are there to make sure you’re able to enjoy your Q4-150 for years to come.
| Model |
Q4-150 |
| Class |
Class A/B Amplifier
|
| Channels |
4 Channel |
| Working Voltage |
9V - 16V |
| Fuse Rating |
120A (external) |
| Power @ 4 Ohm 14.4V |
440 x 2 (Mono) Watts RMS |
| Power @ 2 Ohm 14.4V |
220 x 4 Watts RMS |
| Power @ 4 Ohm 14.4V |
150 x 4 Watts
|
| Frequency Response |
20 Hz - 30kHz |
| S/N Ratio |
105dB |
| Damping Factor |
Greater than 200 |
| Input Sensitivity |
.2V- 8V |
| High Pass Filter |
20Hz - 5kHZ |
| Low-Pass Filter |
50 Hz - 5kHz |
| Bass Boost |
0 - 18dB @ 45Hz |
| Dimensions in (LxWxH) |
22 x 9.5 x 2.63 |
| Dimensions MM (LxWxH) |
558.8 x 241.3 x 66.8 |
