Sparked Innovations Single 12VDC Voltmeter Battery Voltage Monitor

Product type: Volt Meter

Vendor: Sparked Innovations

Availability:

$9.99

Add to the wishlist

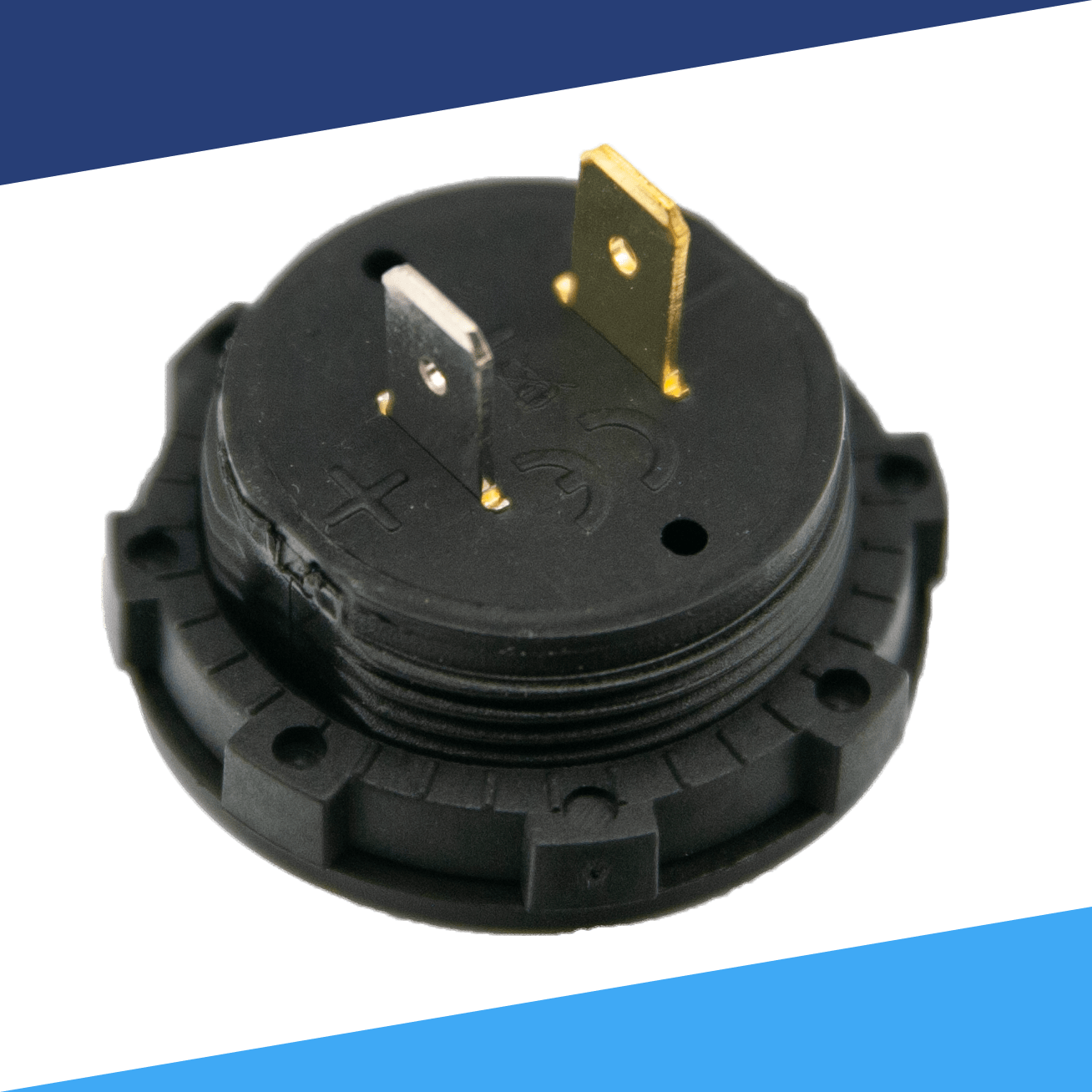

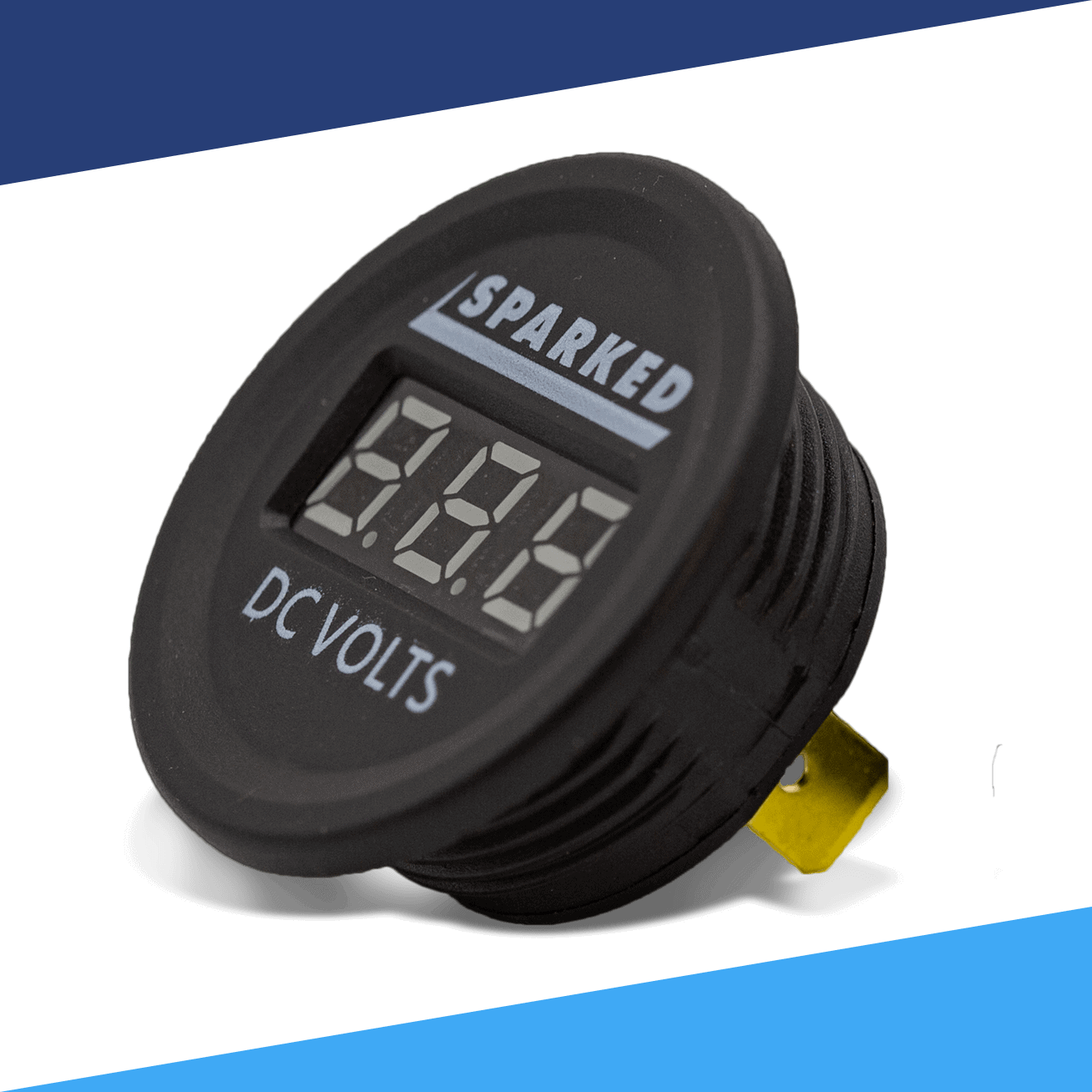

12VDC Voltmeter with LED display.
Universal for any 12-volt project. Easily fits in automotive or marine dash panels. Similar in size to an automotive cigarette lighter mounting hole. IP67 waterproof rating allows it to be used on motorcycles or boats to monitor battery voltage.  Circular housing makes it easy to mount.

Specifications

  • 5-30v DC operation range
  • 3 digit digital display
  • Anti-reverse, anti-short circuit protection
  • ABS and nylon housing. Impact resistant and IP67 rated for water submersion up to 1 meter
  • Operating temp -25~80C
  • Accuracy class 0.1
  • Mounting hole diameter – 29.2mm
  • Overall diameter – 36.5mm
  • Mounting depth – 31.5mm including terminals
  • Digit height – 8mm
