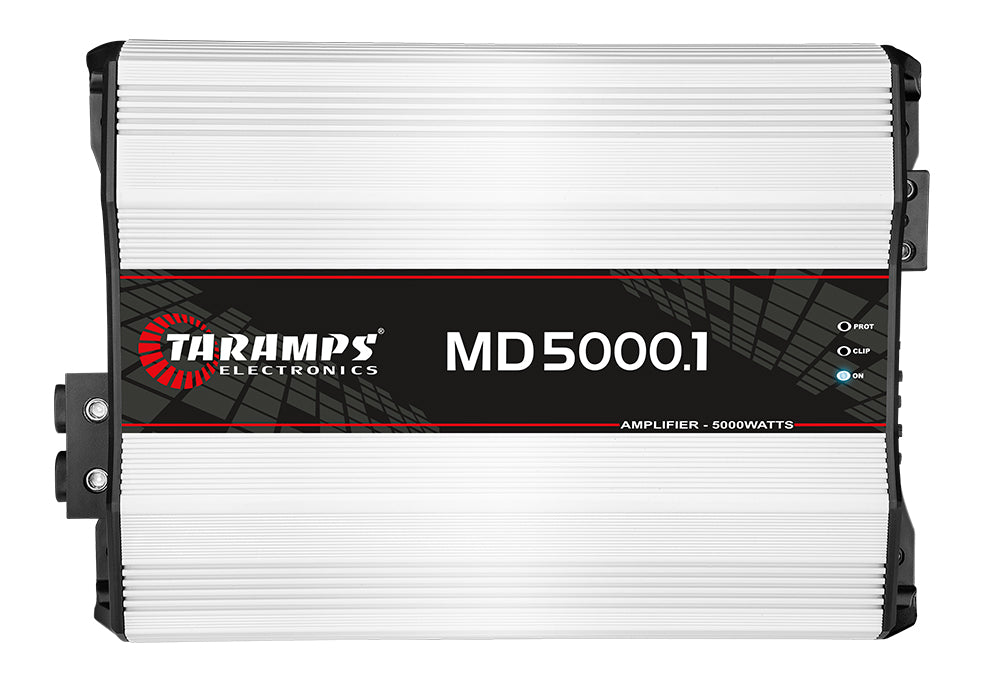

Taramps MD5000.1 5000 Watt Class D Amplifier
DESCRIPTION
The MD 5000.1 1 OHM amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a mono amplifier and its maximum power is 5000W RMS with 1 OHM impedance, and one 5000W RMS channel. The MD 5000.1 is FULL RANGE this way you appreciate all the frequencies in the right measure.
| Operation class | D |
|---|---|
| Number of Channels | 01 |
| Maximum power | @ 12,6 VDC - 1 OHM: 5000W RMS @ 12,6 VDC - 2 OHMS: 3200W RMS |
| Input Sensitivity | 220mV |
| Signal to Noise Ratio | >90dB |
| Frequency response | 10Hz ~ 10KHz (-3dB) |
| Crossover high pass (HPF) | 10Hz ~ 90Hz (-12dB/8ª) Variable |
| Crossover low pass (LPF) | 90Hz ~ 10KHz (-12dB/8ª) Variable |
| Bass Boost | 35Hz ~ 55Hz 0 ~ 10dB (50Hz) |
| Efficiency | 81% |
| Input Impedance | 15K Ohms |
| Output Impedance | 1 Ohm |
| Protection system | Short-Circuit to output, short on output compared to GND, low impedance at output, High/Low supply voltage and thermal protection |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | 1.20A |
| Maximum music consumption | 244.50A |
| Maximum consumption in sinusoidal signal | 489A |
| Dimensions (H x W x D) mm | 8.98" x 2.76" x 12.87" |
| Weight | 9.28lb |
