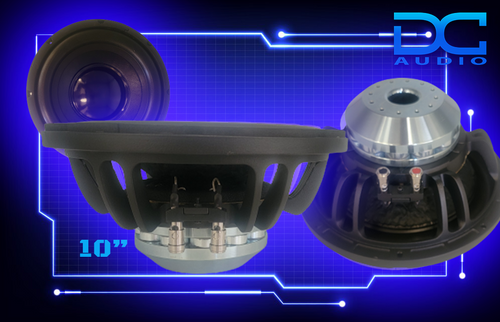

DC Audio NEO MB-LF Pro Audio Speaker

Key Features

DC Audio 8 or 10" Pro Audio Neo Midbass Speaker

NEO FEA Optimized Motor with Pole vent  & Radial Coil rear vents

Paper SQ Cone for warm mid-bass

Linear moving high strength foam surround

SVC made of  CCAW

4 ohms impedance

Cast Frame

Sold in Individuals



MB - NEO 8" 10"
Mounting Depth 4" 4.25"
Mounting Hole Diameter 7.3" 9.1"
Outside Driver Diameter 8.25" 10.25"
VC Diameter 2.0" 2.5"
Displacement .1ft³ .1 ft³
Power Handling rms/peak 300/600 400/800
Ohm Options SVC-4 SVC-4
Sd 197 cm² 324.29 cm²
Vas 7.10 L 10.83 L
Cms 0.127 Mm/n 0.072 Mm/n
Mms 51.72 g 84.38 g
Fs 61.92 Hz 64.33 Hz
Bl 14.67N/A 17.57N/A
Re 3.5 Ohm 3.7 Ohm
Le 0.96 mH 1.27 mH
Qms 4.21
3.27
Qes 0.328 0.41
Qts 0.304 0.369
Xmax N/A N/A
Ref SPL @1 watt 88.85 db 90.15 db
Suggest Sealed Box N/A N/A
Suggested Ported Box .5 ft³ 1.00 ft³

** These Speakers are for High Output Applications and 99% of the time require custom installations or modifications to fit the Massive Motor and Frame used for the Pro Audio Line up
