Product highlights:
General Features:

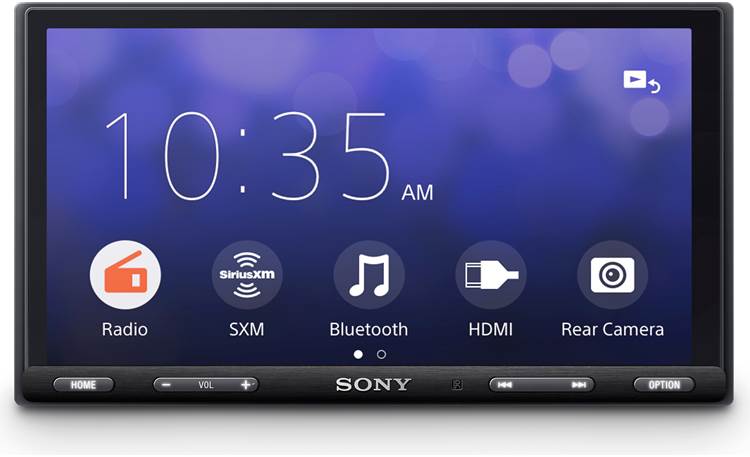

- digital multimedia receiver with AM/FM tunerĀ (does not play CDs)
- 6.95" capacitive bezel-less touchscreen
- Bluetooth hands-free calling and audio streaming
Smartphone Features (see Details for info on compatibility with specific smartphones and apps):
- Apple CarPlay and Android Auto compatible
- WebLink for additional app access with Android and iOS
Audio/video Features:
- plays MP3, WMA, AAC, and FLAC music files
- 10-band graphic equalizer
- high- and low-pass filters
- Extra Bass for more refined low-frequency boost
- Dynamic Stage Organizer for improving stereo image
Expandability:
- works with SiriusXM SXV300 tuner
- inputs: two rear USB ports, HDMI input, rear-view camera input
- outputs: 5-channel preamp outputs (5-volt front, rear, mono sub)
Other Information:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in internal amp (20 watts RMS CTA-2006/55 peak x 4 channels)
- wireless remote
- compatible with most factory steering wheel audio controls (adapter required)
- super-fast start up time
- warranty: 3 years
- Our 60-day money-back guarantee
- MFR # XAV-AX5600
What's in the box:
Sony XAV-AX5600 owner's manual
- Digital multimedia receiver (10A fuse)
- Wiring harness (attached 6.5' parking brake wire)
- 3-Wire to 3.5mm SWC adapter
- Remote control (RM-X170)
- CR2025 3V battery (installed in remote)
- 52" USB extension cable
- Microphone w/ visor bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
- surface-mount bracket
- Two-sided tape
- Wire-tie
- Hook-and-loop strap
- Four M5x6mm ISO-screws
- Operating Instructions
| Expandability | ||
|---|---|---|
| AUX Input | No | |
| Audio/video Input | HDMI (rear) | |
| USB Input | Rear (2) | |
| Backup Camera Input | Yes | |
| Second Camera Input | No | |
| CarPlay | Yes | |
| Android Auto | Yes | |
| Siri Control | Yes | |
| Alexa Voice Control | N | |
| Android Control | Yes | |
| Memory Card Slot | USB memory | |
| Bluetooth Compatible | Built-in | |
| Satellite Radio Ready | SiriusXM | |
| HD Radio | No | |
| Navigation | Optional | |
| iPod Compatibility | ||
| Full size | No | |
| Nano | No | |
| Touch | No | |
| iPhone | 5 and up | |
| General | ||
| RMS Power (CTA-2006) | 20 watts | |
| RMS Power (Manufacturer) | 20 watts | |
| Peak Output | 55 watts | |
| RMS Power Bandwidth | 20-20kHz | |
| Preamp Outputs | 5-channel | |
| Sub Preamp Outputs | Yes | |
| Switchable Rear Preamp Outputs | No | |
| Video Screen | Yes | |
| Navigation App Compatible (iOS) | Apple, Google, Waze | |
| Navigation App Compatible (Android) | Google, Waze | |
| Preamp Voltage | 5 volts | |
| Screen Size | 6.95 | |
| Display Color | ||
| Key Button Color | White | |
| EQ Bands | 10 | |
| Wireless Remote | Yes | |
| Steering Wheel Control Compatible | Adapter required | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
| Tuner | ||
| FM Sensitivity | 7 dBf | |
| European Tuning | No | |
| Seek/Scan | Seek | |
| Radio Data System | Yes | |
| File Playback | ||
| Music File Playback | MP3,WMA,AAC,FLAC,WAV | |
| High-res Playback | N | |
| Second Camera Input Lane Watch | N | |
| Shipping | Most items ship within 1ā3 business days. Delivery time varies by item, vendor, and destination. |
