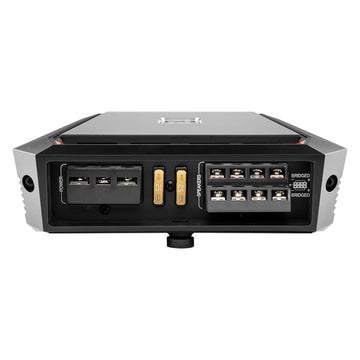

DS18 GEN-X Full-Range Class Ab 4-Channel Amplifier 1600 Watts

Product type: 4 Channel Amplifier

Vendor: DS18

Availability:

$159.95

Add to the wishlist

Specifications

The DS18 Gen-X series of amps are very durable and provide maximum wattage for your budget. These stylish amps will fit just about anywhere and supply all the power you need with great efficiency. Top of the line internal technologies assure you are getting the best amp your money can buy with parts manufactured by DS18. The amps efficiency is so high that you can install multiple amps without the worry of having to install a high output alternator as well. We developed these amps with the customer in our minds and what the enthusiast would want, so here DS18 brings you all the versions of the Gen-X!


Download Manual


Specifications
Model: GEN-X1600.4
Number of Channels: 4
Frequency Response: 20Hz - 20KHz
Max Power: 1600W
2 Ohm RMS Power (14.4V) Per Channel: 4 x 120W
4 Ohm RMS Power (14.4V) Per Channel: 4 x 80W
4 Ohm RMS Power Bridge (14.4V) Per Channel: 2 x 200W
Speaker Impedance Range: 2-8 Ohm
Input Sensitivity: 0.2V-+6V
Low Pass Filter: 50Hz - 500Hz
High Pass Filter: 50Hz - 500Hz
Fuse Size: 2 x 25A
Signal-to-Noise Ratio: 98dB
THD: 0.01%
Product Dimensions (L x W x H): 430 x 190 x 55mm
